Cone Ring Pin, Nut and Rubber Assemblies, Suits KX030 to KX042

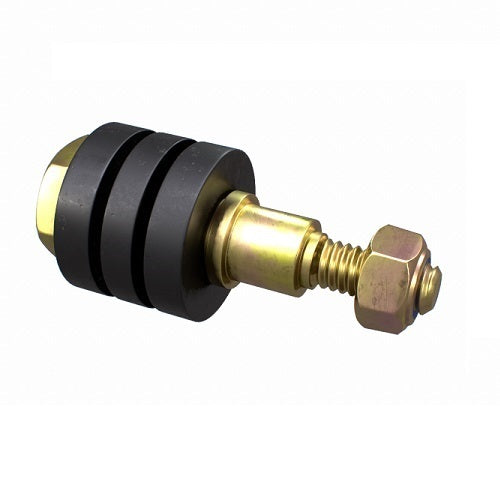

Replacement pin, nut and rubber assemblies for cone ring couplings, in sizes No. 2 to No. 5, covering coupling sizes KX030 to KX150. Each assembly is a pin and nut with its rubber rings, so you can renew the flexible elements in one step.

In a cone ring coupling the rubber rings are mounted on steel pins and absorb misalignment, shock and vibration. The rings and pins can be removed and changed without taking the coupling off the shafts, and no lubrication is needed.

Where this product is used

• Renewing worn cone ring elements on a coupling that is still in place
• Planned maintenance spares for pumps, fans, crushers and conveyors
• Stock for a plant with several cone ring couplings of one size

Features

• Fits cone ring coupling sizes KX030 to KX150
• Grouped by cone ring number, No. 2 to No. 5
• Pin size and the number of pins and rubbers per coupling listed for every group
• Elements change without removing the coupling from the shafts

Key specifications

Sizes available

Selecting and fitting

Choose by coupling size. The cone ring number groups several coupling sizes: No. 2 covers KX030 to KX042, No. 3 covers KX048 to KX070, No. 4 covers KX075 to KX105 and No. 5 covers KX120 to KX150. KX020 uses No. 1 and KX170 uses No. 6.

The number of pins and rubbers per coupling is listed in the table, so you can work out how many to order for one coupling. Replace the rubbers as a full set.

Isolate the drive before you work on the coupling. Replace worn rubbers as a set, and check that the pins and nuts are tight when the coupling is reassembled.

Dimensions are as listed in the manufacturer catalogue and are for reference. Contact AIMS to confirm a measurement if it is critical to your application.
