Mitutoyo 0 to 1" IP65 Digimatic Micrometer, SPC

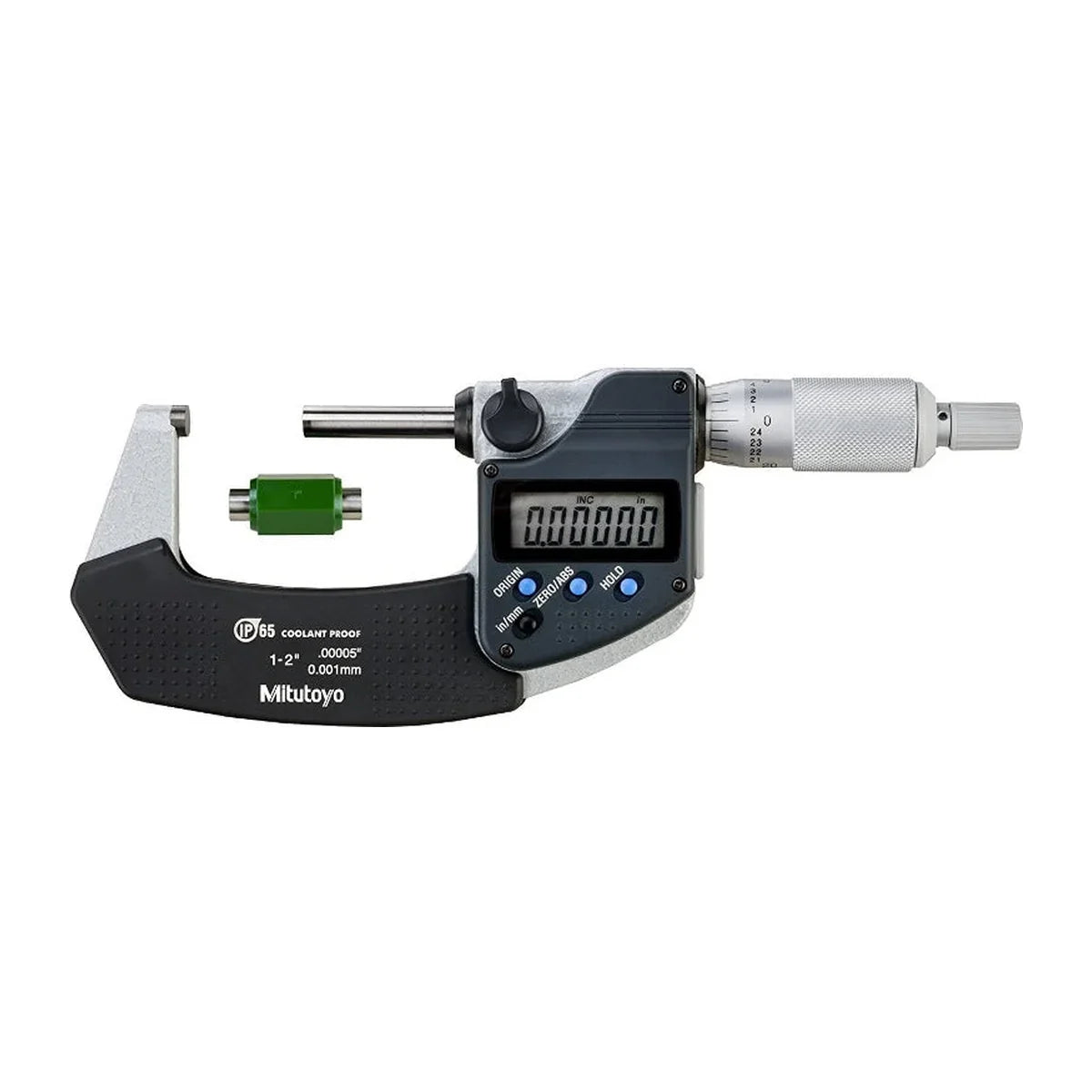

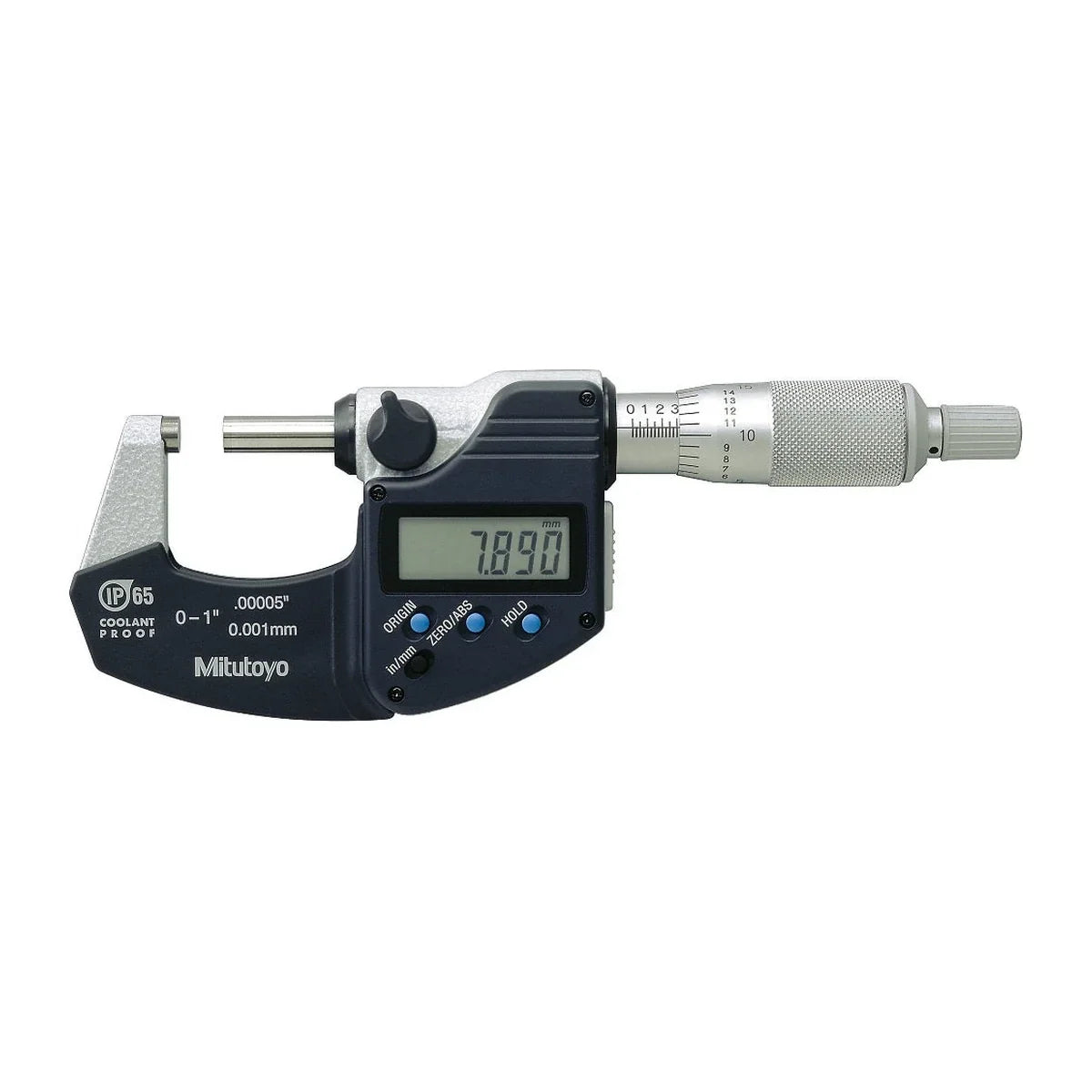

The Mitutoyo Series 293 Coolant Proof Micrometer is a digital outside micrometer for machine shops that run cutting oil and coolant. This version reads in inches or millimetres and has SPC data output. It reads to .00005" or 0.001mm and comes in three sizes: 0 to 1", 1 to 2" and 2 to 3". The measuring faces are carbide tipped.

Resolution is the smallest step the display shows, and accuracy is a separate figure. Accuracy is ±.00005" on the 0 to 1" and 1 to 2" sizes. IP65 is a dust and water rating. It lets you use the micrometer where cutting oil is present, and asks you to apply anti-corrosion treatment after use. SPC output is a data port. With an optional cable it sends readings to a computer or data logger. The cable (05CZA662 at 1m or 05CZA663 at 2m) is not included. The 0 to 1" and 1 to 2" sizes come with a certificate of inspection, which is not the type used to obtain calibration certificates.

Where this product is used

• Machine side measuring in inches or millimetres in coolant
• Quality control checks where results are logged to a computer
• Toolroom and inspection work to .00005"

Features

• IP65 dust and water protection for use where cutting oil is present, with anti-corrosion treatment after use
• Carbide-tipped measuring faces with a micro-lap finish
• Digital display with 7.5mm characters, hold, zero and origin functions and auto power-off
• Heat shield in the frame to keep accuracy over long measuring sessions
• Oil-resistant plastic parts and a non-slip frame surface
• Spindle lock and a ratchet for a repeatable measuring force
• SR44 battery with a life of about 2.4 years under normal use
• Supplied in a fitted case, with a setting standard on sizes above 0 to 25mm
• SPC output with optional cable 05CZA662 (1m) or 05CZA663 (2m) sold separately

Key specifications

Supplied with

• Micrometer
• SR44 battery
• Spanner
• Setting standard on the 1 to 2" and 2 to 3" sizes
• Certificate of inspection on the 0 to 1" and 1 to 2" sizes
• Fitted case
• Not included: SPC cable 05CZA662 (1m) or 05CZA663 (2m), sold separately
