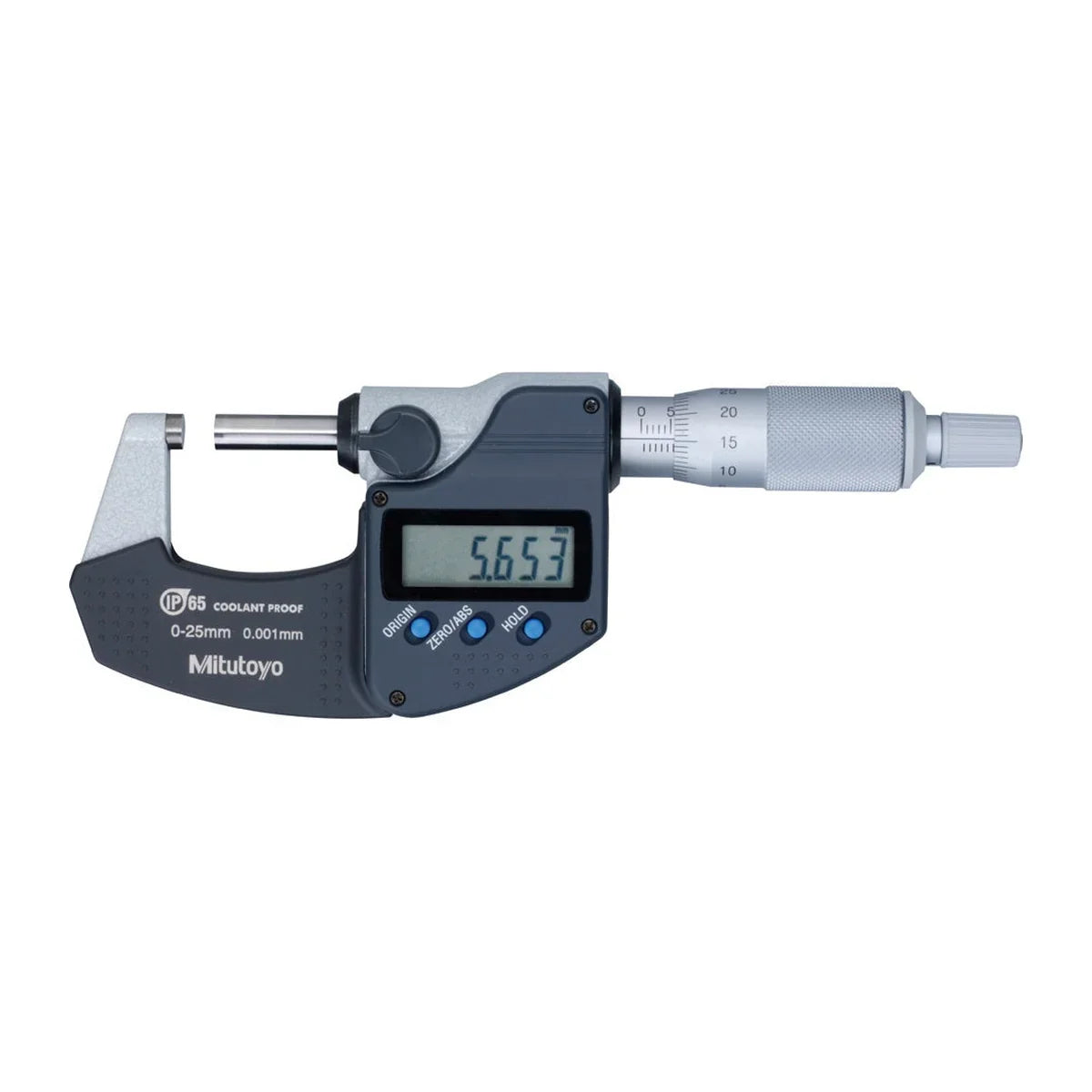

Mitutoyo 0 to 25mm IP65 Digimatic Micrometer

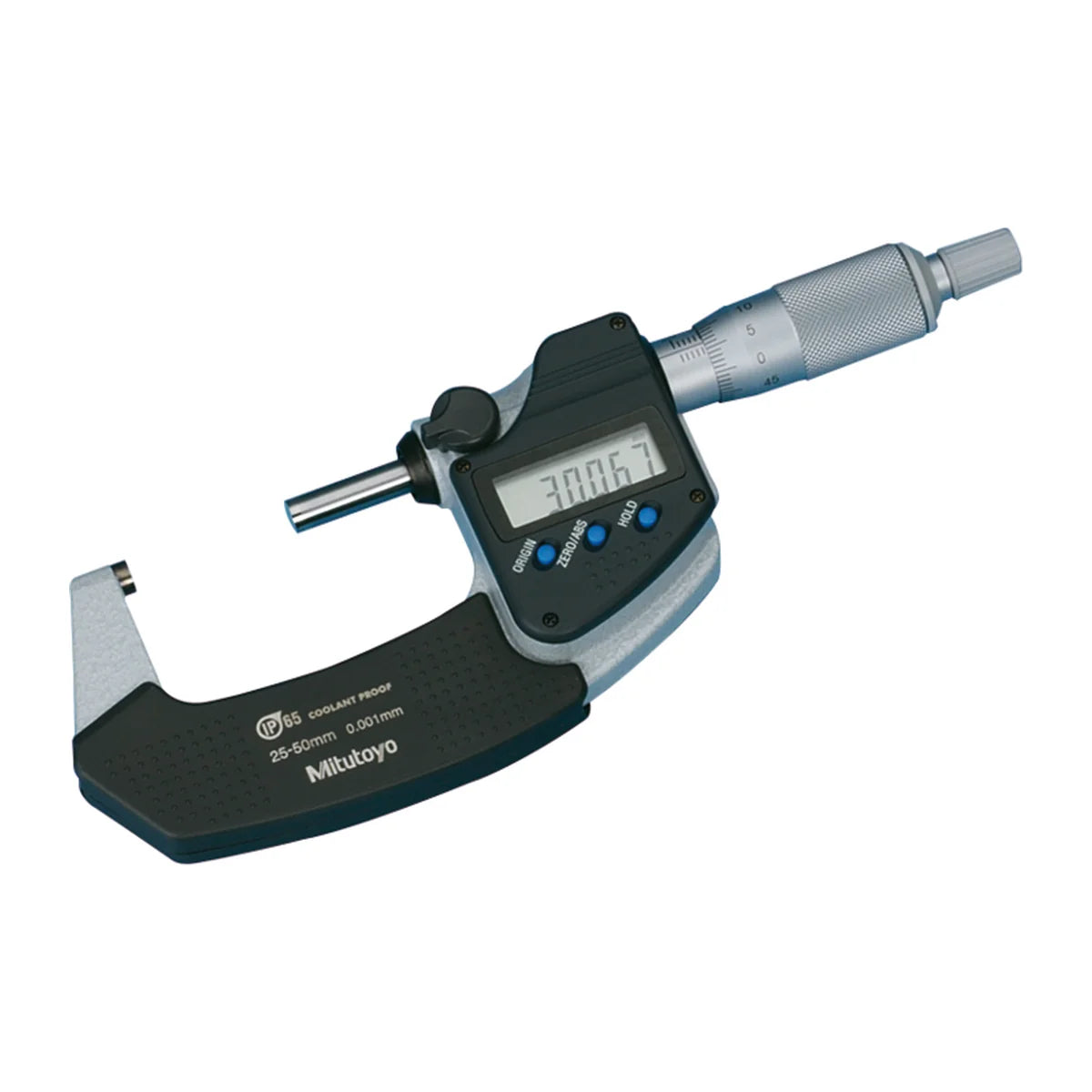

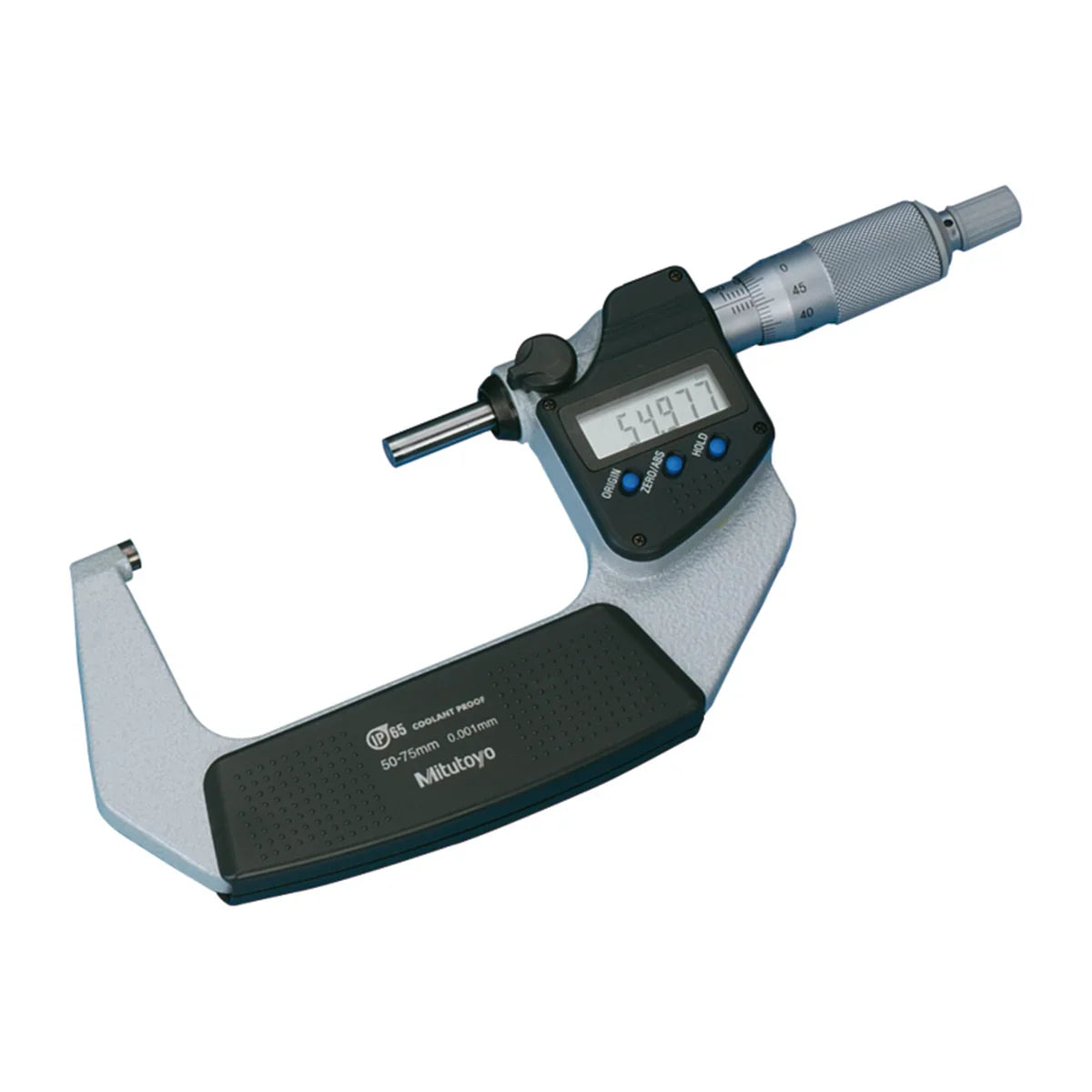

The Mitutoyo Series 293 Coolant Proof Micrometer is a digital outside micrometer for machine shops that run cutting oil and coolant. This version is metric with no data output. It reads to 0.001mm and comes in four sizes: 0 to 25mm, 25 to 50mm, 50 to 75mm and 75 to 100mm. The measuring faces are carbide tipped.

Resolution is the smallest step the display shows, and accuracy is a separate figure. Accuracy is ±1µm on the 0 to 25mm and 25 to 50mm sizes and ±2µm on the 75 to 100mm size. IP65 is a dust and water rating. It lets you use the micrometer where cutting oil is present, and asks you to apply anti-corrosion treatment after use. The 0 to 25mm and 25 to 50mm sizes come with a certificate of inspection, which is not the type used to obtain calibration certificates. If you want to log readings, choose the version with SPC output.

Where this product is used

• Machine side measuring of shafts and diameters in coolant
• Toolroom and inspection work to 0.001mm
• Workshop checks where readings are written down by hand

Features

• IP65 dust and water protection for use where cutting oil is present, with anti-corrosion treatment after use
• Carbide-tipped measuring faces with a micro-lap finish
• Digital display with 7.5mm characters, hold, zero and origin functions and auto power-off
• Heat shield in the frame to keep accuracy over long measuring sessions
• Oil-resistant plastic parts and a non-slip frame surface
• Spindle lock and a ratchet for a repeatable measuring force
• SR44 battery with a life of about 2.4 years under normal use
• Supplied in a fitted case, with a setting standard on sizes above 0 to 25mm
• No data output on these order numbers

Key specifications

Supplied with

• Micrometer
• SR44 battery
• Spanner

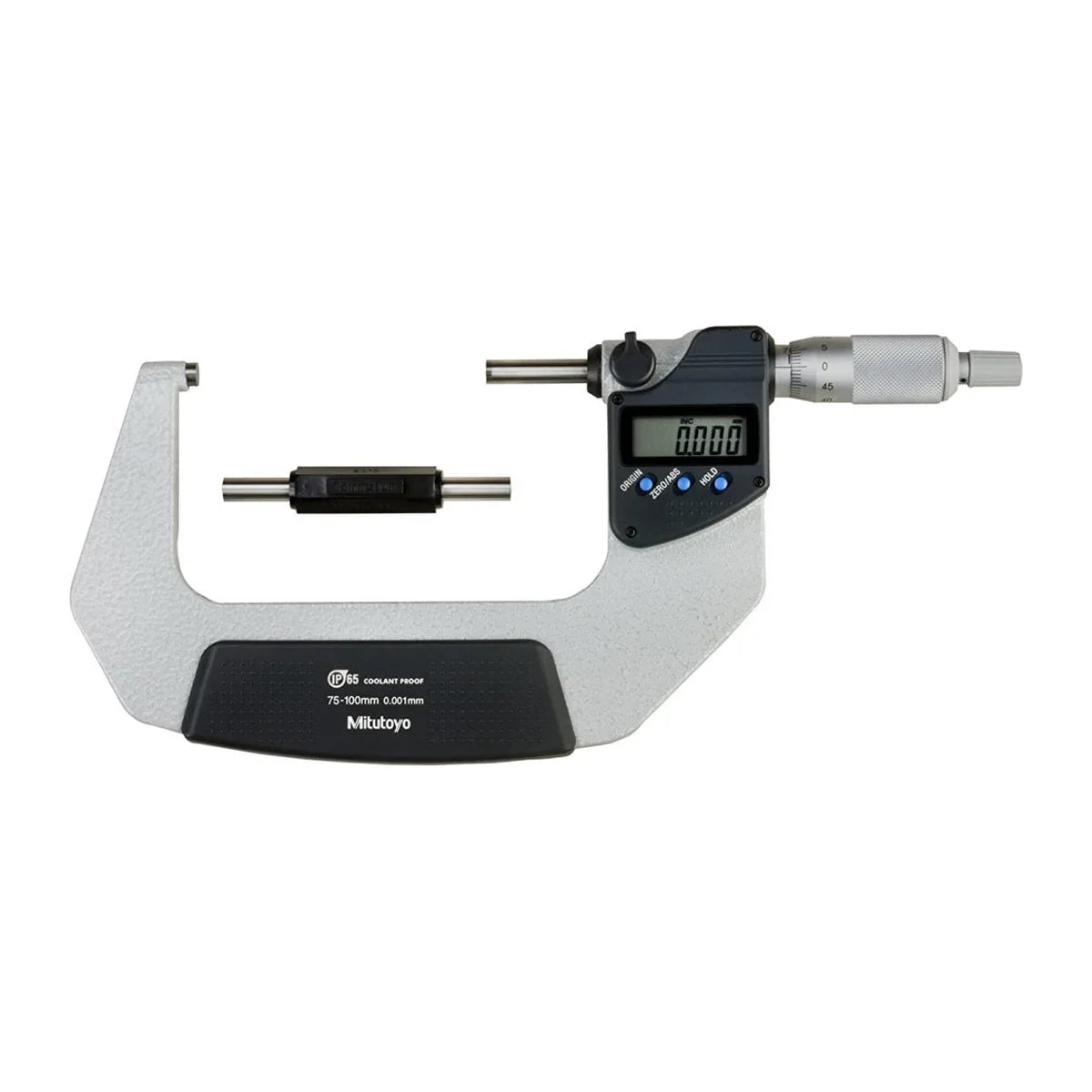

• Setting standard on the 25 to 50mm, 50 to 75mm and 75 to 100mm sizes
• Certificate of inspection on the 0 to 25mm and 25 to 50mm sizes
• Fitted case
