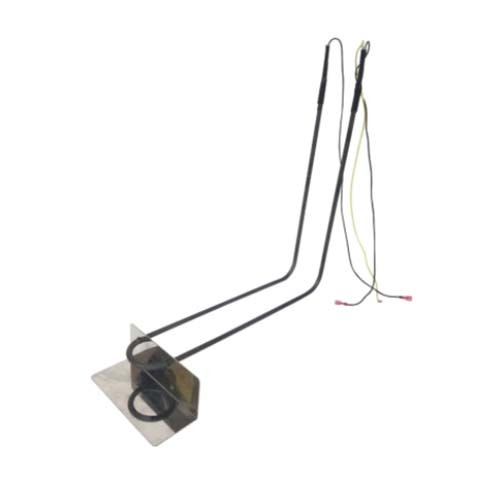

CRC SmartWasher Heater for SW-23, 1285-HTRMW
Available
This is the CRC SmartWasher heater for the SW-23, part 1285-HTRMW-220. CRC's SW-23 operating manual lists it as 'Heater for SW-23'.
The complete heater box assembly (box, heater and probe) is a separate CRC part, 4145-HBAYM-220. The part code ends in -220, and CRC prints no wattage or dimensions for the heater.
Features
- Listed by CRC as 'Heater for SW-23' (1285-HTRMW-220)
- Listed for the SW-23 only: the SW-25 and SW-28 manuals list 1290-HTRUN-220, and the SW-37 manual lists heater assembly 4050-HTASY-220
- Complete heater box assembly 4145-HBAYM-220 includes box, heater and probe
- Part code ends in -220
- Supplied as one part (each)
Key specifications
| Specification | Detail |
|---|---|
| Part as named by CRC | Heater for SW-23 |
| Fits | SmartWasher SW-23 Mobile Parts/Brake Washer |
| CRC part number | 1285-HTRMW-220 |
| Voltage | 220, from the part code suffix; CRC prints no wattage |
| Complete assembly | 4145-HBAYM-220 Heater Box Assembly (includes: box, heater, and probe) |
| Supplied as | Each |
| Dimensions | Not stated in CRC documents |
| Source | CRC SmartWasher SW-23 operating manual (SWM23 2020/AU), SW-25 operating manual (SWM25 2020AU), SW-28 operating manual (SWM28 2020AU), SW-37 operating manual (SWM37 2020AU) and CRC SmartWasher product catalogue Rev 05/21 |
Selecting the right option
CRC's SW-25 and SW-28 manuals list CRC SmartWasher 1290-HTRUN-220 Heater 220v For SW-25/28/25C; the SW-37 manual lists CRC SmartWasher 4050-HTASY-220 Heater Assembly For SW-37 220v. The complete SW-23 assembly is CRC SmartWasher 4145-HBAYM-220 Heater Box Assembly 220v For SW-23.
Using it
CRC's catalogue gives a thermostat range of 40 to 46 °C. CRC's SW-23 manual says the fluid temperature is factory-set to 40 °C or 46 °C (±1 °C), and that the heater shuts off while the Add Fluid light is on until a full 20 L container of OzzyJuice is added.
Limits and safety
CRC does not give a wattage or dimensions for this heater and its manuals give no replacement steps. It is listed for the SW-23 only, so confirm the model before ordering.
Frequently asked questions
Which SmartWasher uses the 1285-HTRMW-220 heater?
The SW-23. The SW-23 manual lists it as 'Heater for SW-23'. The SW-25 and SW-28 manuals list 1290-HTRUN-220, and the SW-37 manual lists heater assembly 4050-HTASY-220.
Does this heater come with the box and probe?
No. CRC lists the complete heater box assembly (box, heater and probe) separately as 4145-HBAYM-220.
What temperature does the SW-23 heat the fluid to?
CRC's SW-23 manual says the fluid temperature is factory-set to 40 °C or 46 °C (±1 °C); CRC's catalogue gives a thermostat range of 40 to 46 °C.
Related products
See also: CRC SmartWasher 4145-HBAYM-220 Heater Box Assembly 220v For SW-23, CRC SmartWasher 1270-PROBE Probe Plastic Gray 25/28/28XE/23, CRC SmartWasher 1278-FUSEH-220 Fuse - 6.3 Amp Ceramic For 220v Heater, CRC SmartWasher 1290-HTRUN-220 Heater 220v For SW-25/28/25C, CRC SmartWasher 4050-HTASY-220 Heater Assembly For SW-37 220v.
