Finer Power curved Jaw Coupling Element, GE19 / 98 Shore Red
Available
These are replacement elements for curved jaw couplings, in sizes GE19 to GE90, in two hardnesses: 92 Shore A (yellow) and 98 Shore A (red). The element sits between the curved jaws of the two hubs, takes up shock and vibration, and is the part that wears.
In every size the red 98 Shore An element has a rated torque above that of the yellow 92 Shore An element.
Where this product is used
- Motor to pump, fan and blower connections
- Gearbox and conveyor drives
- Compressor and generator sets
- General machinery drives with shock loading
- Replacing worn elements on a curved jaw coupling
Features
- Elements for curved jaw coupling sizes GE19 to GE90
- Two hardnesses: 92 Shore A yellow and 98 Shore A red
- Rated torque for every size and colour
- Maximum speed for every size
- Fits the pilot bore and taper lock curved jaw coupling hubs of the same size
Key specifications
| Specification | Detail |
|---|---|
| Sizes | GE19 to GE90 (10 sizes, 20 models) |
| Hardness and colour | 92 Shore A yellow, 98 Shore A red |
| Rated torque, 92 Shore A | 10 to 2,400 Nm |
| Rated torque, 98 Shore A | 17 to 3,600 Nm |
| Maximum speed | 3,750 to 19,000rpm |
Sizes available
| Size | Max rpm | Torque, 92 Shore A yellow (Nm) | Torque, 98 Shore A red (Nm) |
|---|---|---|---|
| GE19 | 19,000 | 10 | 17 |
| GE24 | 14,000 | 35 | 60 |

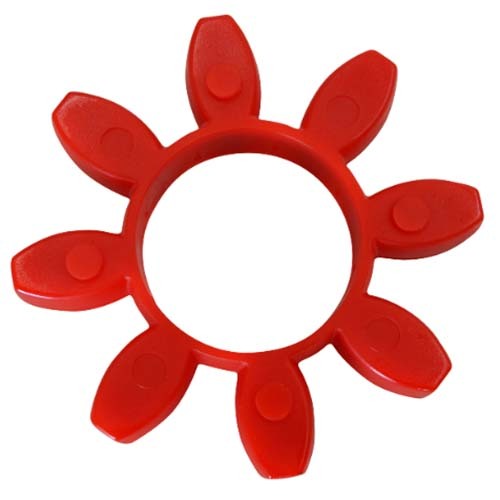

| GE28 | 11,800 | 95 | 160 |
| GE38 | 9,500 | 190 | 325 |
| GE42 | 8,000 | 265 | 450 |
| GE48 | 7,100 | 310 | 525 |
| GE55 | 6,300 | 410 | 685 |
| GE65 | 5,600 | 625 | 940 |
| GE75 | 4,750 | 1280 | 1920 |

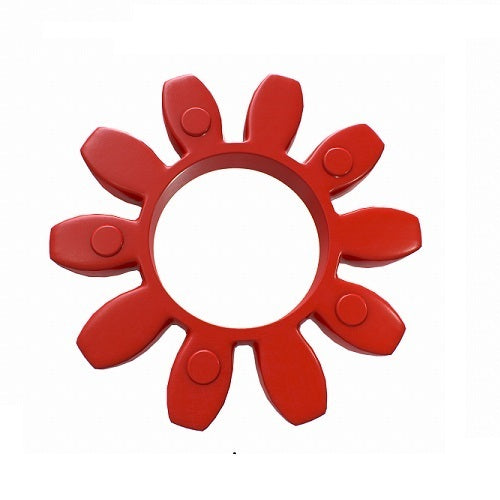

| GE90 | 3,750 | 2400 | 3600 |
Choosing the right option
Choose the element by coupling size, then by hardness. Pick the 98 Shore A red element when the drive needs the larger rated torque for the size, and the 92 Shore A yellow element when the rated torque for yellow is enough. Both fit the same hubs, so the hardness can be changed at a service.
Hubs are on Curved Jaw Coupling Stepped Half, Pilot Bore, Curved Jaw Coupling Full Half, Pilot Bore, Curved Jaw Coupling Flange Taperlock Half and Curved Jaw Coupling Hub Taperlock Half.
Replace a worn or cracked element before it lets the jaws touch. Isolate the drive before working on the coupling. Align the two shafts as closely as you can before fitting the coupling, and check the alignment again once the coupling is fitted. Good alignment gives the longest life, whatever the coupling type.
| Option | Part number | SKU |
|---|---|---|
| GE19 / 98 Shore Red | 19-RED | A0112383 |

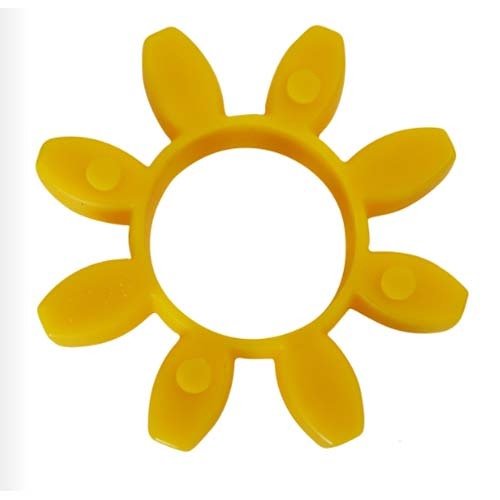

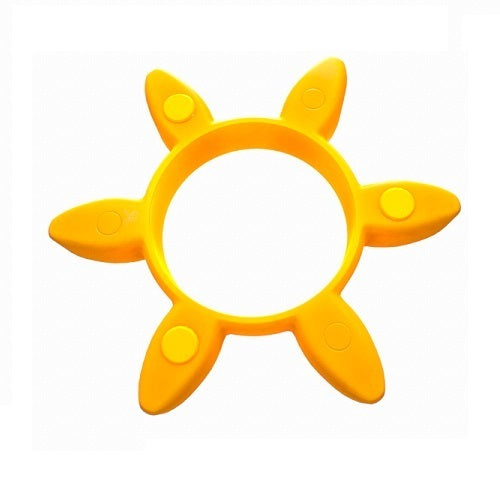

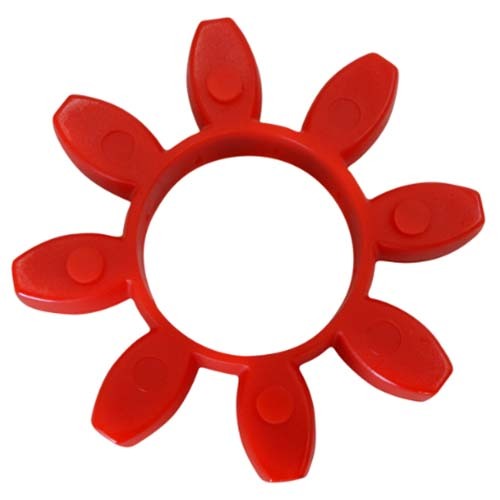

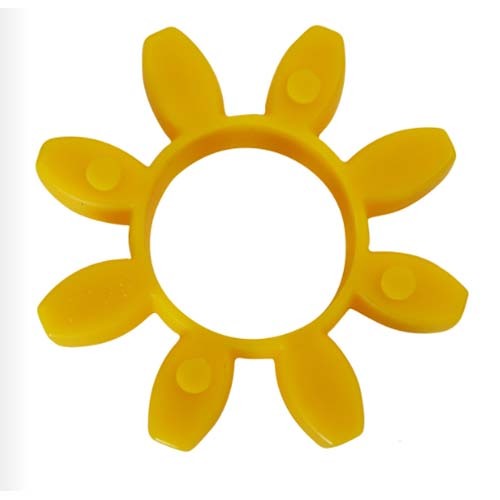

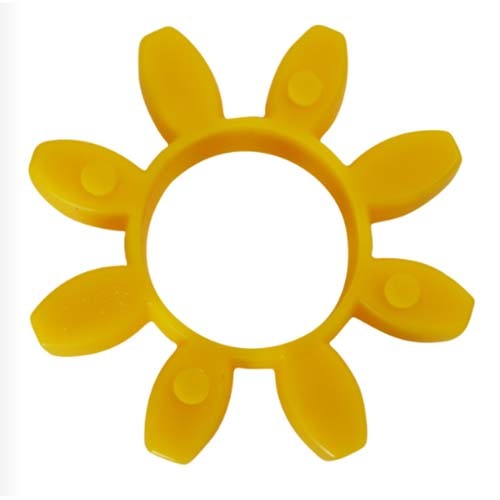

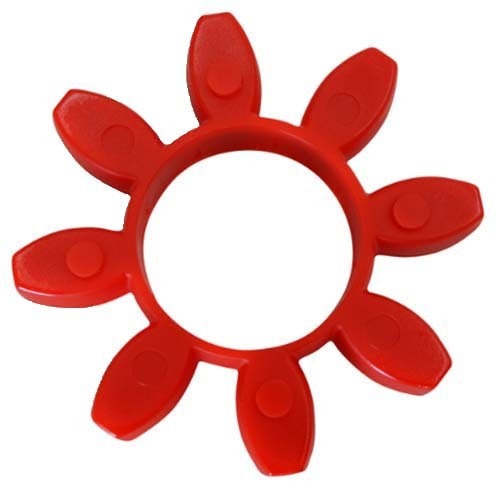

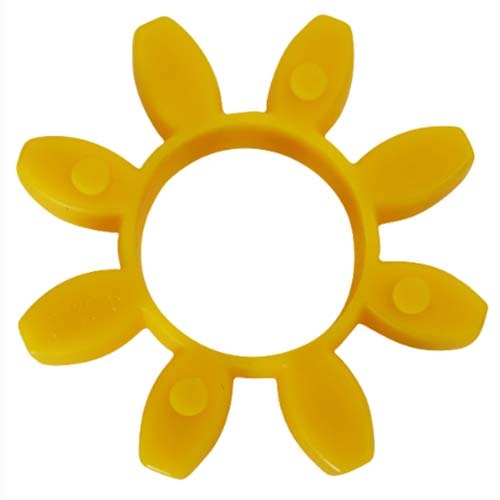

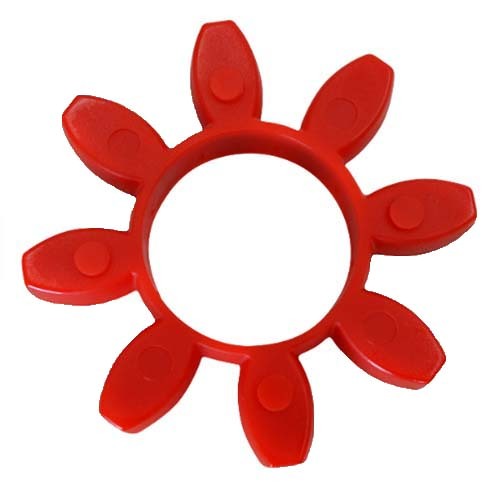

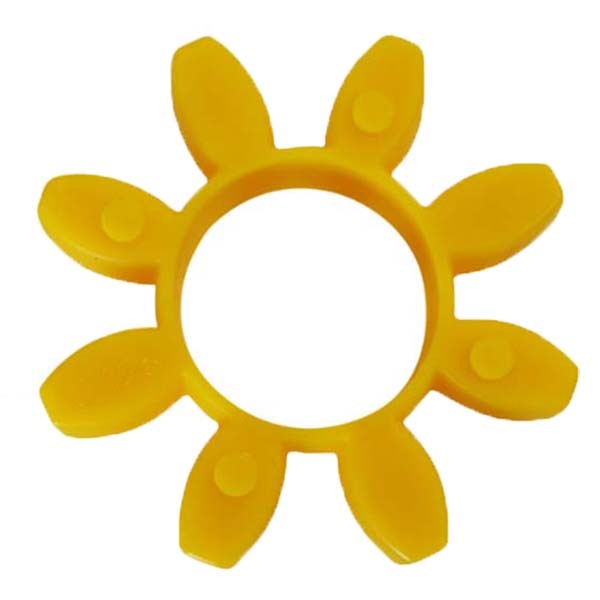

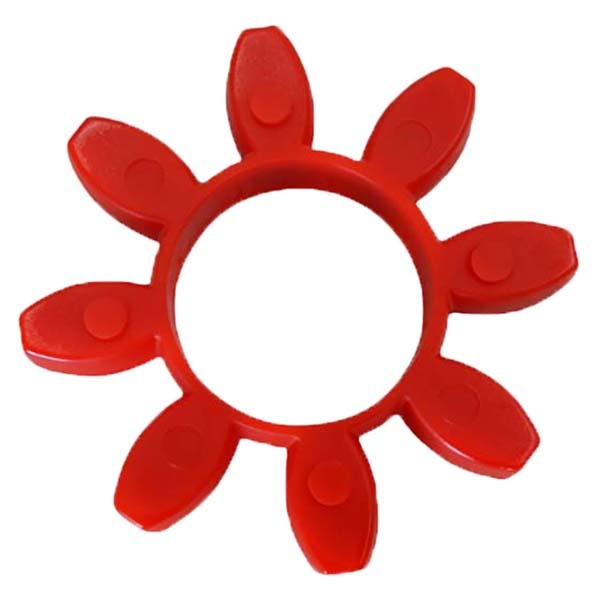

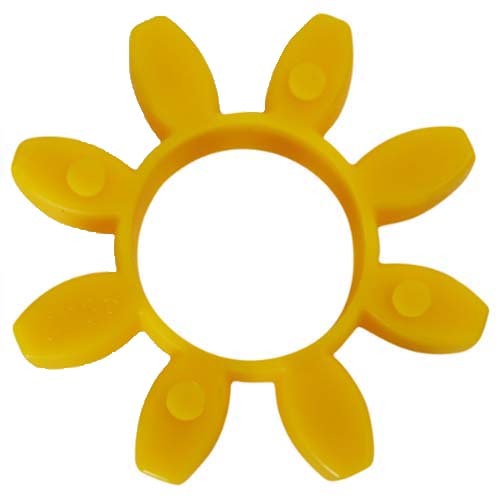

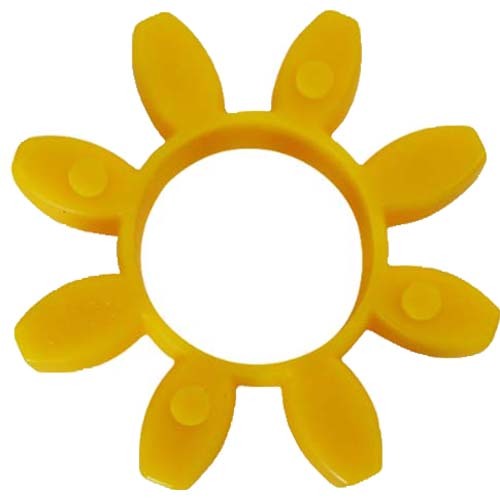

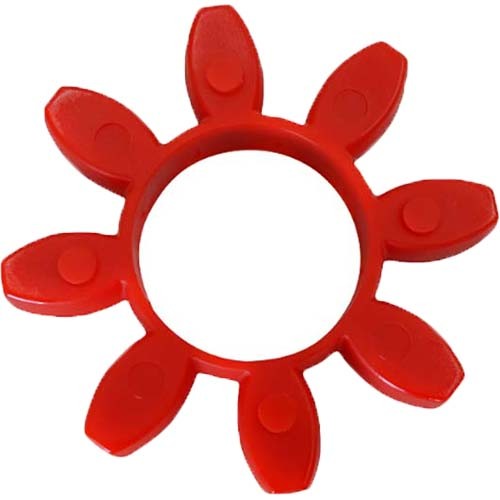

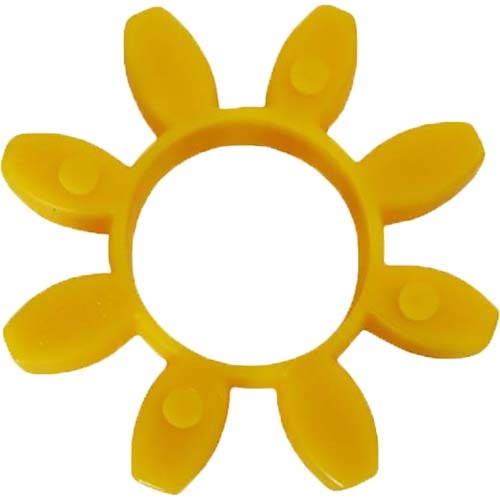

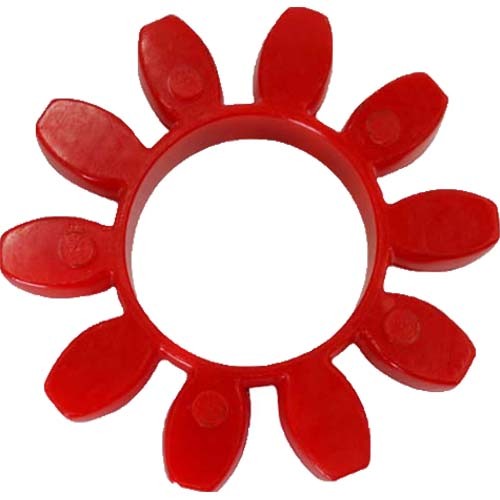

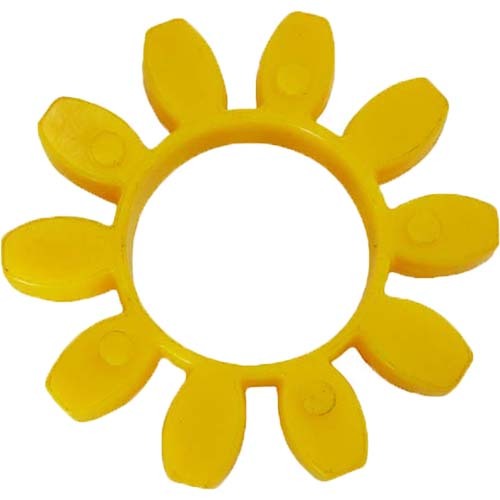

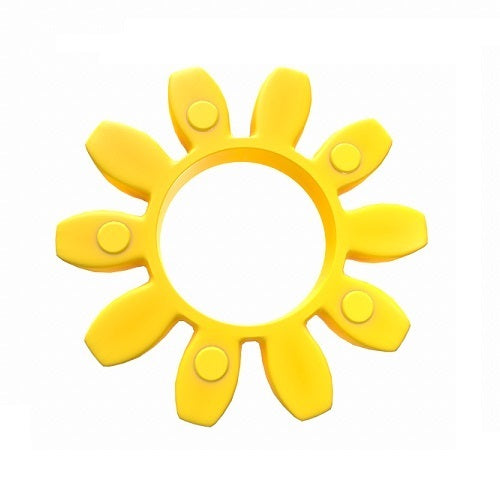

| GE19 / 92 Shore Yellow | 19-YELLOW | A0112384 |
| GE24 / 98 Shore Red | 24-RED | A0112381 |
| GE24 / 92 Shore Yellow | 24-YELLOW | A0112382 |
| GE28 / 98 Shore Red | 28-RED | A0112379 |
| GE28 / 92 Shore Yellow | 28-YELLOW | A0112380 |
| GE38 / 98 Shore Red | 38-RED | A0112377 |
| GE38 / 92 Shore Yellow | 38-YELLOW | A0112378 |
| GE42 / 98 Shore Red | 42-RED | A0112375 |
| GE42 / 92 Shore Yellow | 42-YELLOW | A0112376 |
| GE48 / 98 Shore Red | 48-RED | A0112373 |
| GE48 / 92 Shore Yellow | 48-YELLOW | A0112374 |
| GE55 / 98 Shore Red | 55-RED | A0112371 |
| GE55 / 92 Shore Yellow | 55-YELLOW | A0112372 |
| GE65 / 98 Shore Red | 65-RED | A0112369 |
| GE65 / 92 Shore Yellow | 65-YELLOW | A0112370 |
| GE75 / 98 Shore Red | 75-RED | A0112367 |
| GE75 / 92 Shore Yellow | 75-YELLOW | A0112368 |
| GE90 / 98 Shore Red | 90-RED | A0112365 |
| GE90 / 92 Shore Yellow | 90-YELLOW | A0112366 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Curved Jaw Coupling Element, 92 Shore A Yellow and 98 Shore A Red, GE19 to GE90: GE19 / 98 Shore Red
SKU: A0112383 | Model: 19-RED

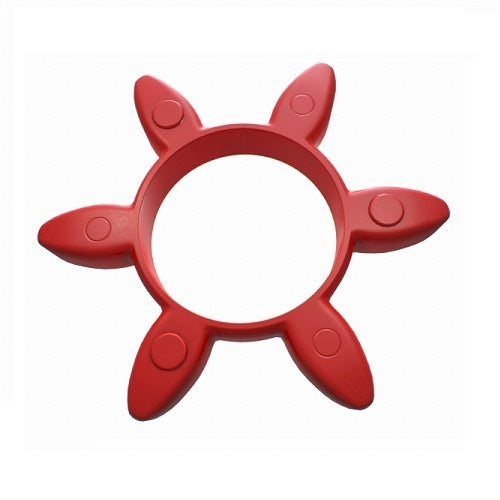

GE19 curved jaw coupling element, 98 Shore A red, rated 17 Nm, 19,000rpm max.
