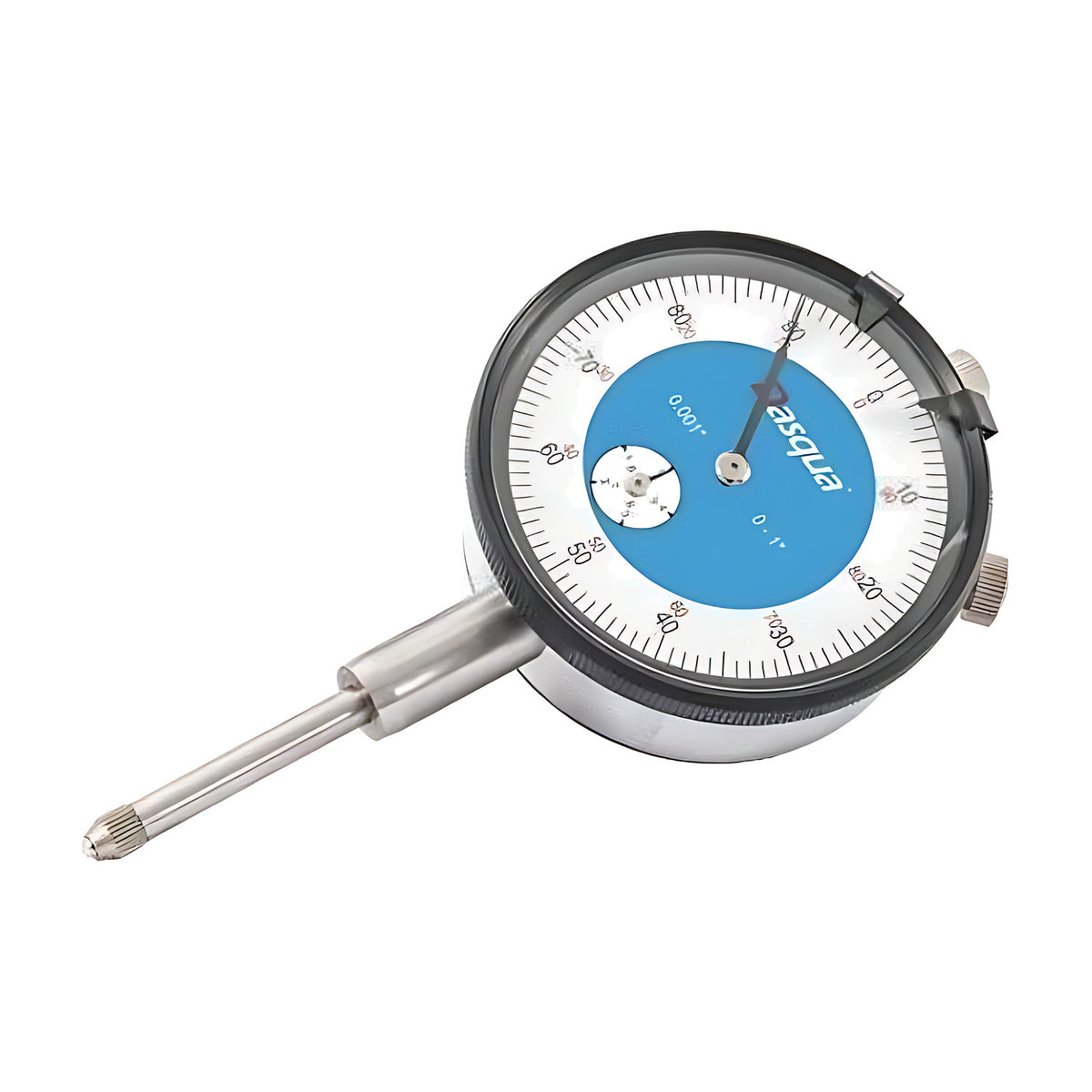

Dasqua DII1/2 Dial Indicator, 0-1/2" Range, 0.001" Reading
Available
Dasqua DII1/2, DII1 and DII2 are imperial dial indicators with ranges of 0-1/2", 0-1" and 0-2". Each reads to 0.001" on a 58mm diameter (manufacturer-stated).
The part number gives the range: DII1/2 covers 0-1/2", DII1 covers 0-1" and DII2 covers 0-2". The table below sets the three side by side.
Where this product is used
- Dial indicator measurement in inches, over ranges from 0-1/2" to 0-2"
Features
- Reading of 0.001" on all three ranges (manufacturer-stated)
- 58mm diameter (manufacturer-stated)
- Ranges of 0-1/2", 0-1" and 0-2"
Common specifications
| Specification | Detail |
|---|---|
| Series | DII imperial dial indicator |
| Ranges | 0-1/2", 0-1" and 0-2" |
| Reading | 0.001" (manufacturer-stated) |
| Diameter | 58mm (manufacturer-stated) |
Key specifications
| Part number | Range | Reading (manufacturer-stated) | Diameter (manufacturer-stated) |
|---|---|---|---|
| DII1/2 | 0-1/2" | 0.001" | 58mm |
| DII1 | 0-1" | 0.001" | 58mm |
| DII2 | 0-2" | 0.001" | 58mm |
Range, reading and diameter for each part number.
Selecting the right option
Choose the range that covers the movement you need to measure: DII1/2 for 0-1/2", DII1 for 0-1" and DII2 for 0-2". All three read to 0.001" (manufacturer-stated). For metric ranges see the Dasqua Dial Indicator - Metric.
Related products
Metric version: Dasqua Dial Indicator - Metric. Other indicators: Dial Test Indicator and Digital Indicator.
