Koyo 6000 series, 10 x 26 x 8
Available

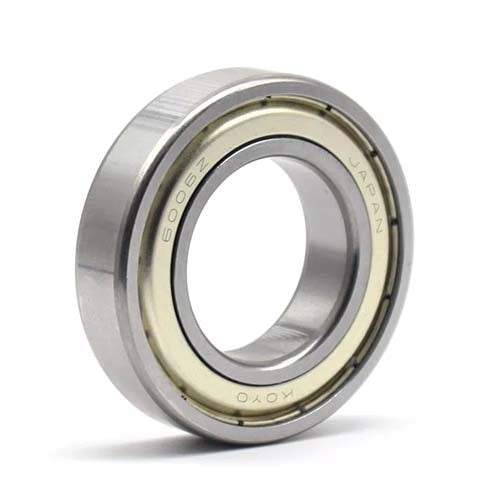

This is the Koyo Deep Groove Ball Bearing, Metal Shielded (ZZ), C3 Clearance, 6000 Series.
This Koyo deep groove ball bearing (shielded, 6000 series) is built on the most popular rolling bearing type. Deep, uninterrupted raceway grooves in the inner and outer rings carry radial load and a certain degree of axial load in either direction, at high speed. It carries a metal shield on each side (ZZ type) and is pre-lubricated, so no greasing is needed.
The range has 23 sizes, with bores from 10 to 120mm, C3 radial internal clearance and boundary dimensions to JIS B 1512. Koyo bearings are made by JTEKT Corporation.
Where this product is used
- Automotive: transmissions, electrical devices, and truck and trailer equipment
- Off-highway: construction equipment, agricultural equipment and railway rolling equipment
- Electrical equipment: standard motors and domestic electric appliances
- Measuring and medical instruments
- General industrial equipment
Features
- Deep, uninterrupted raceway grooves carry radial load and a certain degree of axial load in either direction
- Metal shield (ZZ) on both sides: non-contact, with small friction torque and good high speed performance
- C3 radial internal clearance, larger than the normal clearance
- Boundary dimensions to JIS B 1512, tolerances to JIS B 1514-1
- Basic dynamic load ratings 4.55 to 85 kN and static 1.95 to 79.3 kN depending on size
- Standard cage by size: polyamide moulded and pressed steel
Key specifications
| Specification | Detail |
|---|---|
| Bearing type | Single row deep groove ball bearing |
| Series | 6000 |
| Sealing | Metal shields (ZZ), both sides, non-contact |
| Radial internal clearance | C3 (larger than normal) |
| Bore diameter d | 10 to 120mm |
| Outside diameter D | 26 to 180mm |
| Width B | 8 to 28mm |
| Basic dynamic load rating Cr | 4.55 to 85 kN |
| Basic static load rating C0r | 1.95 to 79.3 kN |
| Limiting speed, grease lubrication | 3,600 to 31,000 min-1 |
| Limiting speed, oil lubrication | 4,200 to 36,000 min-1 |
| Operating temperature (standard type) | -30°C to +110°C |
| Dimensions and tolerances | JIS B 1512 (boundary dimensions), JIS B 1514-1 (tolerances) |
| Radial internal clearance standard | JIS B 1520 |
| Standard cage | Polyamide moulded and pressed steel, depending on size |
| Brand | Koyo (JTEKT) |
Available sizes
| Designation | Bore d (mm) | Outer D (mm) | Width B (mm) | R min (mm) | Cr (kN) | C0r (kN) | Speed, grease (min-1) | Speed, oil (min-1) |
|---|---|---|---|---|---|---|---|---|
| 6000-ZZC3 | 10 | 26 | 8 | 0.3 | 4.55 | 1.95 | 31,000 | 36,000 |
| 6001-ZZC3 | 12 | 28 | 8 | 0.3 | 5.1 | 2.4 | 27,000 | 32,000 |
| 6002-ZZC3 | 15 | 32 | 9 | 0.3 | 5.6 | 2.85 | 23,000 | 27,000 |
| 6003-ZZC3 | 17 | 35 | 10 | 0.3 | 6 | 3.25 | 21,000 | 25,000 |
| 6004-ZZC3 | 20 | 42 | 12 | 0.6 | 9.4 | 5.05 | 17,000 | 21,000 |
| 6005-ZZC3 | 25 | 47 | 12 | 0.6 | 10.1 | 5.85 | 15,000 | 18,000 |
| 6006-ZZC3 | 30 | 55 | 13 | 1 | 13.2 | 8.25 | 13,000 | 15,000 |
| 6007-ZZC3 | 35 | 62 | 14 | 1 | 15.9 | 10.3 | 11,000 | 13,000 |
| 6008-ZZC3 | 40 | 68 | 15 | 1 | 16.7 | 11.5 | 10,000 | 12,000 |
| 6009-ZZC3 | 45 | 75 | 16 | 1 | 21 | 15.1 | 9,200 | 11,000 |
| 6010-ZZC3 | 50 | 80 | 16 | 1 | 21.8 | 16.6 | 8,400 | 9,900 |
| 6011-ZZC3 | 55 | 90 | 18 | 1.1 | 28.3 | 21.2 | 7,600 | 8,900 |
| 6012-ZZC3 | 60 | 95 | 18 | 1.1 | 29.4 | 23.2 | 7,100 | 8,400 |
| 6013-ZZC3 | 65 | 100 | 18 | 1.1 | 30.5 | 25.2 | 6,600 | 7,800 |
| 6014-ZZC3 | 70 | 110 | 20 | 1.1 | 38.1 | 30.9 | 6,100 | 7,200 |
| 6015-ZZC3 | 75 | 115 | 20 | 1.1 | 39.6 | 33.5 | 5,700 | 6,800 |
| 6016-ZZC3 | 80 | 125 | 22 | 1.1 | 47.6 | 39.8 | 5,300 | 6,300 |
| 6017-ZZC3 | 85 | 130 | 22 | 1.1 | 49.5 | 43.1 | 5,000 | 5,900 |
| 6018-ZZC3 | 90 | 140 | 24 | 1.5 | 58.2 | 49.7 | 4,700 | 5,600 |
| 6019-ZZC3 | 95 | 145 | 24 | 1.5 | 60.4 | 53.9 | 4,400 | 5,200 |
| 6020-ZZC3 | 100 | 150 | 24 | 1.5 | 60.2 | 54.2 | 4,300 | 5,100 |
| 6022-ZZC3 | 110 | 170 | 28 | 2 | 82 | 73 | 3,800 | 4,500 |
| 6024-ZZC3 | 120 | 180 | 28 | 2 | 85 | 79.3 | 3,600 | 4,200 |
Fitting and use
Fit the ring that has the interference fit first, and press only on that ring, never through the balls.
Do not relubricate: the bearing is pre-lubricated with an appropriate volume of grease. The standard type runs from -30°C to +110°C.

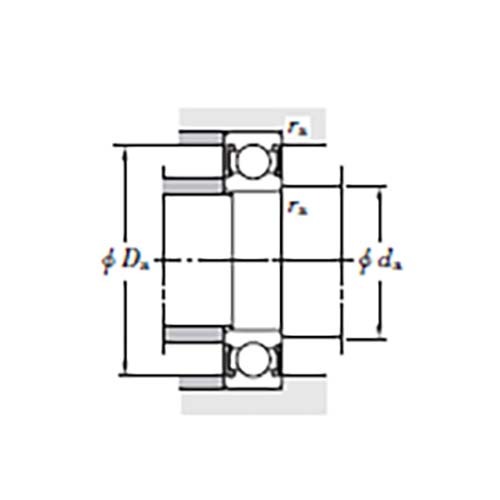

Where axial load is large, make the shaft shoulder and housing shoulder larger than usual.
Choosing the right option

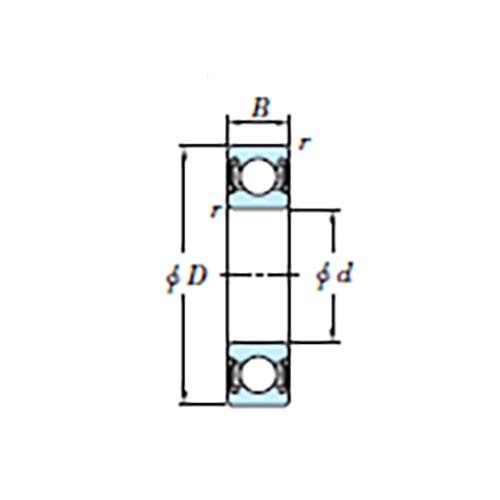

Select by bore d first, then check the outside diameter D and width B in the specifications against your housing.
The basic dynamic load rating Cr relates to bearing life under rotating load, and the basic static load rating C0r to heavy or slow-turning duty. Compare the limiting speed for your size with the shaft speed. The speeds shown are the grease lubrication limits.
The ZZ shield is a non-contact type, with small friction torque, good high speed performance and good grease and dirt sealing. Koyo water resistance is economical, so choose a rubber sealed bearing where water is present.
C3 is a radial internal clearance larger than normal. It is chosen where interference fits or a temperature difference between the rings take up clearance in service. Confirm the clearance class for your application.
Shielded and sealed bearings are designed for use with the inner ring rotating.
Also available from Koyo: the 6000 contact sealed C3 range, the 6000 open C3 range, the 6000 shielded normal clearance range.
| Option | Part number | SKU |
|---|---|---|
| 10 x 26 x 8 | A0153023 | |
| 12 x 28 x 8 | A0153020 | |
| 15 x 32 x 9 | A0153019 | |
| 17 x 35 x 10 | A0153018 | |
| 20 x 42 x 12 | A0153017 | |
| 25 x 47 x 12 | A0153016 | |
| 30 x 55 x 13 | A0153015 | |
| 35 x 62 x 14 | A0153014 | |
| 40 x 68 x 15 | A0153013 | |
| 45 x 75 x 16 | A0153012 | |
| 50 x 80 x 16 | A0153011 | |
| 55 x 90 x 18 | A0153010 | |
| 60 x 95 x 18 | A0153009 | |
| 65 x 100 x 18 | A0153008 | |
| 70 x 110 x 20 | A0153007 | |
| 75 x 115 x 20 | A0153006 | |
| 80 x 125 x 22 | A0153005 | |
| 85 x 130 x 22 | A0153004 | |
| 90 x 140 x 24 | A0153003 | |
| 95 x 145 x 24 | A0153002 | |
| 100 x 150 x 24 | A0153024 | |
| 110 x 170 x 28 | A0153022 | |
| 120 x 180 x 28 | A0153021 |
Product details
| Model | 6000-ZZC3/KOYO |
|---|---|
| Designation | 6000-ZZC3 |
| Bearing type | Single row deep groove ball bearing |
| Sealing | Metal shields (ZZ), both sides, non-contact |
| Radial internal clearance | C3 (larger than normal) |
| Bore diameter d (mm) | 10 |
| Outside diameter D (mm) | 26 |
| Width B (mm) | 8 |
| Chamfer dimension r min (mm) | 0.3 |
| Basic dynamic load rating Cr (kN) | 4.55 |
| Basic static load rating C0r (kN) | 1.95 |
| Factor f0 | 12.3 |
| Limiting speed, grease lubrication (min-1) | 31,000 |
| Limiting speed, oil lubrication (min-1) | 36,000 |
| Standard cage | Polyamide moulded |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Koyo Deep Groove Ball Bearing, Metal Shielded (ZZ), C3 Clearance, 6000 Series: 10 x 26 x 8
SKU: A0153023 | Model: 6000-ZZC3/KOYO
Koyo 6000-ZZC3 shielded deep groove ball bearing, 10 x 26 x 8mm, Cr 4.55 kN, limiting speed 31,000 min-1.
