Koyo 6200 series, 10 x 30 x 9

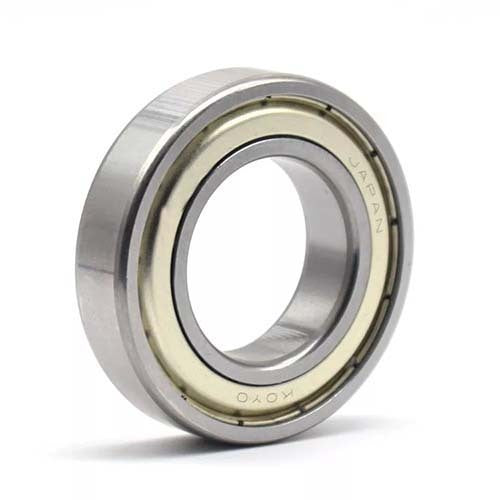

This is the Koyo Deep Groove Ball Bearing, Metal Shielded (ZZ), C3 Clearance, 6200 Series.

This Koyo deep groove ball bearing (shielded, 6200 series) is built on the most popular rolling bearing type. Deep, uninterrupted raceway grooves in the inner and outer rings carry radial load and a certain degree of axial load in either direction, at high speed. It carries a metal shield on each side (ZZ type) and is pre-lubricated, so no greasing is needed.

The range has 23 sizes, with bores from 10 to 120mm, C3 radial internal clearance and boundary dimensions to JIS B 1512. Koyo bearings are made by JTEKT Corporation.

Where this product is used

• Automotive: transmissions, electrical devices, and truck and trailer equipment
• Off-highway: construction equipment, agricultural equipment and railway rolling equipment
• Electrical equipment: standard motors and domestic electric appliances
• Measuring and medical instruments
• General industrial equipment

Features

• Deep, uninterrupted raceway grooves carry radial load and a certain degree of axial load in either direction
• Metal shield (ZZ) on both sides: non-contact, with small friction torque and good high speed performance
• C3 radial internal clearance, larger than the normal clearance
• Boundary dimensions to JIS B 1512, tolerances to JIS B 1514-1
• Basic dynamic load ratings 5.1 to 155 kN and static 2.4 to 131 kN depending on size
• Standard cage by size: polyamide moulded and pressed steel

Key specifications

Available sizes

Fitting and use

Fit the ring that has the interference fit first, and press only on that ring, never through the balls.

Do not relubricate: the bearing is pre-lubricated with an appropriate volume of grease. The standard type runs from -30°C to +110°C.

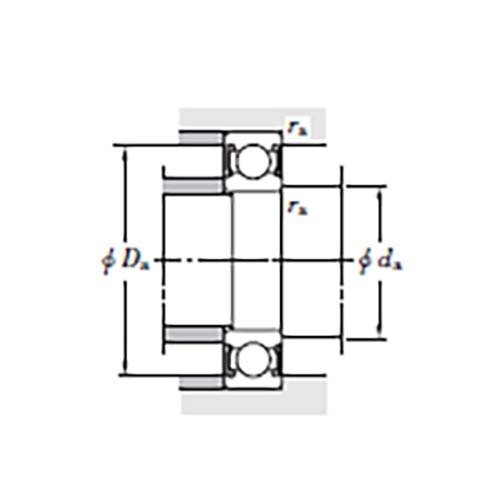

Where axial load is large, make the shaft shoulder and housing shoulder larger than usual.

Choosing the right option

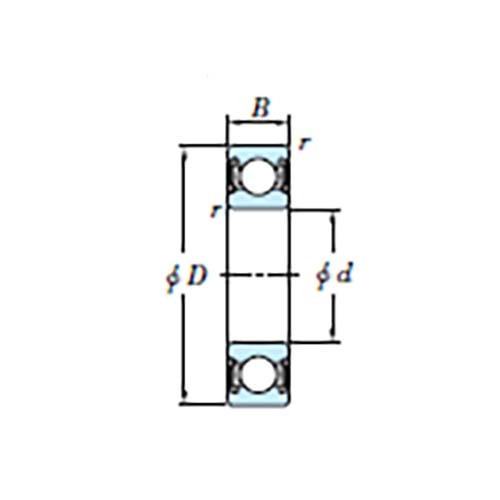

Select by bore d first, then check the outside diameter D and width B in the specifications against your housing.

The basic dynamic load rating Cr relates to bearing life under rotating load, and the basic static load rating C0r to heavy or slow-turning duty. Compare the limiting speed for your size with the shaft speed. The speeds shown are the grease lubrication limits.

The ZZ shield is a non-contact type, with small friction torque, good high speed performance and good grease and dirt sealing. Koyo water resistance is economical, so choose a rubber sealed bearing where water is present.

C3 is a radial internal clearance larger than normal. It is chosen where interference fits or a temperature difference between the rings take up clearance in service. Confirm the clearance class for your application.

Shielded and sealed bearings are designed for use with the inner ring rotating.

Also available from Koyo: the 6200 contact sealed C3 range, the 6200 open C3 range, the 6200 shielded normal clearance range.
