Koyo 6000 series, 10 x 26 x 8

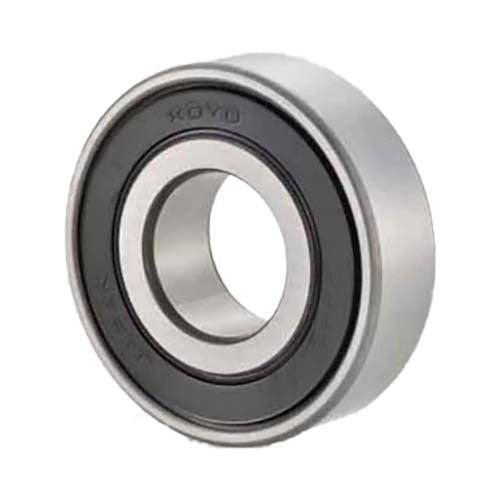

This is the Koyo Deep Groove Ball Bearing, Contact Sealed (2RS), 6000 Series.

This Koyo deep groove ball bearing (contact sealed, 6000 series) is built on the most popular rolling bearing type. Deep, uninterrupted raceway grooves in the inner and outer rings carry radial load and a certain degree of axial load in either direction, at high speed. It carries a contact rubber seal on each side (2RS type) and is pre-lubricated, so no greasing is needed.

The range has 26 sizes, with bores from 10 to 150mm, normal (CN) radial internal clearance and boundary dimensions to JIS B 1512. Koyo bearings are made by JTEKT Corporation.

Where this product is used

• Automotive: transmissions, electrical devices, and truck and trailer equipment
• Off-highway: construction equipment, agricultural equipment and railway rolling equipment
• Electrical equipment: standard motors and domestic electric appliances
• Measuring and medical instruments
• General industrial equipment

Features

• Deep, uninterrupted raceway grooves carry radial load and a certain degree of axial load in either direction
• Contact rubber seals (2RS) on both sides: good water resistance and better dirt resistance than the 2RU type
• Boundary dimensions to JIS B 1512, tolerances to JIS B 1514-1
• Basic dynamic load ratings 4.55 to 125 kN and static 1.95 to 126 kN depending on size
• Standard cage by size: polyamide moulded and pressed steel

Key specifications

Available sizes

Fitting and use

Fit the ring that has the interference fit first, and press only on that ring, never through the balls.

Do not relubricate: the bearing is pre-lubricated with an appropriate volume of grease. The standard type runs from -30°C to +100°C.

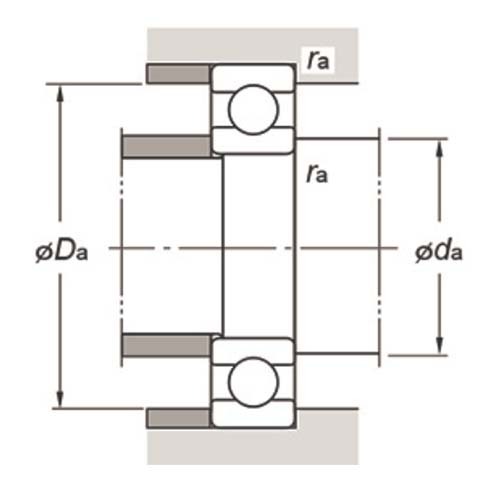

Where axial load is large, make the shaft shoulder and housing shoulder larger than usual.

Choosing the right option

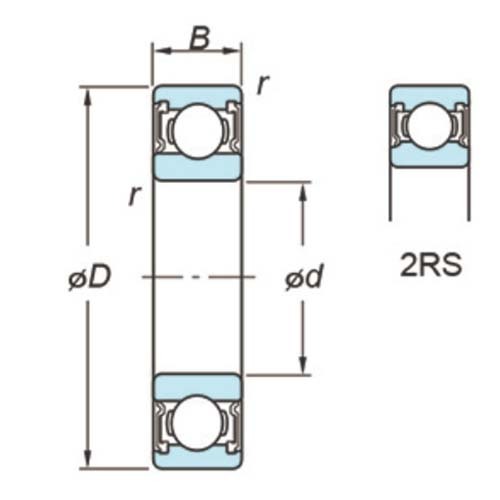

Select by bore d first, then check the outside diameter D and width B in the specifications against your housing.

The basic dynamic load rating Cr relates to bearing life under rotating load, and the basic static load rating C0r to heavy or slow-turning duty. Compare the limiting speed for your size with the shaft speed. The speeds shown are the grease lubrication limits.

The 2RS contact seal gives good water resistance and better dirt resistance than the non-contact 2RU type. Because the seal touches the inner ring it has larger friction torque, and high speed performance is limited. Check the limiting speed shown for your size.

Shielded and sealed bearings are designed for use with the inner ring rotating.

Also available from Koyo: the 6000 open range, the 6000 shielded range, the 6000 contact sealed C3 range.
