Deep Groove Ball Bearing Rubber Seal (C3) - 6300 Series1

Deep Groove Ball Bearing Rubber Seal (C3) - 6300 Series2

Deep Groove Ball Bearing Rubber Seal (C3) - 6300 Series3

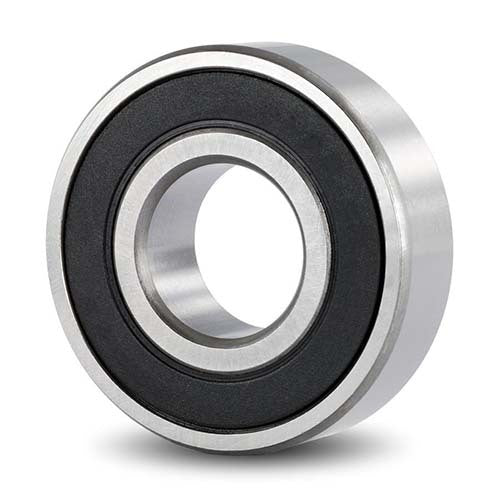

Koyo/JTEKT 6319-2RSC3 Deep Groove Ball Bearing Rubber Seal (C3) 95 x 200 x 45mm

Koyo/JTEKT 6318-2RSC3 Deep Groove Ball Bearing Rubber Seal (C3) 90 x 190 x 43mm

Koyo/JTEKT 6317-2RSC3 Deep Groove Ball Bearing Rubber Seal (C3) 85 x 180 x 41mm

Koyo/JTEKT 6316-2RSC3 Deep Groove Ball Bearing Rubber Seal (C3) 80 x 170 x 39mm

Koyo/JTEKT 6315-2RSC3 Deep Groove Ball Bearing Rubber Seal (C3) 75 x 160 x 37mm

Koyo/JTEKT 6314-2RSC3 Deep Groove Ball Bearing Rubber Seal (C3) 70 x 150 x 35mm

Koyo/JTEKT 6313-2RSC3 Deep Groove Ball Bearing Rubber Seal (C3) 65 x 140 x 33mm

Koyo/JTEKT 6312-2RSC3 Deep Groove Ball Bearing Rubber Seal (C3) 60 x 130 x 31mm

Koyo/JTEKT 6311-2RSC3 Deep Groove Ball Bearing Rubber Seal (C3) 55 x 120 x 29mm

Koyo/JTEKT 6310-2RSC3 Deep Groove Ball Bearing Rubber Seal (C3) 50 x 110 x 27mm

Koyo/JTEKT 6309-2RSC3 Deep Groove Ball Bearing Rubber Seal (C3) 45 x 100 x 25mm

Koyo/JTEKT 6308-2RSC3 Deep Groove Ball Bearing Rubber Seal (C3) 40 x 90 x 23mm

Koyo/JTEKT 6307-2RSC3 Deep Groove Ball Bearing Rubber Seal (C3) 35 x 80 x 21mm

Koyo/JTEKT 6306-2RSC3 Deep Groove Ball Bearing Rubber Seal (C3) 30 x 72 x 19mm

Koyo/JTEKT 6305-2RSC3 Deep Groove Ball Bearing Rubber Seal (C3) 25 x 62 x 17mm

Koyo/JTEKT 6304-2RSC3 Deep Groove Ball Bearing Rubber Seal (C3) 20 x 52 x 15mm

Koyo/JTEKT 6303-2RSC3 Deep Groove Ball Bearing Rubber Seal (C3) 17 x 47 x 14mm

Koyo/JTEKT 6302-2RSC3 Deep Groove Ball Bearing Rubber Seal (C3) 15 x 42 x 13mm

Koyo/JTEKT 6301-2RSC3 Deep Groove Ball Bearing Rubber Seal (C3) 12 x 37 x 12mm

Koyo/JTEKT 6300-2RSC3 Deep Groove Ball Bearing Rubber Seal (C3) 10 x 35 x 11mm

Koyo/JTEKT 6320-2RSC3 Deep Groove Ball Bearing Rubber Seal (C3) 100 x 215 x 47mm

Application +

Main Applications

Automotive: Transmissions, electrical devices, truck, and trailer equipment.
Off-Highway Vehicles: Construction equipment, agricultural equipment, railroad rolling equipment.
Electrical Equipment: Standard motors, electric appliances for domestic use
Other: Measuring instruments, medical instruments, and miscellaneous industrial equipment.

Features & Benefits +

Features Deep Groove Radial Bearing

Type: Open Type, Shielded/ sealed type, With locating snap ring, Maximum type, and Double-row.
The most popular rolling bearing type used in a wide variety of industries and applications.
The inner and outer rings have deep uninterrupted grooves.
They can support radial loading and a certain degree of axial loading in either direction
High-speed capability.
The Maximum style not to be used when axial loading or high speed is involved.
Sealed and shielded types are filled with an appropriate volume of grease.
Bearings with a locating snap ring aid axial positioning and eliminate the need for housing shoulder.
Cages can be a pressed steel, machined copper alloy, molded polyamide, synthetic resin, pressed stainless sheet steel

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Deep Groove Ball Bearing Rubber Seal (C3) - 6300 Series

SKU: A0153177

Type: Deep Groove Ball Bearing

$12.80

Inc. GST

The Deep Groove Ball Bearing Rubber Seal (C3) by Koyo is a Deep-Groove Ball Bearings with rubber seal (C3 clearance). It provides 6300 Series sealed pre-lubricated bearings with locating snap ring and is for automotive transmissions.

Available

Product Highlights −

*** JTEKT (Formerly Koyo Brand) ***

Deep Groove Ball Bearing Rubber Seal (C3 Clearance) - 6300 Series

Deep groove ball bearing rubber seal with C3 clearance.
6300 Series.

About Deep Groove Ball Bearing

Deep groove ball bearings are available in a variety of sizes and are the most popular of all rolling bearings.
This type of bearing supports radial load and a certain degree of axial load in both directions simultaneously.

Shielded/sealed type

Simplifies the sealing structure of applications.
Greasing is not necessary because bearings are pre-lubricated.

With locating snap ring

Bearings with a locating snap ring can be fitted to the housing easily, as the locating snap ring facilitates axial positioning.

Extra-small ball bearings and miniature ball bearings

The open type is widely used. Also available are the shielded/sealed type and the flanged type; the latter is easily positioned in the axial direction.
