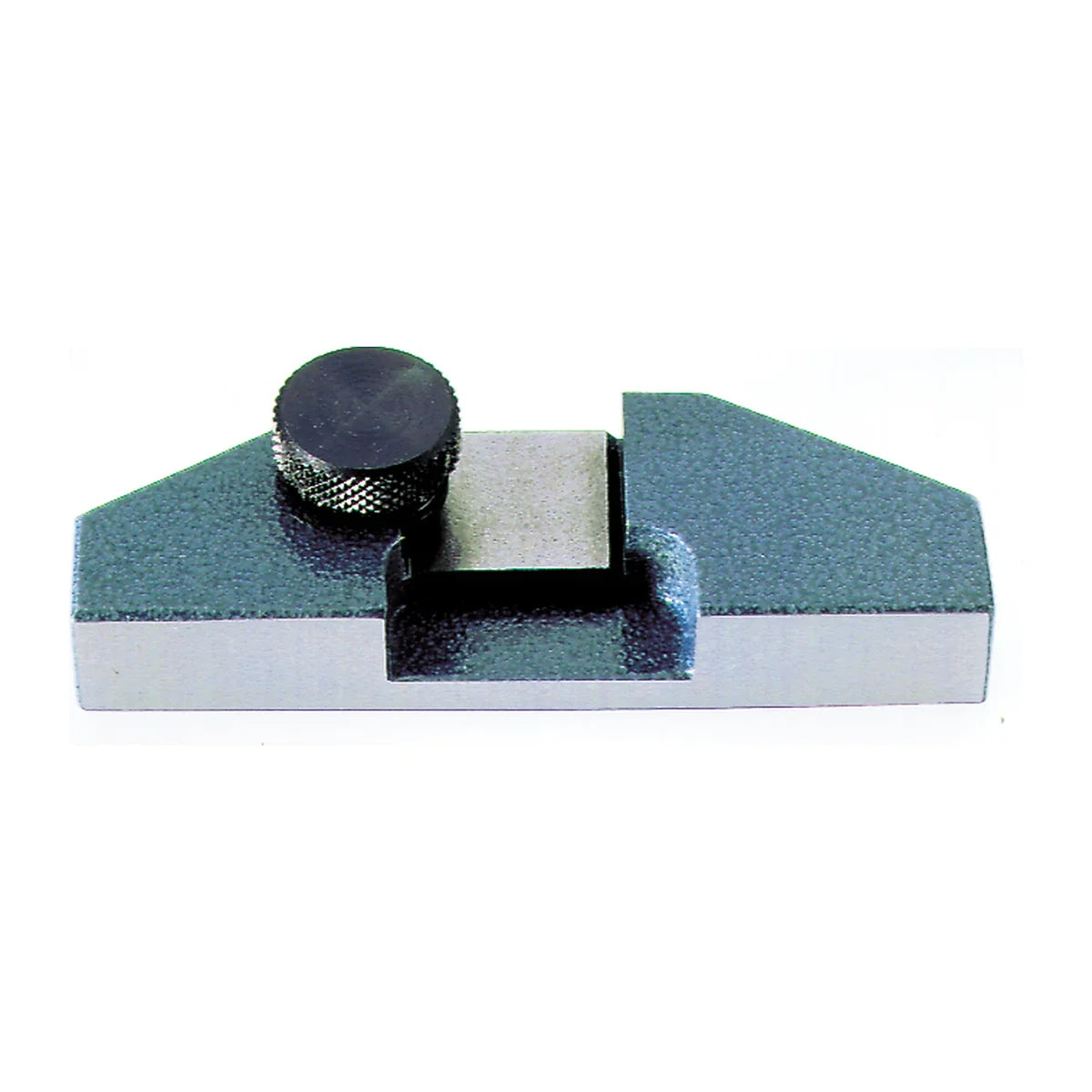

Mitutoyo 050083-10 Depth Base Attachment, 75mm

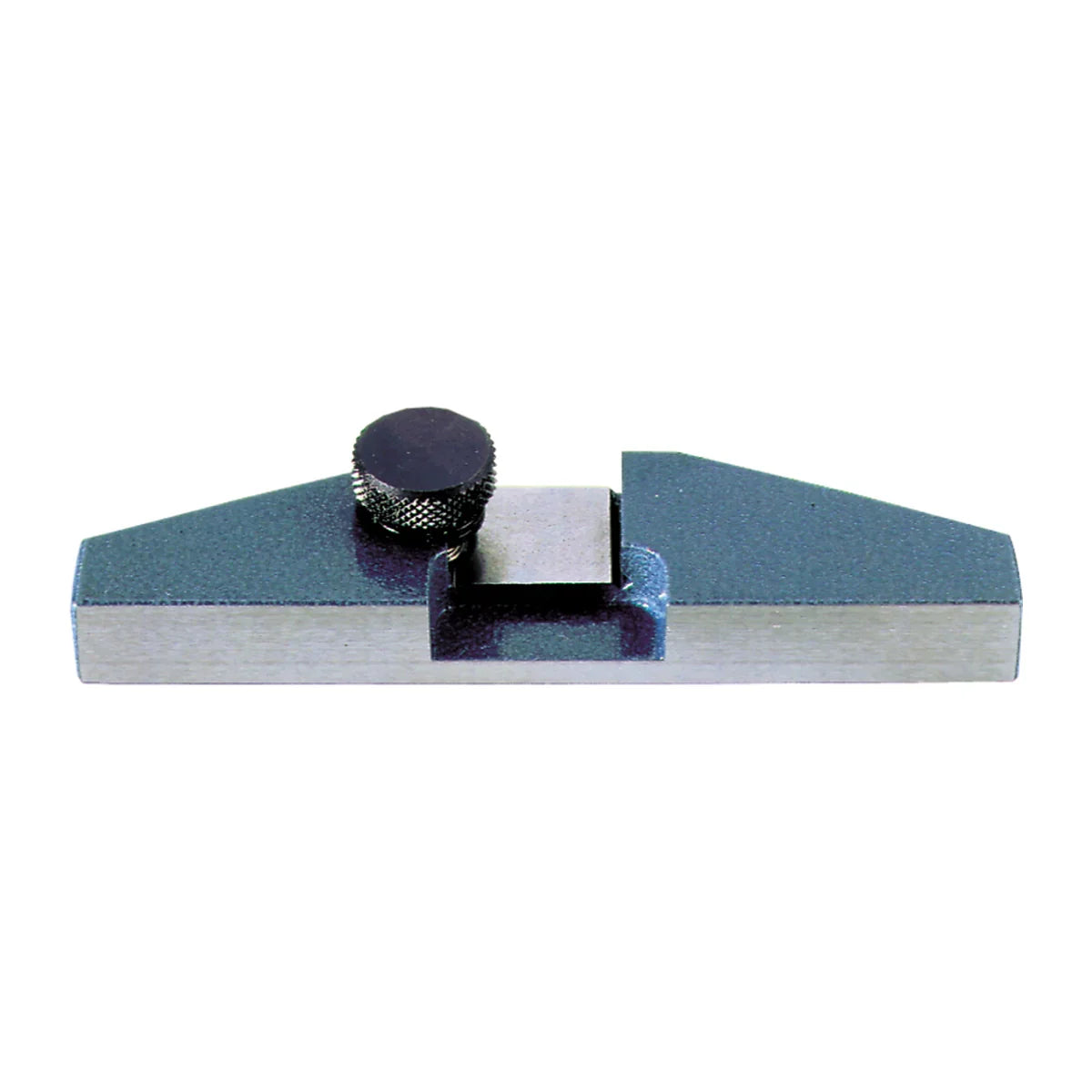

The Mitutoyo depth gauge attachment is an optional base for a caliper. Fitting it to the depth measurement face of the caliper makes depth measurement accurate and secure. Fitters, machinists and inspectors use it when they measure the depth of a hole, slot or step with a caliper.

There are two sizes, 75mm and 100mm. Both suit calipers of 100mm, 150mm and 200mm (4", 6" and 8"). Choose the 75mm base where space is tight, and the 100mm base when you want a longer base on the work. The caliper itself is not included.

Where this product is used

• Measuring hole depth with a caliper
• Measuring slot and step depth with a caliper
• Giving a caliper depth bar a flat, stable base on the work

Features

• Optional accessory for calipers that have a depth measuring bar
• Two sizes, 75mm and 100mm
• Suits 100mm, 150mm and 200mm (4", 6" and 8") calipers
• Both bases are 12mm thick
• Finely ground base surface and a secure locking clamp

Key specifications

Supplied with

• One depth base attachment per option
• Not included: caliper

Choosing the right option
