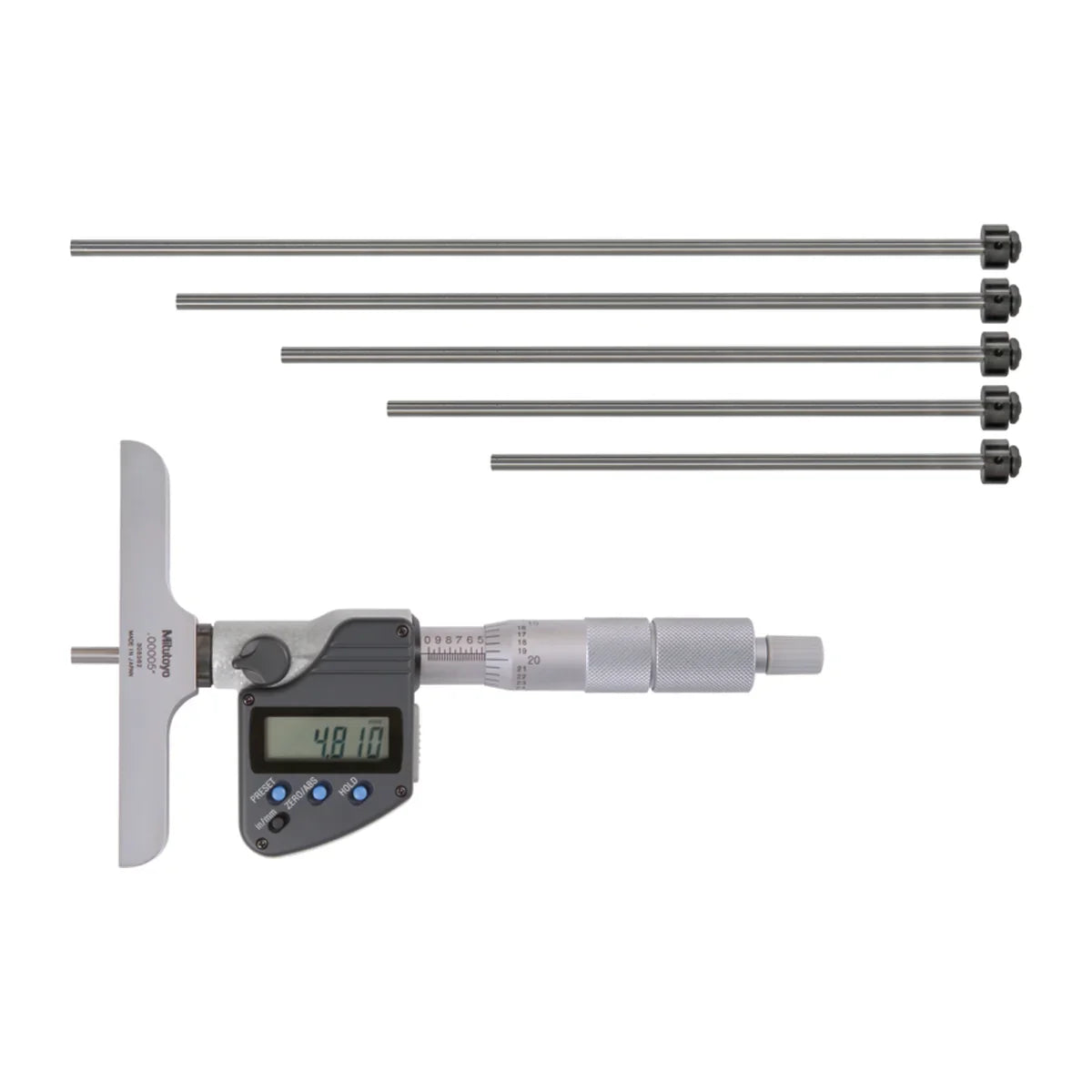

Mitutoyo 329-350-30 Digimatic Depth Micrometer

The Mitutoyo 329-350-30 is a Digimatic depth micrometer with an LCD display for measuring the depth of holes, slots and steps from 0 to 6". It suits toolrooms, machinists, fitters and quality control. Interchangeable ø4mm rods with lapped measuring surfaces give it a wide range, and a ratchet stop gives a constant measuring force. It reads to 0.00005" (0.001mm).

It uses an ABSOLUTE encoder, so the display is correct when you switch it on without zeroing it first, unless the battery has been removed. The series has a data output function, which lets the readings go to an SPC (statistical process control) or measurement system. The micrometer comes with six rods and an SR44 battery included for operational checks.

Where this product is used

• Measuring the depth of holes, slots and steps up to 6"
• Quality control checks that need a digital reading
• Shop-floor depth checks with readings fed to an SPC system

Features

• Digimatic LCD display with a resolution of 0.00005" (0.001mm)
• Six interchangeable ø4mm rods with lapped measuring surfaces
• Ratchet stop for a constant measuring force and a measuring rod lock
• Origin point setting, zero-setting and hold functions
• Data output function for SPC and measurement systems
• Automatic power off after about 20 minutes idle, with the reading and mode kept
• Error alarm and low-battery alarm
• SR44 battery included for operational checks, with a battery life of approx. 2.4 years under normal use

Key specifications

Supplied with

• Depth micrometer
• Six interchangeable rods
• SR44 battery (included for operational checks)
