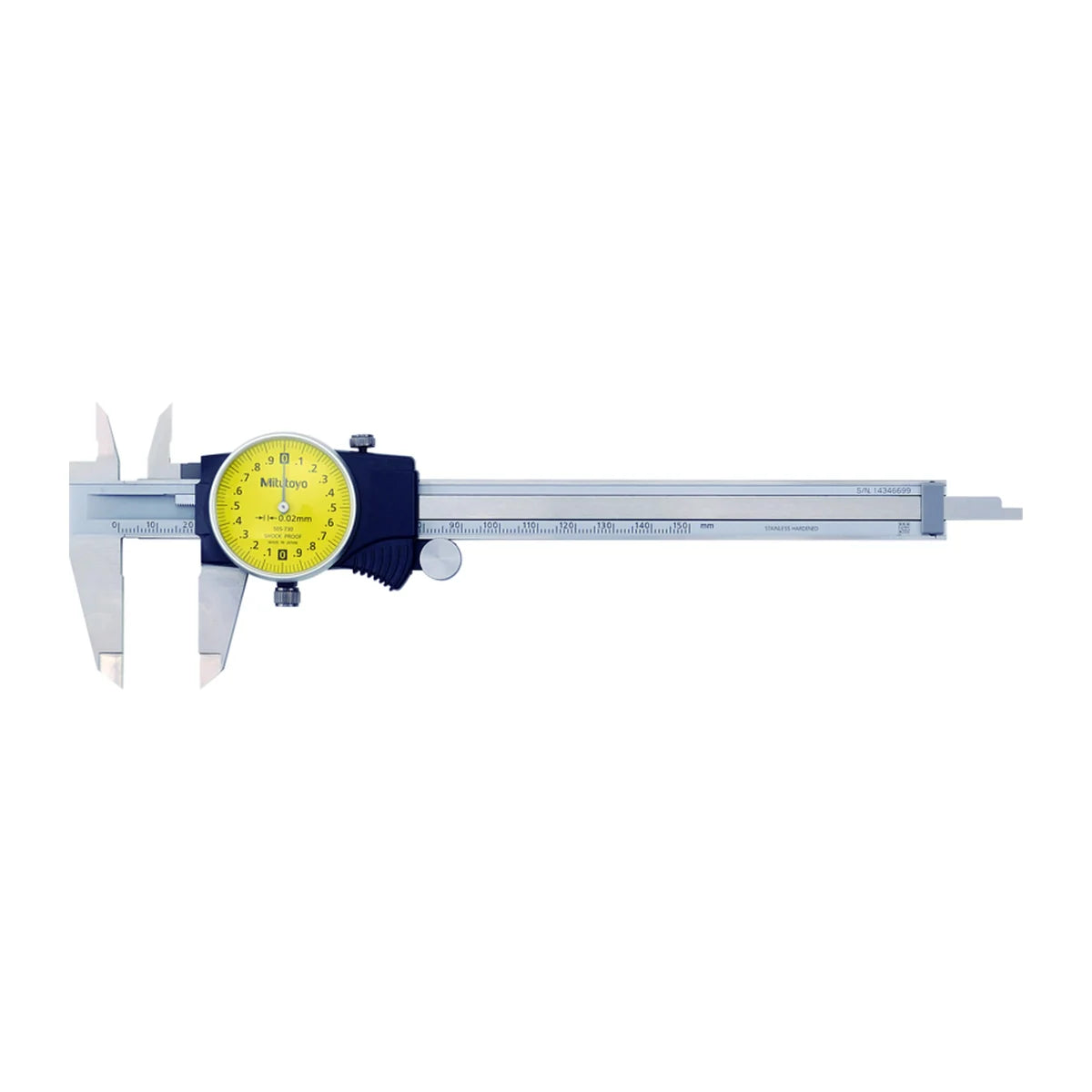

Mitutoyo 505-730 Dial Caliper 0-150mm 0.02mm

The Mitutoyo Series 505 dial caliper measures outside size, inside size, depth and steps, and shows the fine part of the reading on a round dial. These three models read in 0.02mm steps, with one turn of the pointer for each 2mm. They come in 150mm, 200mm and 300mm ranges. Toolrooms, fitters, inspectors and apprentices use them. The yellow dial reduces the effect of parallax and the large finger rest makes the caliper easy to use.

To read it, take the main scale reading and add the dial reading. Graduation is the smallest step the dial shows. Maximum permissible error is the most a reading can be out, so check both. If you want finer 0.01mm steps, look at the 0.01mm Series 505 models. They only come in 150mm and 200mm.

Where this product is used

• General workshop and fitting checks where a 0.02mm dial step is enough
• Measuring outside size, inside size, depth and steps in one tool
• Larger parts up to 300mm

Features

• 0.02mm graduation with 2mm per revolution of the pointer

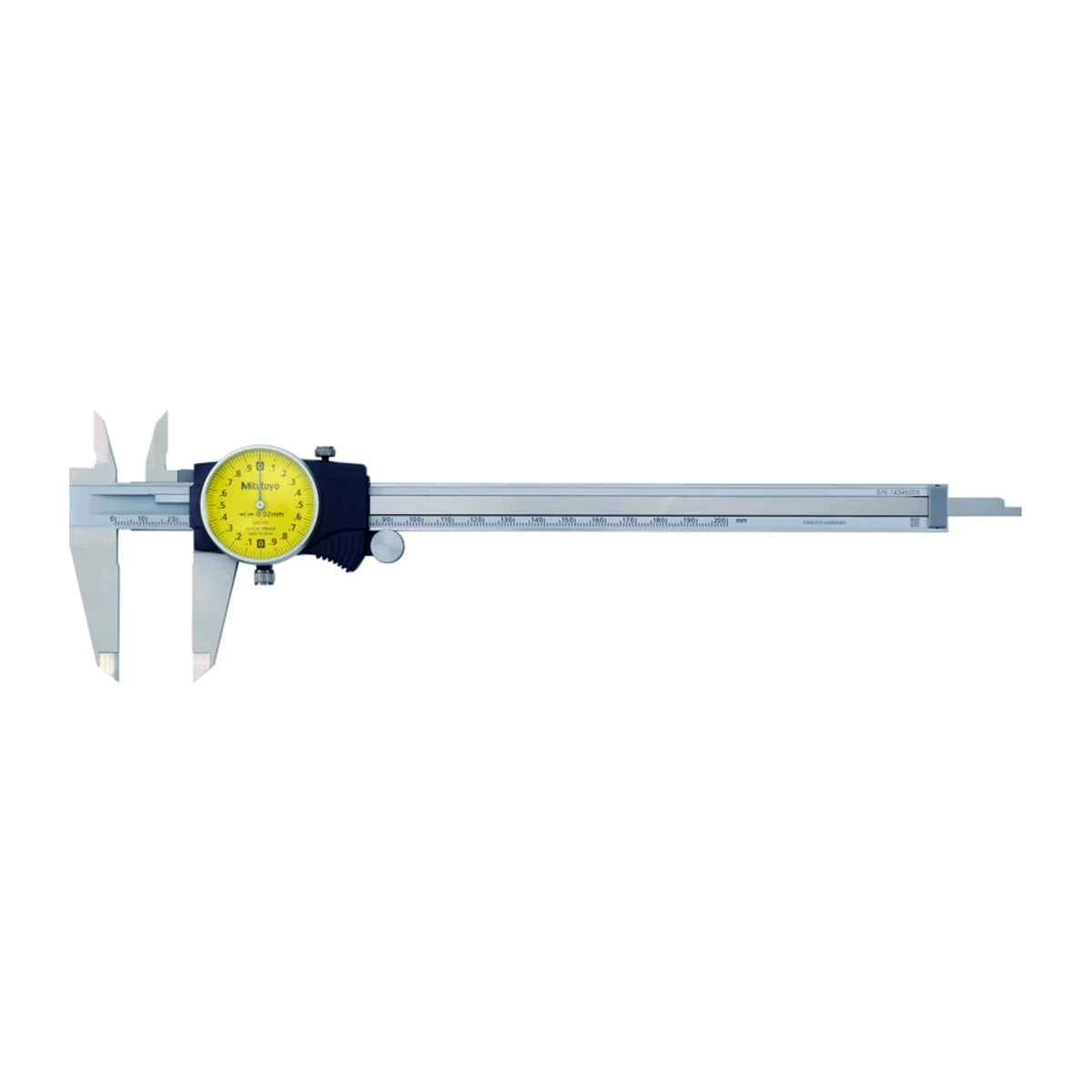

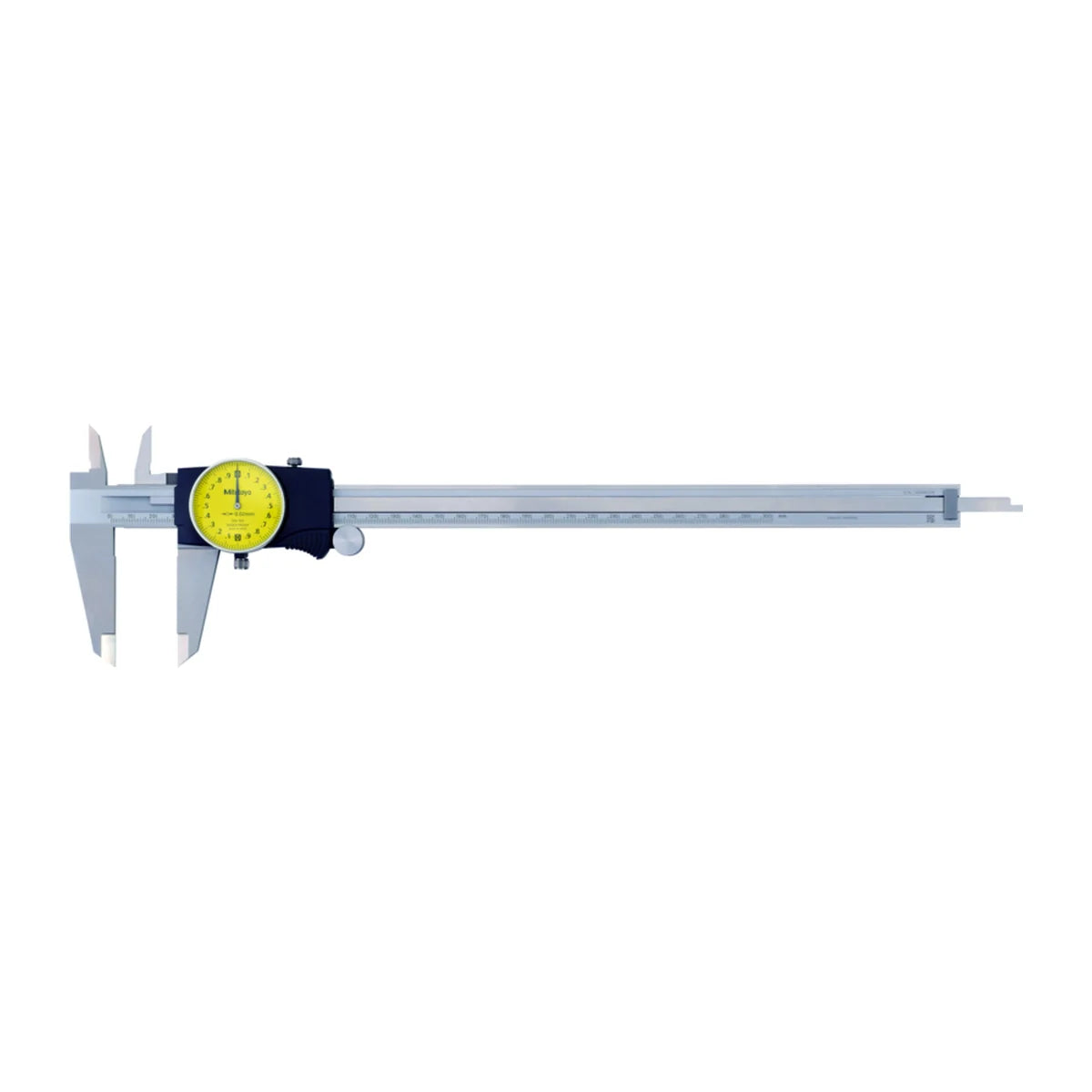

• Three ranges: 0 to 150mm, 0 to 200mm and 0 to 300mm
• Maximum permissible error of ±0.03mm up to 200mm and ±0.04mm on the 300mm model
• Easy-to-read yellow dial that reduces the effect of parallax
• Large finger rest for easy use
• ISO13385-1 compliant
