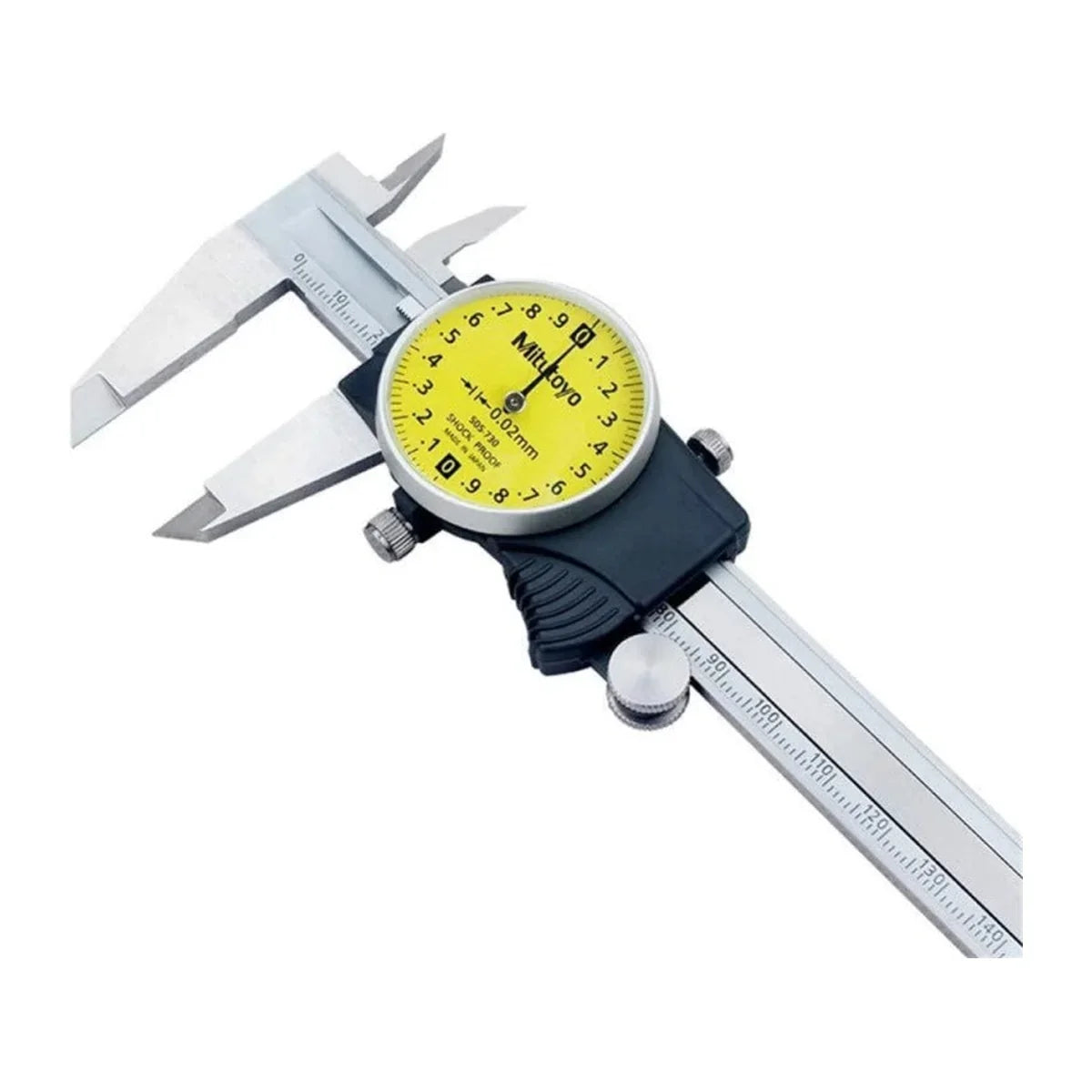

Mitutoyo 505-740J Dial Caliper 0-6" Inch

The Mitutoyo Series 505 inch dial caliper measures outside size, inside size, depth and steps, and shows the fine part of the reading on a round dial. The dial reads in 0.001" steps, with one turn of the pointer for each 0.2". It suits toolrooms, fitters, inspectors and apprentices who work in inches. The yellow dial reduces the effect of parallax and the large finger rest makes the caliper easy to use.

To read it, take the main scale reading and add the dial reading. Graduation is the smallest step the dial shows. Maximum permissible error is the most a reading can be out, so check both. To choose, pick the range you need: 0 to 6" is the finest, with ±0.001", and the 0 to 8" and 0 to 12" models are ±0.002".

Where this product is used

• Toolroom and workshop measuring in inches
• Measuring outside size, inside size, depth and steps in one tool
• Larger parts up to 12"

Features

• 0.001" graduation with 0.2" per revolution of the pointer
• Three ranges: 0 to 6", 0 to 8" and 0 to 12"
• Maximum permissible error of ±0.001" on the 6" model and ±0.002" on the 8" and 12" models
• Easy-to-read yellow dial that reduces the effect of parallax
• Large finger rest for easy use
• ISO13385-1 compliant
