Mitutoyo 7001-10 Dial Gauge Stand, Serrated Anvil

The Mitutoyo Series 7 dial gauge stand holds a dial indicator or Digimatic indicator over a flat anvil, so you can compare the size of parts. Toolrooms, quality control teams and inspectors use it for comparison measurements of size. Vertical fine adjustment is available with one-touch control, thanks to the parallel spring suspension.

An anvil is supplied as standard. The two options differ only by the anvil. Choose the anvil face you want: serrated (7001-10) or flat (7002-10). A dial indicator is not included with the stand. Compact dial indicators with a bezel of 31mm or 36mm are not suitable for these stands.

Where this product is used

• Comparison measurement of part size against a master
• Toolroom and quality control checks with a dial indicator or Digimatic indicator
• Holding an indicator at a set height over a reference anvil

Features

• One-touch vertical fine adjustment on a parallel spring suspension

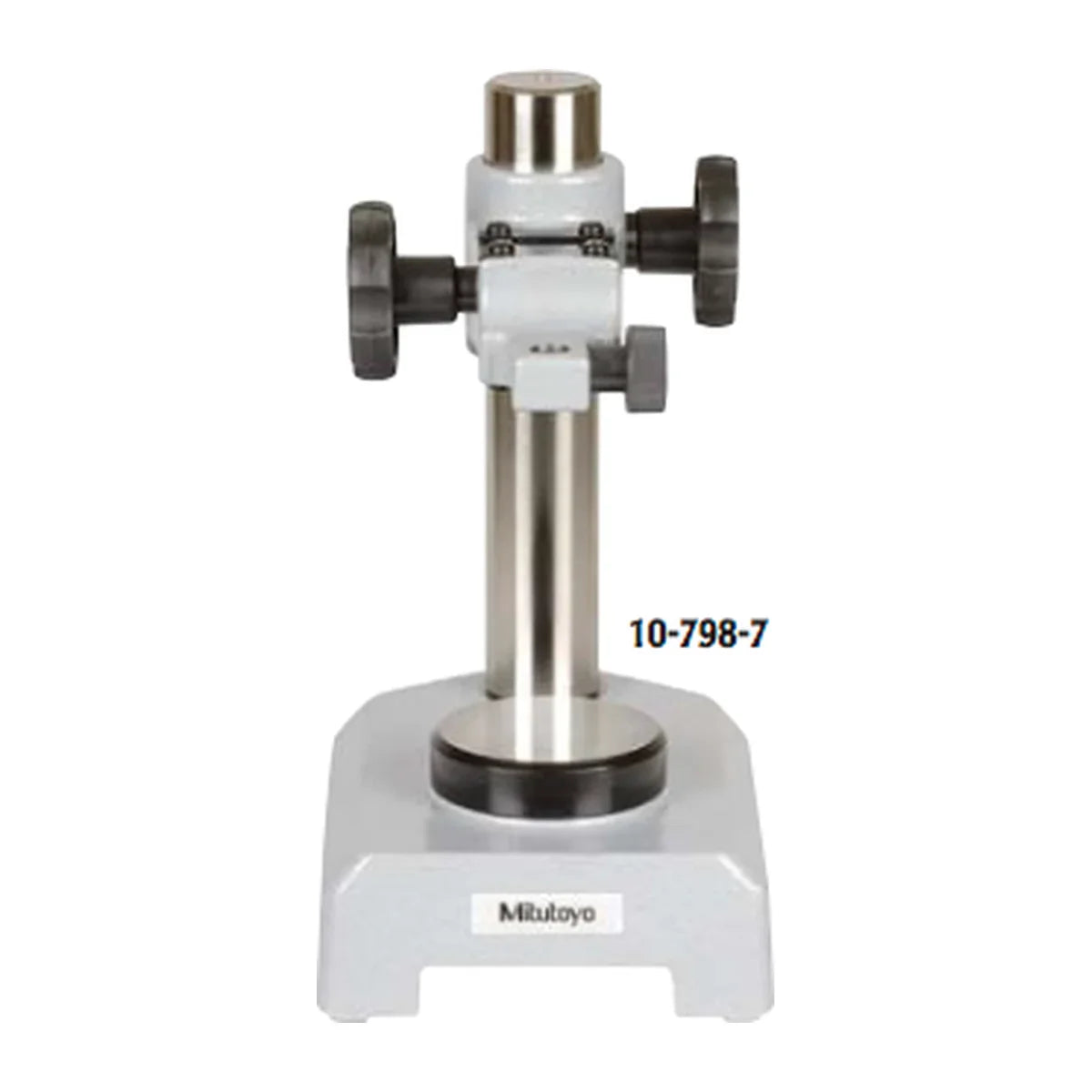

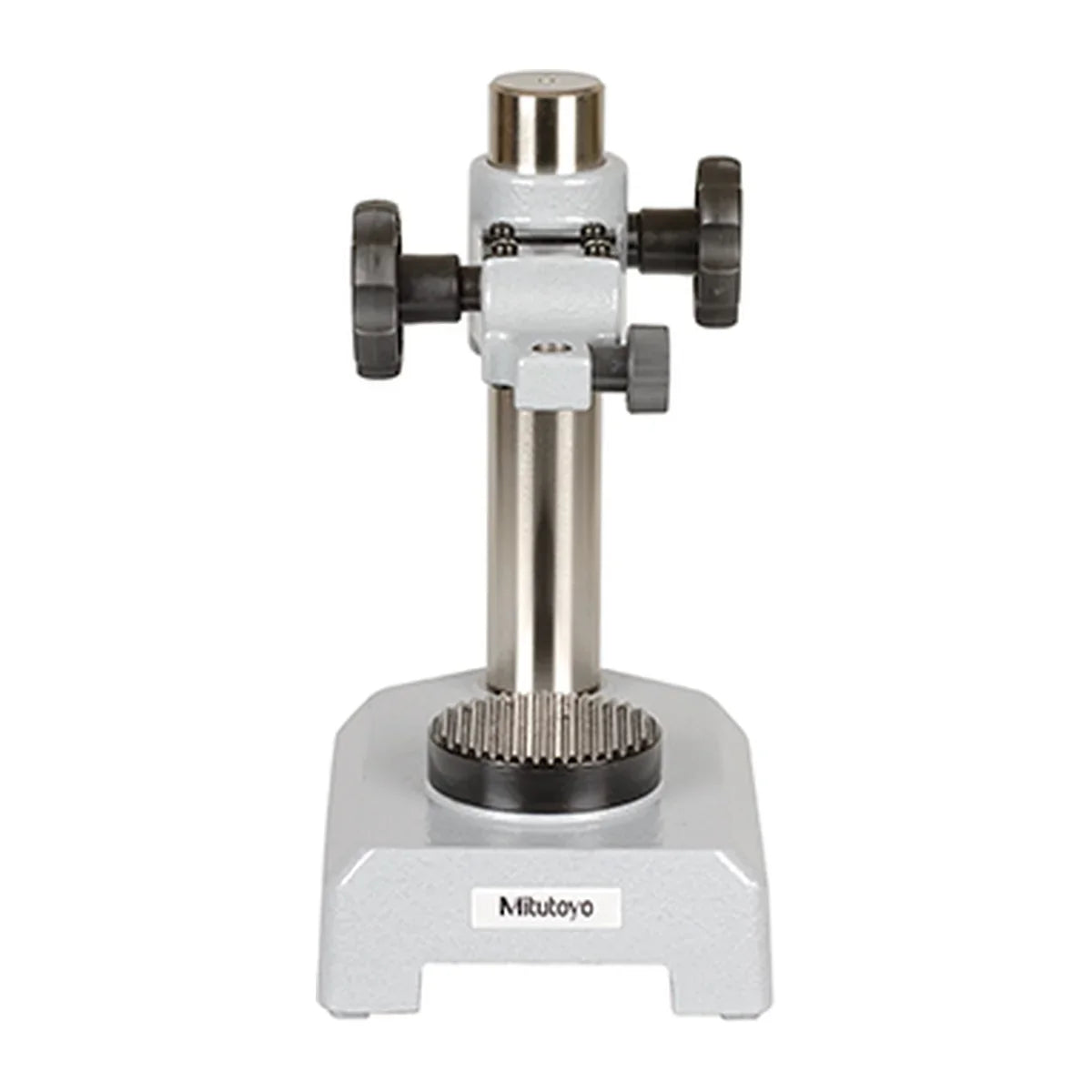

• Standard anvil of 58mm, serrated (7001-10) or flat (7002-10)
• Clamping range on the column of 0 to 95mm
• Stem hole for 8mm and 0.375" stems
• Anvil flat to 1.3 µm or better
• Perpendicularity of the stem hole to the anvil is better than 0.4/100
• Optional 90mm square anvil and domed anvil are available

Key specifications

Supplied with

• One dial gauge stand with its 58mm anvil
• Not included with the stand: dial indicator
