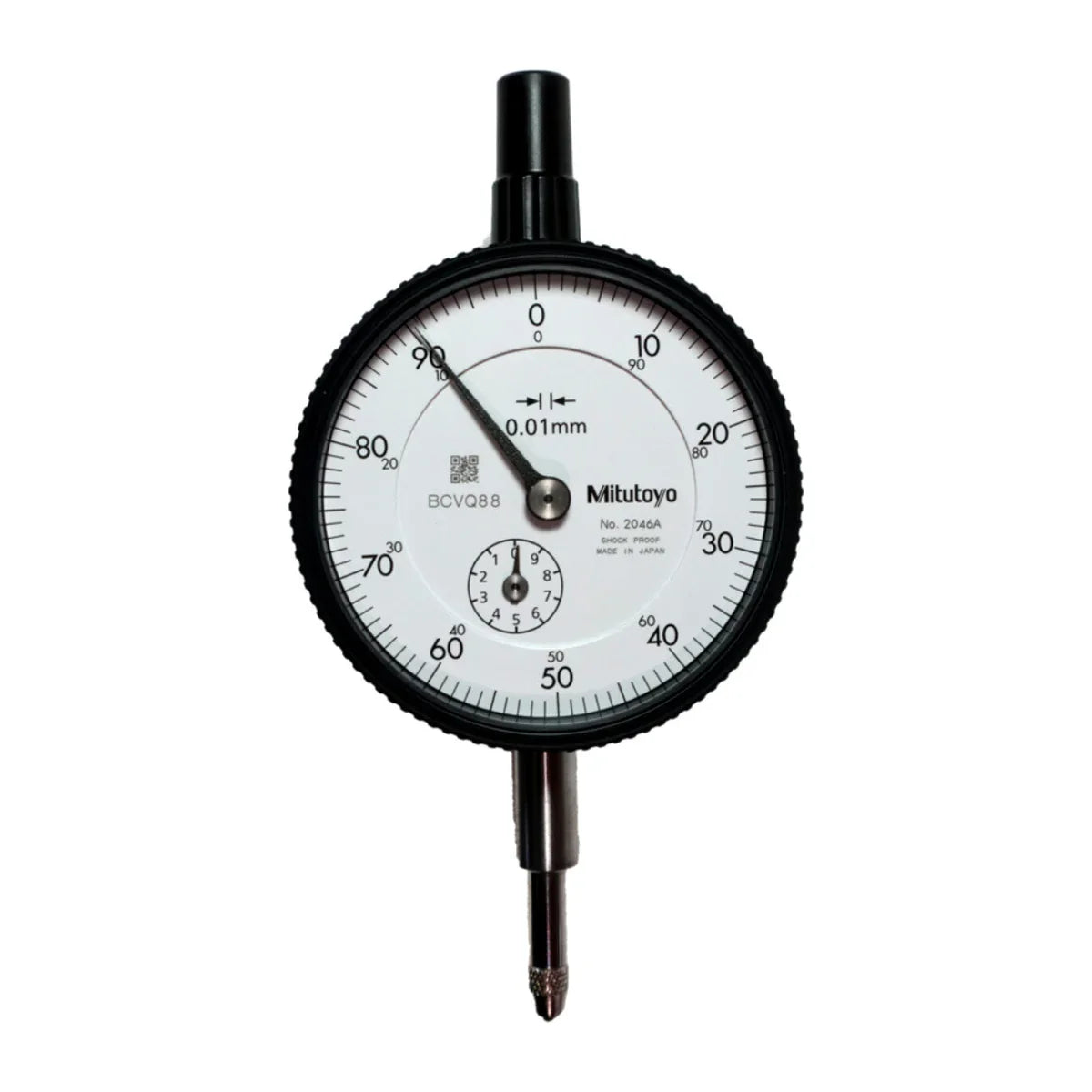

Mitutoyo 2046A Dial Indicator 10mm 0.01mm

The Mitutoyo 2046A is a Series 2 standard type dial indicator with 10mm of travel and 0.01mm graduation. It its most popular indicator, with excellent accuracy and durability. Machinists, toolrooms, fitters and inspectors use it for comparing parts, checking runout and setting up work. The case is oil- and water-tight, with quenched hardened stainless steel, a carbide contact point and a grand gear made of wear- and deformation-resistant material. An anti-reflective, hard surface coating improves scale visibility and resists scratches and chemicals.

Range is how far the plunger can travel, and the 1mm in brackets is how far it moves for one turn of the pointer. Graduation is the smallest step on the dial. Error is how far a reading can be out: 5 µm over a tenth of a turn, 9 µm over half a turn, 10 µm over one turn and 13 µm over the full range. For longer travel, look at the Series 2 long stroke indicators. For finer reading, look at the Series 2 models that read to a smaller step.

Where this product is used

• Comparing parts against a master
• Checking runout and alignment during machine setup
• General workshop and toolroom measurement

Features

• 10mm range with 0.01mm graduation and 1mm per revolution
• Maximum permissible error of 13 µm over the full range
• Hysteresis of 3 µm and repeatability of 3 µm
• Oil- and water-tight case with a carbide contact point
• Anti-reflective, hard surface coating for clear scale reading
• 57mm bezel, lug back, 8mm stem
• Measuring force of 1.4 N or less

Key specifications

Supplied with

• One dial indicator
