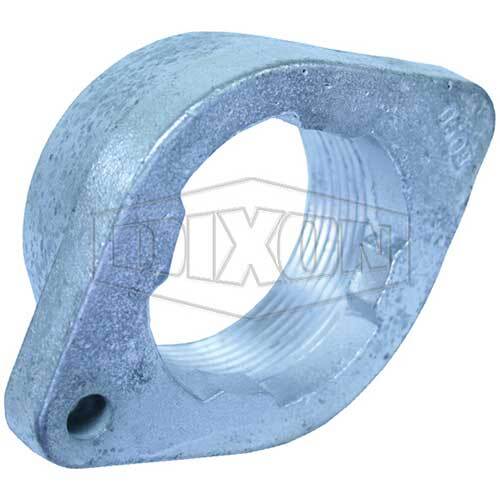

Dixon 08/014/02/007 2" (50mm) Ground Joint Wing Nut
Available
This Dixon wing nut is the 50mm (2") nut for the Minsup ground joint. Turning the wing nut on the spud connects or disconnects the two halves of the joint. The wing nut thread is 8 TPI, and the range material as SG iron (ISO 1083-400-250-15) with a zinc plated finish (AS1789).
Where this product is used
- Making up and breaking the 50mm (2") Minsup ground joint by hand
- Spare wing nut for a 50mm (2") ground joint spud
Features
- Wing nut for the Minsup 50mm (2") ground joint
- Wing nut thread: 8 TPI
- Material: SG iron (ISO 1083-400-250-15), zinc plated (AS1789)
- Part type: Wing nut
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Part type | Wing nut |
| Size | 50mm (2" nominal bore ID) |
| Material | SG iron to ISO 1083-400-250-15, zinc plated to AS1789 |
| Range thread designations | Wing nut 8 TPI, BSP tapered male to ISO 7-1, BSP parallel female to ISO 7-1 |
| Dixon part number | 08/014/02/007 |
Choosing the right option
The wing nut is a separate part in this range, so a complete joint needs a spud, a nut and tail and a wing nut. Before you order, check that the nut turns freely on the spud thread and that the nut size is 50mm (2") to match the rest of the joint.
Other parts in the Dixon 50mm (2") ground joint range: Dixon 08/014/02/002 2" (50mm) Ground Joint Spud Female BSP, Dixon 08/014/02/004 2" (50mm) Ground Joint Double Spud and Dixon 08/014/02/005 2" (50mm) Ground Joint Spud Male BSP.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dixon 08/014/02/007 2" (50mm) Ground Joint Wing Nut
SKU: A0132141 | Model: 08/014/02/007
Dixon 08/014/02/007: Minsup ground joint wing nut.
