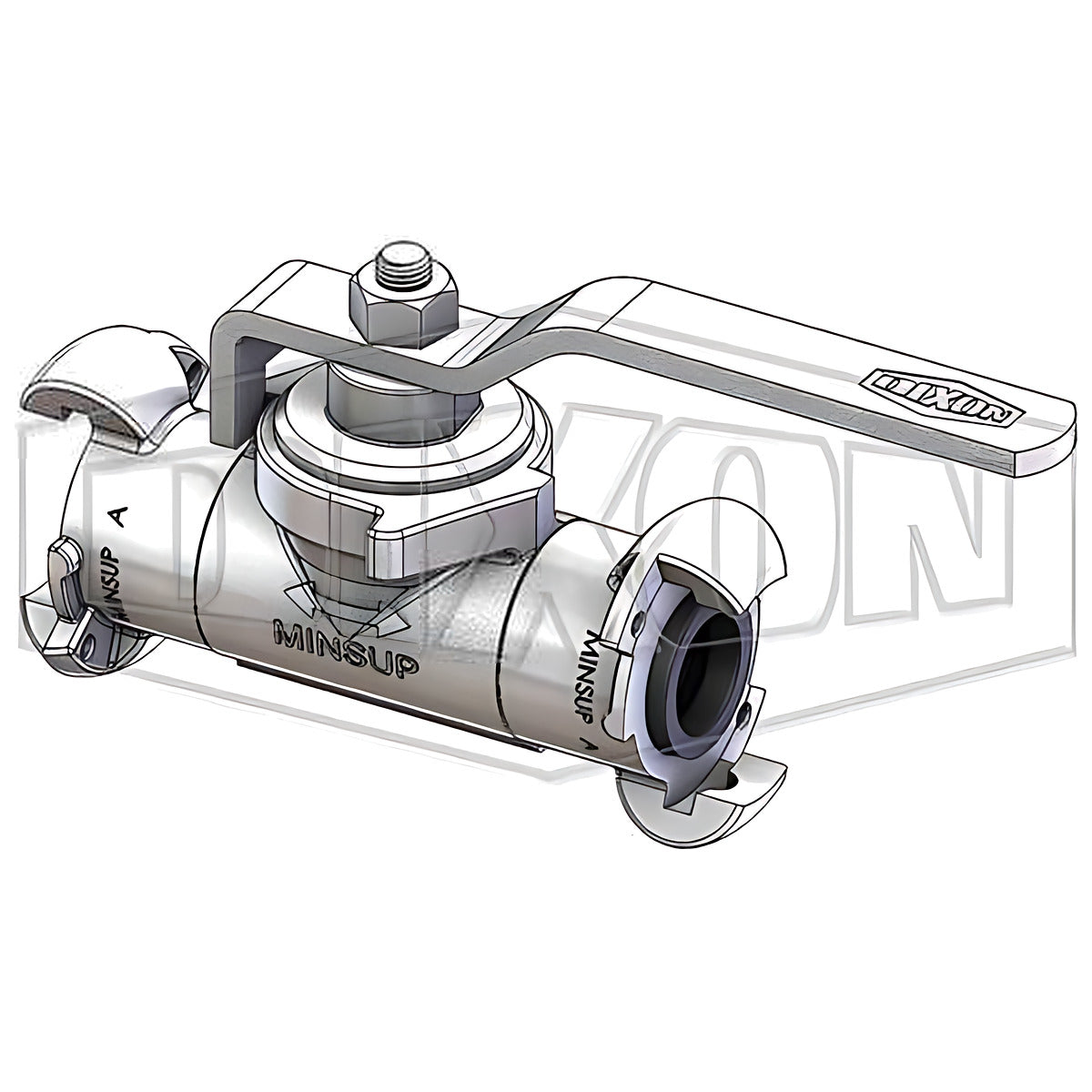

Dixon 08/062/110/00 1" Ball Valve Econovalve Minsup A-Type
Available
This Dixon Minsup Econovalve is a 25mm (1") general-purpose ball valve with a Minsup A-Type claw end on each side. It has a one-piece ball and stem for a positive on/off action, and the range is suitable for air and water in mining. The Econovalve range is rated at 300 PSI and -20 to 80°C, with a 2:1 safety rating.
The body is zinc-plated SG iron and the seal is nitrile butadiene; the 1" size is a top-loading design, so the valve can be maintained in line.
Where this product is used
- Air and water lines in underground and surface mining
- Isolation points where a solid iron-bodied valve with a pressed steel handle suits the duty
Features
- One-piece ball and stem for a positive on/off action
- Top-loading 1" design allows in-line maintenance
- Body: SG iron, zinc plated, seal: nitrile butadiene
- Working pressure 300 PSI, temperature -20 to 80°C
- End connections: Minsup A-Type x A-Type
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Valve type | Minsup Econovalve ball valve, one-piece ball and stem |
| End connections | Minsup A-Type x A-Type |
| Working pressure | 300 PSI |
| Temperature | -20 to 80°C |
| Safety rating | 2:1 |
| Body | SG iron (ISO 1083, 400-250-15), zinc plated (AS1789) |
| Seal | Nitrile butadiene |
| Ball and stem | SG iron (ISO 1083, 400-250-15) and copper, chrome plated (AS1192), one-piece ball and stem |
| Handle | Pressed mild steel |
| Dixon part number | 08/062/110/00 |
| Size | 1" (25mm) |
Choosing the right option
This is the standard valve with no lockout. Both ends are Minsup A-Type claw ends, which mate with European A-Type claw couplings, so the valve goes straight into a hose line that already uses A-Type couplings.
Related Dixon products: Dixon 08/062/110/00LO 1" Ball Valve Minsup Lockout A-Type, Dixon 08/062/104/00LO 1" Ball Valve Lockout Minsup BSP Female x 'A' Type and Dixon Minsup Econovalve Ball Valve Lockout Device.
