Dixon 90° elbow, 1" (25mm)

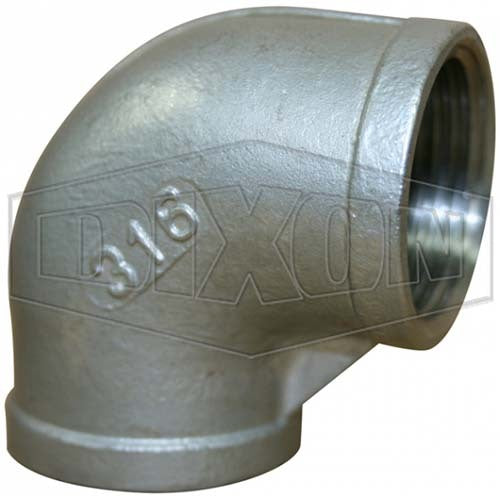

This Dixon 90° elbow turns a stainless pipe run through a right angle and has female BSP threads at both ends. It is made from 316 stainless steel (CF8M). It comes in 12 sizes from 1/8" to 4".

The 316 stainless steel BSP fittings are CF8M (316) stainless steel to ASTM A351, Class 150 lbs, with ISO 7-1 pipe threads, rated at 300 PSI (about 21 bar) for low-pressure service that includes chemical and corrosive environments as well as standard air and water.

Where this product is used

• Changes of direction in stainless pipework, in chemical, corrosive, air and water service
• Tight corners where each leg ends in a male BSP nipple or pipe thread

Features

• 90° elbow, female x female
• End connection: Female x female BSP
• Body: CF8M (316 stainless steel) to ASTM A351, Class 150 lbs
• Working pressure: 300 PSI (about 21 bar), for low-pressure service including chemical and corrosive environments
• Sizes: 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"

Key specifications

Choosing the right option

Both ends are female, so each leg needs a male BSP thread. BSP threads do not mate with NPT or metric threads, so confirm the thread on every mating part before you order.
