Dixon T31W-100050PM 1" x 1/2" BioPharm Weld Reducer SS PM Finish - SF4
Out of stock

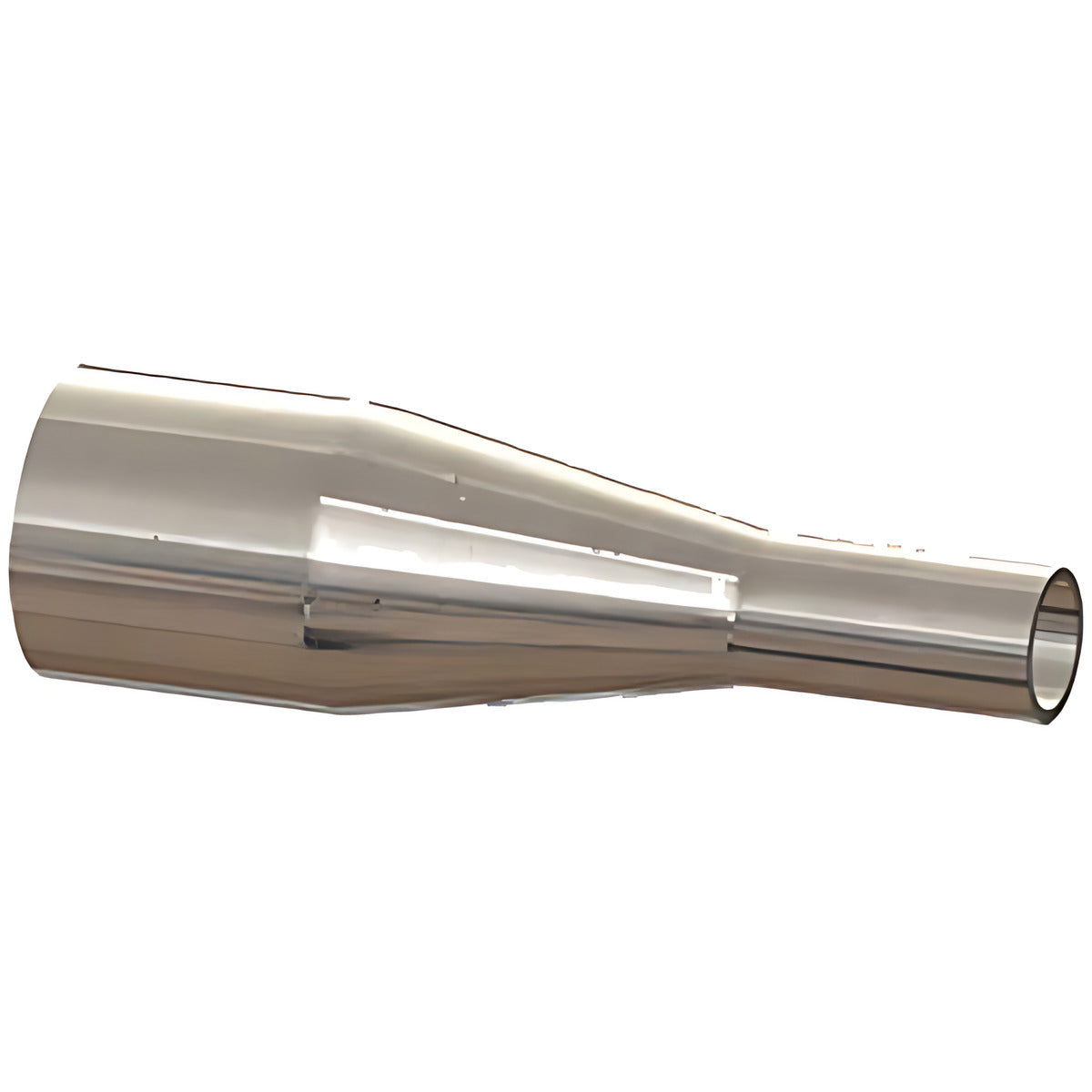

This Dixon BioPharm weld reducer joins two BPE tube sizes end to end on a common centreline (concentric), with a weld end on each side. It is 316 stainless steel and Dixon lists sizes from 3/4" x 1/2" up to 6" x 4" (manufacturer-stated).
The PM finish (SF4) has a mechanically polished outside (.812) and an inside that is mechanically polished and then electropolished (.381) (manufacturer-stated).
Dixon lists the reducer to ASME BPE 2012 (table DT-4.1.3-1) and lists eccentric reducers as a separate range. Its packing page says each fitting is capped, with a white cap marking the PM finish (manufacturer-stated).
Where this product is used
- Transport of liquid media in the biotechnology, cosmetic and pharmaceutical industries (manufacturer-stated).
- Stepping a welded BPE tube run down from a larger tube to a smaller one.
- Systems where an electropolished inside surface (.381) is specified for product-contact tube.
Features
- Ends: weld x weld, concentric (manufacturer-stated)
- Material: 316 stainless steel; Dixon's packing page lists the material as 316L (manufacturer-stated)
- PM finish (SF4): outside .812 mechanically polished, inside .381 mechanically polished and electropolished (manufacturer-stated)
- Listed to ASME BPE 2012 (table DT-4.1.3-1) (manufacturer-stated)
- Supplied capped, with a white cap marking the PM finish (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Material | 316 stainless steel (Dixon's packing page lists 316L) |
| Type | Weld x weld concentric reducer |
| Finish | PM (SF4): outside .812 mechanically polished, inside .381 mechanically polished and electropolished |
| Standard | ASME BPE 2012 (table DT-4.1.3-1) (manufacturer-stated) |
| Weld end chemical analysis (%) | Per ASME BPE Table DT-3: C 0.030 max, Mn 2.00 max, P 0.045 max, S 0.005 to 0.017, Si 1.00 max, Cr 16.00 to 18.00, Ni 10.00 to 15.00, Mo 2.00 to 3.00 (manufacturer-stated) |
| Sizes | 26 combinations from 3/4" x 1/2" to 6" x 4" |
PL and PM finish compared
| PL finish (SF1) | PM finish (SF4) | |
|---|---|---|
| Outside surface (OD) | Mechanically polished, .812 | Mechanically polished, .812 |
| Inside surface (ID) | Mechanically polished, .508 | Mechanically polished and electropolished, .381 |
| Dixon 2024 catalogue wording | OD 32 Ra, ID 20 Ra, mechanically polished | OD 32 Ra mechanically polished, ID 15 Ra mechanically polished and electropolished |
| Colour of the cap on each fitting | Blue | White |
Dixon prints the finish figures without a unit on its product pages. Its BPE surface finish table lists them as Ra maximum in micrometres (um), and the 2024 Dixon catalogue prints the same finishes as 32 Ra, 20 Ra and 15 Ra. Dixon describes mechanical polishing as smoothing the surface with tools and progressively finer abrasives, and electropolishing as an electrochemical process that removes material and leaves a smoother, mirror-like surface (all manufacturer-stated).
Key specifications
| Dixon part number | Size | Tube OD (mm) | Dimension A (mm) | Nominal wall (in) |
|---|---|---|---|---|
| T31W-075050PM | 3/4" x 1/2" | 19.05 x 12.7 | 101.60 | 0.065 x 0.065 |
| T31W-100050PM | 1" x 1/2" | 25.4 x 12.7 | 114.30 | 0.065 x 0.065 |
| T31W-100075PM | 1" x 3/4" | 25.4 x 19.05 | 101.60 | 0.065 x 0.065 |
| T31W-150050PM | 1-1/2" x 1/2" | 38.1 x 12.7 | 139.70 | 0.065 x 0.065 |
| T31W-150075PM | 1-1/2" x 3/4" | 38.1 x 19.05 | 127.00 | 0.065 x 0.065 |
| T31W-150100PM | 1-1/2" x 1" | 38.1 x 25.4 | 127.00 | 0.065 x 0.065 |
| T31W-200050PM | 2" x 1/2" | 50.8 x 12.7 | 196.85 | 0.065 x 0.065 |
| T31W-200075PM | 2" x 3/4" | 50.8 x 19.05 | 184.15 | 0.065 x 0.065 |
| T31W-200100PM | 2" x 1" | 50.8 x 25.4 | 184.15 | 0.065 x 0.065 |
| T31W-200150PM | 133.35 | |||
| T31W-250050PM | 2-1/2" x 1/2" | 63.5 x 12.7 | 247.65 | 0.065 x 0.065 |
| T31W-250075PM | 2-1/2" x 3/4" | 63.5 x 19.05 | 234.95 | 0.065 x 0.065 |
| T31W-250100PM | 2-1/2" x 1" | 63.5 x 25.4 | 234.95 | 0.065 x 0.065 |
| T31W-250150PM | 2-1/2" x 1-1/2" | 63.5 x 38.1 | 184.15 | 0.065 x 0.065 |
| T31W-250200PM | 2-1/2" x 2" | 63.5 x 50.8 | 139.70 | 0.065 x 0.065 |
| T31W-300100PM | 3" x 1" | 76.2 x 25.4 | 0.065 x 0.065 | |
| T31W-300150PM | 3" x 1-1/2" | 76.2 x 38.1 | 0.065 x 0.065 | |
| T31W-300200PM | 3" x 2" | 76.2 x 50.8 | 0.065 x 0.065 | |
| T31W-300250PM | 3" x 2-1/2" | 76.2 x 63.5 | 0.065 x 0.065 | |
| T31W-400100PM | 4" x 1" | 101.6 x 25.4 | 393.70 | 0.083 x 0.065 |
| T31W-400150PM | 4" x 1-1/2" | 101.6 x 38.1 | 342.90 | 0.083 x 0.065 |
| T31W-400200PM | 4" x 2" | 101.6 x 50.8 | 298.45 | 0.083 x 0.065 |
| T31W-400250PM | 4" x 2-1/2" | 101.6 x 63.5 | 247.65 | 0.083 x 0.065 |
| T31W-400300PM | 4" x 3" | 101.6 x 76.2 | 196.85 | 0.083 x 0.065 |
| T31W-600300PM | 6" x 3" | 152.4 x 76.2 | 254.00 | 0.109 x 0.065 |
| T31W-600400PM | 6" x 4" | 152.4 x 101.6 | 254.00 | 0.109 x 0.083 |
Dimension A and the tube OD are from Dixon's Australian catalogue; the nominal wall (large end x small end) is from the 2024 Dixon catalogue, in inches as Dixon prints it. Dimension A is not shown for the four 3" reducers (T31W-300100, T31W-300150, T31W-300200 and T31W-300250) because Dixon's catalogues give different figures for them, and the size of T31W-200150PM is not shown. Ask us to confirm these before ordering.
Selecting the right option
Read the size as large end x small end, and check both tube ODs and the nominal wall in the table. Choose the finish from your process specification: PM is electropolished inside and PL is mechanically polished inside and out. For a reducer where the two tubes must sit on a common centreline, concentric is the right type; ask us about Dixon's eccentric range if you need one.
Related products
Related Dixon products: Dixon BioPharm Weld Reducer SS PL finish - SF1, Dixon BioPharm Weld Tee PM Finish - SF4, Dixon BioPharm 90° Weld Elbow PM Finish - SF4 and Dixon Automatic Weld Ferrule PM Finish - SF4.
