Dixon 42MP-E50 1/2" Black EPDM Standard Clamp Gasket 3-Green Dots

This Dixon EPDM gasket seals clamp-style sanitary joints in the 1/2 in and 3/4 in sizes. It is black, peroxide cured and marked with three green dots, and Dixon lists it as meeting 21CFR177.2600 and as having passed USP Class VI cytotoxicity testing (manufacturer-stated).

Dixon states that the gasket materials are approved by 3A and USDA and comply with FDA 21CFR177 requirements (manufacturer-stated). The part numbers are in the 42MP-E series: 42MP-E50 for 1/2 in and 42MP-E75 for 3/4 in.

Where this product is used

• Gasket between two ferrules in a 1/2 in or 3/4 in clamp-style sanitary joint (manufacturer-stated).
• Replacement gasket for Dixon fractional-size clamp-style sanitary fittings.

Features

• Material: EPDM, black, peroxide cured (manufacturer-stated)
• Colour code: Three green dots (manufacturer-stated)
• Compliance: 21CFR177.2600 and USP Class VI cytotoxicity testing (manufacturer-stated)
• Sizes in this listing: 1/2 in, 3/4 in

Common specifications

Key specifications

Nominal sizes in mm are those Dixon prints against each inch size in its hygienic fittings catalogue.

Selecting the right option

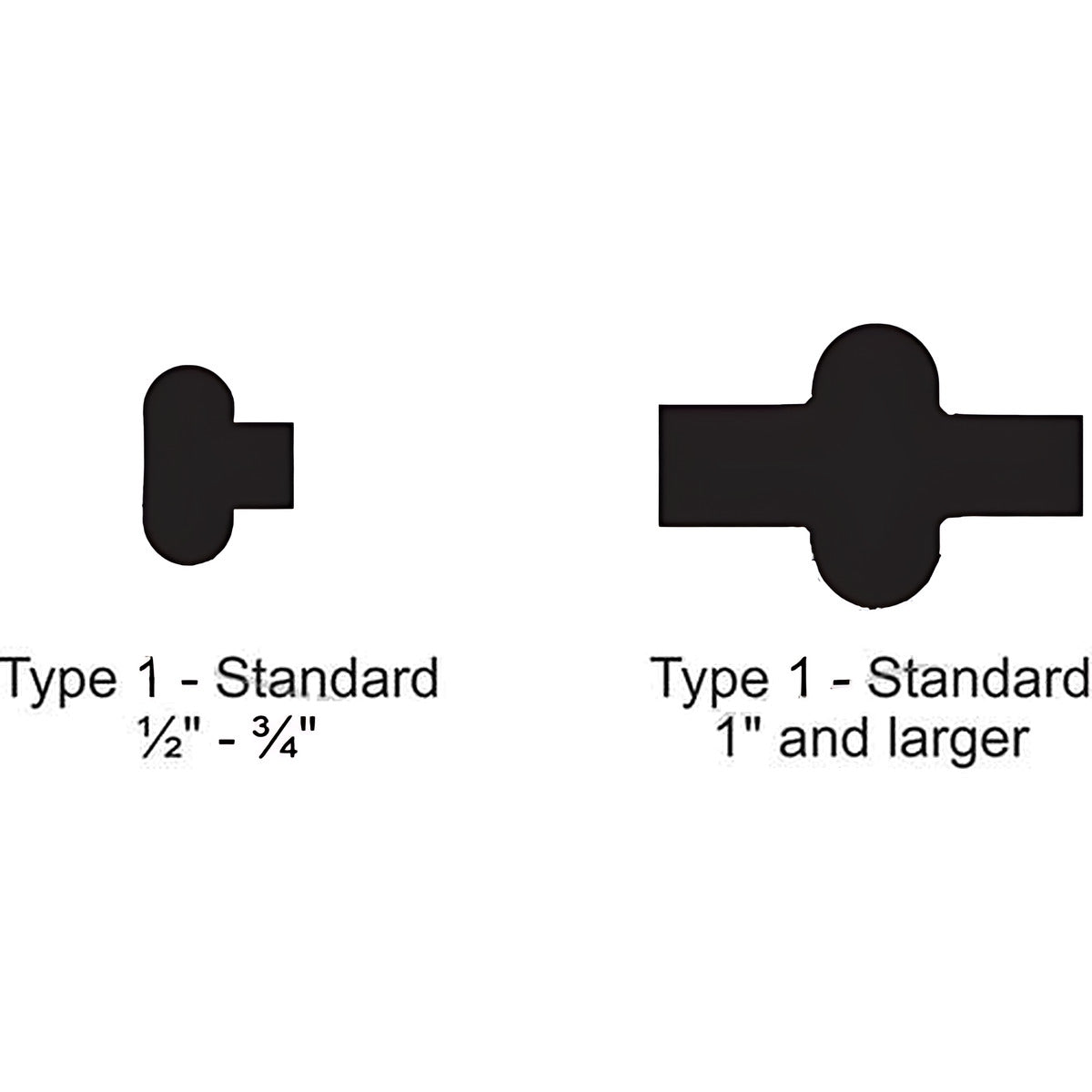

Match the gasket to the ferrule size of the clamp joint, and to the material that suits your product and cleaning chemicals. Temperature ratings for clamp gasket materials vary between Dixon publications, so no range is given here; ask us to confirm the rating for your duty before you specify hot service. The 1/2 in and 3/4 in gaskets use the 42MP series and the 1 in and larger gaskets use the 40MP series, so do not mix the two when ordering. Dixon's compound guide rates EPDM as satisfactory (A) for aqueous sodium hydroxide and 30% acetic acid, and as unsatisfactory (D) for gasoline and kerosene (manufacturer-stated). Those ratings assume static conditions at ambient temperature, and Dixon describes the guide as general only, with suitability for a specific application resting with the end user (manufacturer-stated).
