Dixon Stainless steel camlock spool adaptor, 2" (50mm)
Available

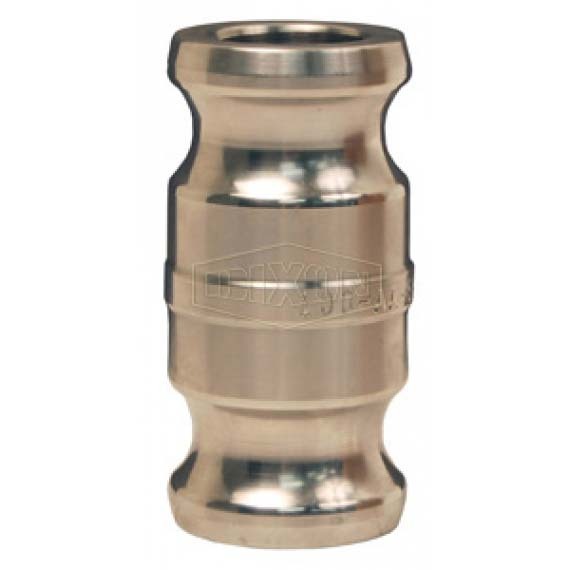

This Dixon Type AA spool adaptor in stainless steel is an adaptor x adaptor: both ends are the male half of the cam and groove joint, so it joins two couplers. It comes in 12 sizes, from 1" (25mm) to 6" (150mm). The stainless steel spool adaptors come in its main camlock range, with a stainless steel grade of CF8M (316 equivalent) to ASTM-A351 for the range.
Sizes written as two numbers, for example 40 x 50mm, have a different size on each end, so the spool adaptor also changes size between two couplers of different sizes. The sizes are rated at 250 PSI for 25, 32, 40, 40 x 50 and 50mm; 125 PSI for 50 x 75, 65 x 75 and 75mm; 100 PSI for 75 x 100 and 100mm; 75 PSI for 100 x 150 and 150mm. A spool adaptor carries no seal of its own: the pressure rating is based on the seal of the mating coupler. Pressure ratings are based on mating Dixon fittings at an ambient temperature of 21°C with the standard seal, and asks you to consult Dixon for higher temperatures or other unusual conditions.
Where this product is used
- Joining two couplers of the same size, or of two different sizes where the part number has two sizes, in a quick-connect hose or pipe line
- Quick-connect transfer of liquids such as cooling water, fuels, chemicals, adhesives and dyes
- Lines where both ends need to connect to couplers, for example between two hose runs that each end in a Type C or Type D coupler
Features
- Type AA spool adaptor: adaptor x adaptor, a male cam and groove end on both sides
- Body: stainless steel grade CF8M (316 equivalent)
- Working pressure: 250 PSI for 25, 32, 40, 40 x 50 and 50mm, 125 PSI for 50 x 75, 65 x 75 and 75mm, 100 PSI for 75 x 100 and 100mm, 75 PSI for 100 x 150 and 150mm
- Pressure rating is based on the seal of the mating coupler
- Interchanges with products made to commercial item description A-A-59326D
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Configuration | Type AA spool adaptor, adaptor x adaptor |
| Body | Stainless steel grade CF8M (316 equivalent) |
| Seal | None fitted: the pressure rating is based on the seal of the mating coupler |
| Working pressure | 250 PSI for 25, 32, 40, 40 x 50 and 50mm, 125 PSI for 50 x 75, 65 x 75 and 75mm, 100 PSI for 75 x 100 and 100mm, 75 PSI for 100 x 150 and 150mm |
| Sizes in store | 1" (25mm), 1-1/4" (32mm), 1-1/2" (40mm), 1-1/2" x 2" (40 x 50mm), 2" (50mm), 2" x 3" (50 x 75mm), 2-1/2" x 3" (65 x 75mm), 3" (75mm), 3" x 4" (75 x 100mm), 4" (100mm), 4" x 6" (100 x 150mm), 6" (150mm) |
Choosing the right option
Check the size on each end first: a part number with two sizes, such as 1520-AA-SS, changes size from one coupler to the other. Make sure both mating parts are couplers (Type B, C or D) of the matching size, and that their seal suits your media. Dust caps and dust plugs must not be used in any pressure application.
Related Dixon products: Dixon Cam & Groove Spool Adaptor Type AA Aluminium, Dixon Cam & Groove Spool Adaptor Type AA - Bronze and Dixon Stainless Steel BSP Cam & Groove Type C Coupler x Hose Shank.
| Option | Part number | SKU |
|---|---|---|
| 25 | 100-AA-SS | A0067627 |
| 32 | 125-AA-SS | A0067648 |
| 40 | 150-AA-SS | A0067782 |
| 40 x 50 | 1520-AA-SS | A0067807 |
| 50 | 200-AA-SS | A0067867 |

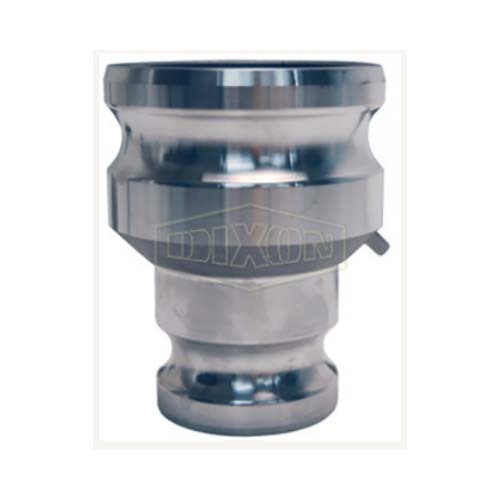

| 50 x 75 | 2030-AA-SS | A0067913 |
| 65 x 75 | 2530-AA-SS | A0067933 |
| 75 | 300-AA-SS | A0067948 |
| 75 x 100 | 3040-AA-SS | A0067999 |
| 100 | 400-AA-SS | A0068026 |

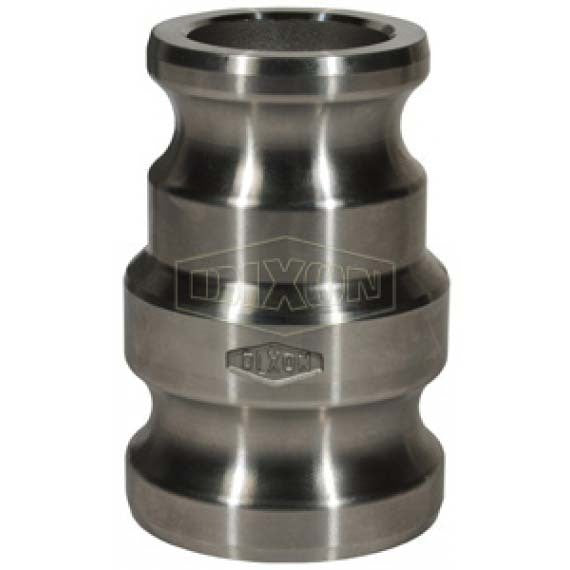

| 100 x 150 | 4060-AA-SS | A0068064 |
| 150 | 600-AA-SS | A0068210 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dixon Cam & Groove Spool Adaptor Type AA Stainless Steel: 50
SKU: A0067867 | Model: 200-AA-SS
Dixon 200-AA-SS: 2" (50mm) stainless steel camlock Type AA spool adaptor, adaptor x adaptor, 250 PSI. Body: Stainless steel grade CF8M (316 equivalent).
