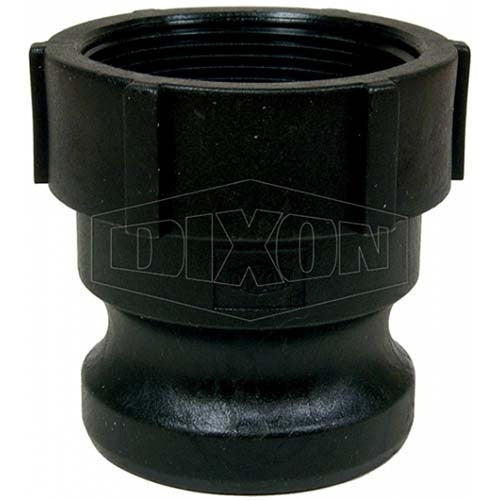

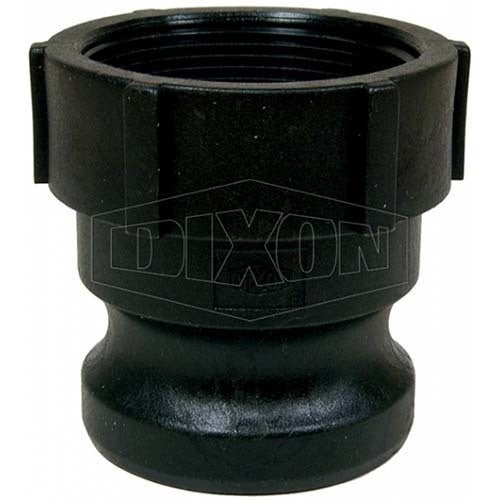

Dixon 15mm Polypropylene Cam & Groove | AIMS Industrial

• Polypropylene construction handles the temperature, pressure and media of industrial duty.

Use

• Designed for use with liquids

Construction

• Polypropylene 30% glass filled

How it works

• The coupling is connected by simply opening the coupler arms and inserting the adapter into the coupler. The two cam arms are then closed under normal hand pressure to complete the joint.

Note

• The adaptor portion of the 15mm size uses the 20mm standard body size.

Safety notes

• Under no circumstances should cam and groove couplings be used for compressed air or steam service!
• Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F/21°C with a standard seal installed.
• Pressure rating is based on the seal of the mating part
• Polypropylene cam & groove should not be mixed with aluminum fittings.
