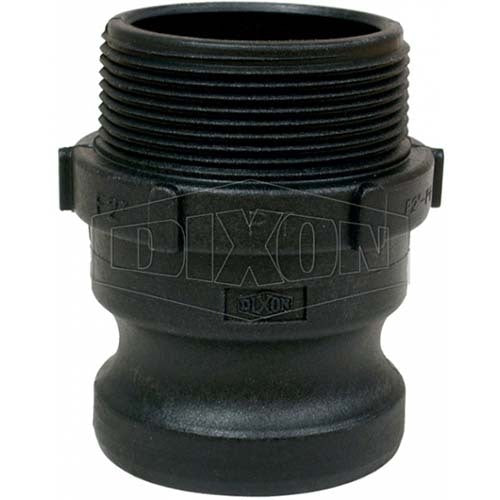

Dixon 15mm Polypropylene Cam & Groove Type F Adaptor x Male BSP PPF050A
Available
Polypropylene construction handles the temperature, pressure and media of industrial duty. Use. Designed for use with liquids. Construction. Polypropylene 30% glass filled. How it works. The coupling is connected by simply opening the coupler arms and inserting the adapter into the coupler. The two cam arms are then closed under normal hand pressure to complete the joint. Safety notes. Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F/21°C with a standard seal installed. Pressure rating is based on the seal of the mating part. Polypropylene cam & groove should not be mixed with aluminum fittings.
Key Specifications
| Size | 15 mm BSP / 20 mm / 25 mm / 32 mm / 40 mm / 50 mm / 75 mm / 100 mm |
| Pressure Rating | 100 PSI at -18°C, 125 PSI at 21°C, 70 PSI at 65°C / 70 PSI at -18°C, 90 PSI at 21°C, 50 PSI at 65°C |
| Material | Polypropylene |
| Adapter Size | 20 mm |
| Pressure Rating at -18°c | 100 psi / 70 psi |
| Pressure Rating at 21°c | 125 psi / 90 psi |
| Pressure Rating at 65°c | 70 psi / 50 psi |
Where This Is Used
- Designed for use with liquids.
Features
- The coupling is connected by simply opening the coupler arms and inserting the adapter into the coupler.
- The two cam arms are then closed under normal hand pressure to complete the joint.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
15
Model Number: PPF050A
-
20
Model Number: PPF075A
-
25
Model Number: PPF100A
-
32
Model Number: PPF125A
-
40
Model Number: PPF150A
-
50
Model Number: PPF200A
-
75
Model Number: PPF300A
-
100
Model Number: PPF400A
