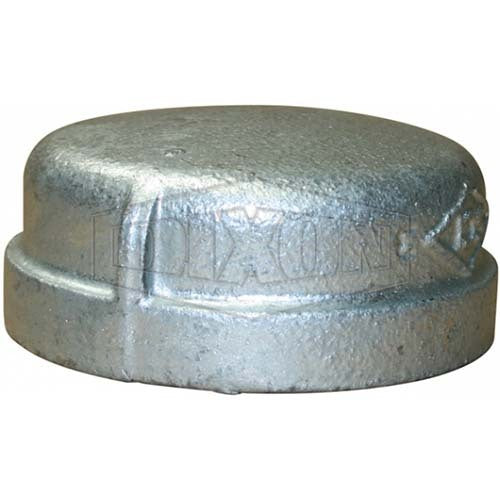

Dixon Cap, 3/4" (20mm)

This Dixon cap closes off the end of a BSP threaded pipe run and is made from galvanised malleable iron. It comes in 11 sizes from 1/4" to 4". The galvanised malleable iron BSP fittings are ISO 5922 malleable cast iron, hot dip galvanised to ISO 1461, with ISO 7-1 pipe threads, for general low-pressure air and water at a working pressure of 150 PSI (about 10 bar).

Where this product is used

• Closing the end of a pipe run or a spare branch in air and water pipework
• Sealing a line temporarily during pressure tests, maintenance or future extension

Features

• Cap with BSP thread
• End connection: BSP screwed
• Body: ISO 5922 malleable cast iron, hot dip galvanised to ISO 1461
• Working pressure: 150 PSI (about 10 bar), for general low-pressure air and water
• Sizes: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"

Key specifications

Choosing the right option

A cap closes the end of a pipe, so match its thread to the end you are closing. BSP threads do not mate with NPT or metric threads, so confirm the thread on every mating part before you order.
