Dixon 304 stainless filter for York check valves BYCF010

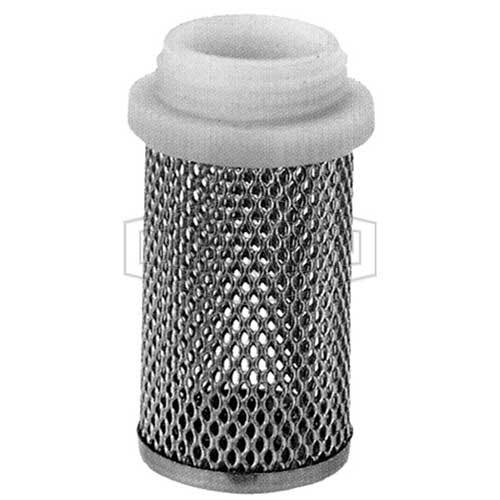

This Dixon filter is a 304 stainless steel strainer made to suit the Dixon York check valve of the same size, with a nylon thread. It comes in 10 sizes, from 3/8" (10mm) to 4" (100mm). It has a degree of filtration of 1200 micron for the 10mm to 50mm sizes and 2000 micron for the 65mm to 100mm sizes.

Each filter part number pairs with the York check valve that has the same size suffix, for example BYCF010 with BYCV010.

Where this product is used

• Fitting a strainer to a Dixon York brass check valve
• Holding larger particles back from the check valve on water, oil or compressed air lines

Features

• 304 stainless steel strainer, made to suit the York check valve
• 1200 micron filtration for 10mm to 50mm, 2000 micron for 65mm to 100mm
• Nylon thread, conforming to ISO228, equivalent to DIN259 and BS2779
• Part number suffix matches the York check valve it suits

Key specifications

Choosing the right option

Order the filter with the same size suffix as the check valve. Check the micron rating against the particles in your line.

Related Dixon valves: Dixon Brass Inline Spring Check Valve York Plastic Stem, Dixon Spring-Loaded Inline Check Valve BSP Brass and Dixon Brass Inline Spring Check Valve Europa Brass Stem.
