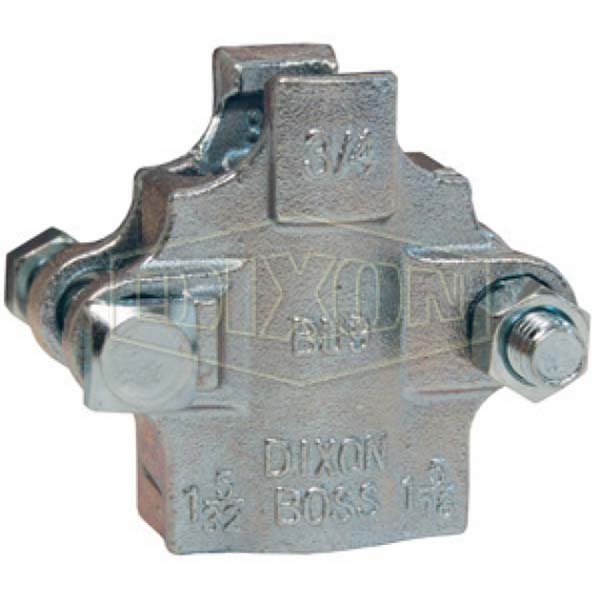

Dixon Clamp 2 Bolt Type, 2 Gripping Fingers Global Investment Cast Carbon Steel

Use

• The correct size Boss Clamp must be used.
• Bolts in Boss Clamps are designed to bend as they are tightened. This allows the clamp to conform to the hose outside diameter.
• Always tighten bolts to their specified torque value.
• Periodic retightening of bolts is required due to the "cold flow" phenomenon present in all rubber hoses.
• Boss Clamps are for single use only! Once removed they are to be discarded.

Specifications

• Recommended for steam service up to 450°F (232°C).

Features

• 2-bolt type clamp with 2 gripping fingers and 2 clamp sections

Instructions

• 2 Bolt Boss Clamp Bolt Tightening Sequence; Using a torque wrench; begin tightening the bolts as follows:

1. First bolt (nut facing assembler) 1 full turn.
2. Second bolt (opposite first bolt) 1 full turn.
3. Repeat procedures "a" and "b" until both bolts have reached the recommended torque.
4. Remove assembly from vise.

Safety notes

• The bolts used in the Boss interlocking clamps are not standard bolts. They vary from standard bolts in their length; diameter; overall thread length and material hardness. These bolts can be retorqued, but it is not recommended that the bolts or clamps be reused; as they are designed for a single bend only. Torque values for clamps are based on dry bolts. The use of lubricant on bolts will adversely affect clamp performance. Do not lubricate nuts and bolts. Recommended torque rating in ft. lbs.
• Worn-out hose couplings can be dangerous. They should be checked regularly and replace when necessary. Each coupling user should review applications and add safety devices where indicated.
• Note. Pressurized steam is an extremely dangerous commodity. Only hose; fittings; clamps and accessory items that have been approved for steam service should ever be used! Never use an unapproved item for steam service. Always follow the manufacturer's product recommendations for pressurized steam handling.
