Dixon Male Tri-Clover crimp stem, 1"

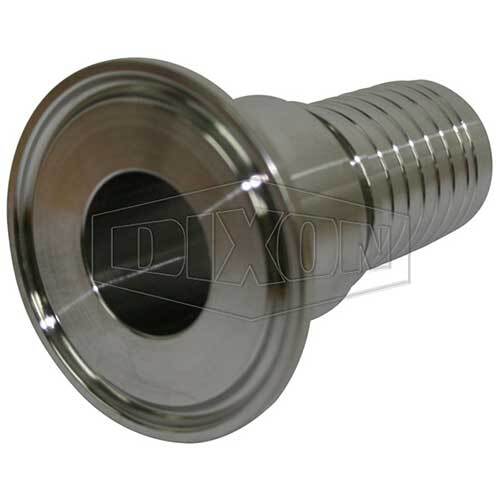

This Dixon Holedall stem has a male clamp-type (Tri-Clover) end and an external crimp hose end, in 316 stainless steel. It comes in six sizes from 1" (HA0640) to 4" (HA0645), and it is made for inch-bore hose. The stem is crimped onto the hose with a Holedall external crimp ferrule and joins a mating clamp-type fitting with a sanitary clamp and gasket.

Its stems are made to suit inch-bore hose and not metric hose, so measure the hose inside diameter before you order.

Where this product is used

• Hygienic hose assemblies that connect to clamp-type (Tri-Clover) process fittings
• Stainless steel hose assemblies for hygienic duty that need a male clamp-type end

Features

• 316 stainless steel external crimp stem
• Male clamp-type (Tri-Clover) end
• Made to suit inch-bore hose, not metric hose
• Six sizes from 1" to 4"

Key specifications

Choosing the right option

Choose the stem by the inside diameter of the hose, in inches, then choose a ferrule to suit the hose outside diameter. The matching 304 stainless steel Holedall external crimp ferrules is HA0249 (1"), HA0250 (1-1/2"), HA0251 (2"), HA0252 (2-1/2"), HA0253 (3") and HA0301 (4"), each with a dash number that is chosen by the hose outside diameter.

Related Dixon products: Dixon External Crimp Female Stem Holedall BSM (RJT) and Dixon Tube Crimp Stem Buttweld.
