Dixon FFS-LVQRT-65B Fire Hydrant Landing Valve QLD, DN65 BSP Male x QRT
Out of stock
This Dixon landing valve is the Queensland version, with a DN65 QRT (Queensland round thread) male outlet and a DR brass body. Dixon lists two inlet options: a DN65 BSP male thread, or a DN80 roll grooved inlet with an internal DN65 BSP female thread (manufacturer-stated).
Dixon rates it at 1400 kPa working pressure and 3200 kPa test pressure, lists Watermark certification and compliance with AS2419.2, and gives a tested pressure loss of under 25 kPa at 10 L/s to AS2419.3 part 4.3.4 (manufacturer-stated). It comes with a plastic cap and chain (manufacturer-stated).
Where this product is used
- Hydrant outlets on Queensland fire services that use a QRT male outlet (manufacturer-stated).
- Vertical or horizontal mounting; Dixon states the valve suits both when installed to AS2419.1 (manufacturer-stated).
Features
- Outlet: DN65 QRT (Queensland round thread) male, 2 TPI, 12.7 pitch (manufacturer-stated)
- DR brass body, in accordance with AS2345 and AS1565 (manufacturer-stated)
- Inlet options: DN65 BSP male thread, or DN80 roll grooved with internal DN65 BSP female thread (manufacturer-stated)
- Complete with plastic cap and chain (manufacturer-stated)
- Working pressure 1400 kPa, test pressure 3200 kPa (manufacturer-stated)
- Watermark certification; compliant with AS2419.2 (manufacturer-stated)
- Suitable for vertical and horizontal mounting to AS2419.1 (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Outlet | DN65 QRT male (2 TPI, 12.7 pitch) |
| Inlet options | DN65 BSP male thread, or DN80 roll grooved with internal DN65 BSP female thread |
| Body material | DR brass, in accordance with AS2345 and AS1565 (manufacturer-stated) |
| Roll groove | DN80 machined roll groove to ANSI/AWWA C606 |
| BSP threads | DN65 BSP to ISO 7.1 (manufacturer-stated) |
| Pressure | 1400 kPa working pressure, 3200 kPa test pressure |
| Pressure loss | Under 25 kPa at 10 L/s, tested to AS2419.3 part 4.3.4 (manufacturer-stated) |
| Approvals | Watermark certification; compliant with AS2419.2 (manufacturer-stated) |
| Mounting | Vertical or horizontal, to AS2419.1 (manufacturer-stated) |
| Supplied with | Plastic cap and chain |
Key specifications
| Dixon part number | Store size option | Inlet | Outlet | Material |
|---|---|---|---|---|
| FFS-LVQRT-65B | 2-1/2" BSP x 2-1/2" QRT | DN65 BSP male thread | DN65 QRT male | DR brass |

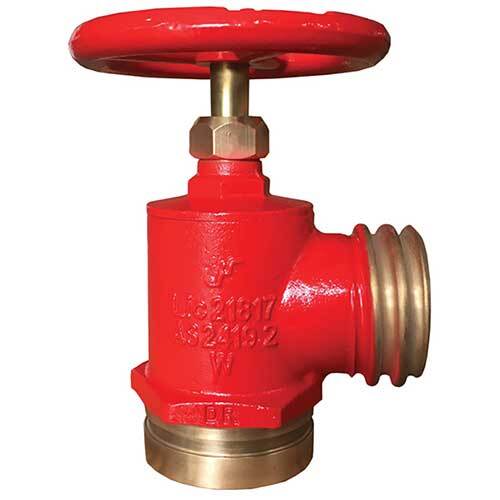

| FFS-LVQRT-RGB | 3" RG x 2-1/2" QRT | DN80 roll grooved with internal DN65 BSP female thread | DN65 QRT male | DR brass |
Selecting the right option
Choose the inlet to match your pipework: the BSP male version screws into a DN65 female BSP port, and the roll grooved version suits a DN80 grooved pipe end and has an internal DN65 BSP female thread. Check the outlet against your Queensland fire authority requirements before ordering. Dixon also lists a brass QRT cap and chain (FFS-LVCB-QRT) as an alternative to the plastic one supplied.
