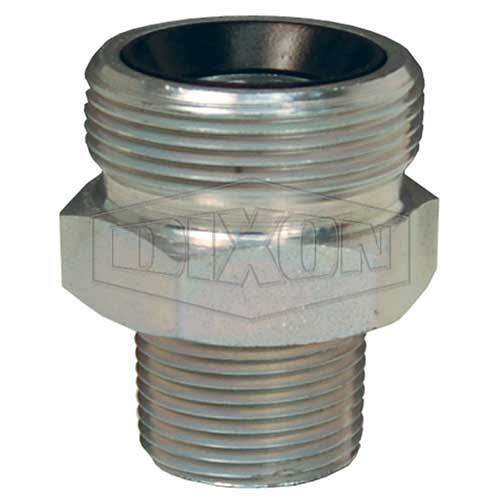

Dixon Boss male spud, 1"

This Dixon Boss ground joint male spud has a BSP thread and a polymer seat. The BSP male spud comes in its plated steel BSP x Wing Nut column, and this range covers six sizes from 1" to 3". In a Boss coupling the spud is usually fixed to the equipment and the stem is clamped to the hose.

Turning the wing nut on the spud connects or disconnects the two halves, and tightening it gives a mechanical and pressure seal. The non-metallic polymer seat resists most chemicals found in manufacturing facilities.

Where this product is used

• Steam hose connections, where Boss couplings are recommended, and air, water and fluid petroleum chemical lines
• Hose assemblies on BSP-threaded equipment, where a spud fixed to the equipment mates with a stem clamped to the hose

Features

• Male spud, BSP thread, polymer seat
• Listed by Dixon in the plated steel BSP x Wing Nut column
• Coupling rating for air and water: 600 PSI (41 bar) up to 2", 450 PSI (31 bar) for 2-1/2" and 3"
• Polymer seat resists most chemicals found in manufacturing facilities
• Boss ground joint set (spud and stem) recommended for steam service up to 230°C

Key specifications

Choosing the right option

Then match the spud size to the stem and hose size in your assembly. Worn-out hose couplings can be dangerous. They should be checked regularly and replaced when necessary, and that each user should review the application and add safety devices where indicated.
