Dixon Polycarbonate hose reel twist nozzle
Available

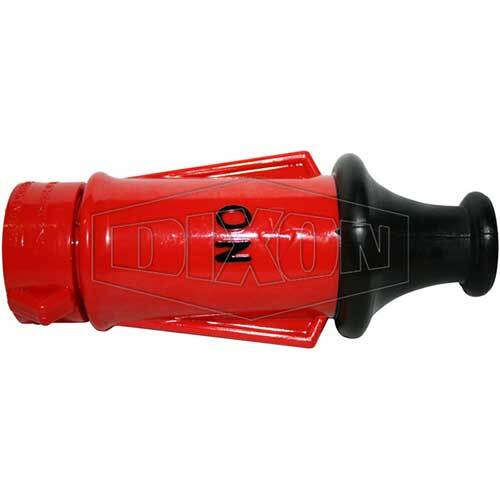

This Dixon hose reel nozzle is a twist-operated polycarbonate nozzle with a 20mm (3/4") female pipe thread suitable for BSP and NPT, sealed by a rubber gasket. It is HNFR20 with the description "power spray". It has a flow rate of up to 50 L/min and describes the construction as a high impact strength polymer.
The nozzle suits hose cabinets and other uses that need an industrial-strength water nozzle, with twist operation from shut-off to jet and mist spray.
Where this product is used
- Hose cabinets and fire hose reels that need a twist-operated water nozzle
- Other water uses that need an industrial-strength nozzle
Features
- Twist operation from shut-off to jet and mist spray
- High impact strength polymer (polycarbonate) construction
- Flow rate: up to 50 L/min
- Female pipe thread suitable for BSP and NPT
- Rubber gasket creates a pressure-type seal
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Material | Polycarbonate, high impact strength polymer |
| Thread size | 20mm (3/4") |
| Thread | Female pipe thread suitable for BSP and NPT |
| Seal | Rubber gasket, pressure type |
| Flow rate | Up to 50 L/min |
Choosing the right option
Check that the thread on your hose reel or cabinet fitting is a 3/4" pipe thread of the BSP or NPT type, because this nozzle has a female thread. The brass hose reel nozzle is the alternative for a 19mm reel.
Related Dixon products: Dixon Viper Fire Spray Nozzle, Dixon Power Jet Twist Spray Nozzle Rubber Gasket and Dixon Brass Hose Reel Nozzle 19mm.
