Dixon Scraper block
Available

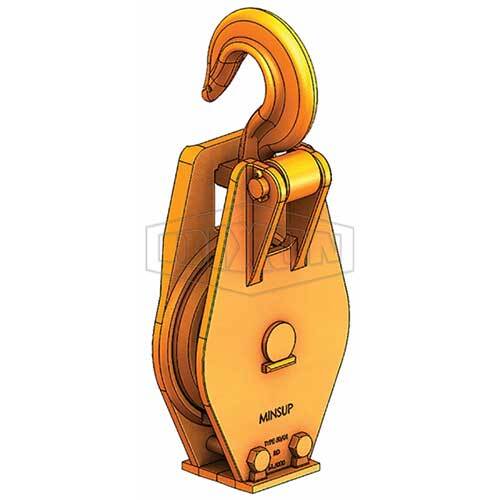

This Dixon Minsup® scraper block has a forged alloy steel hook that swivels, side plates and a sheave wheel cast in SG iron, and a shielded sealed bearing. Its part number is 08/050/01X/00. It suits 12.7mm (1/2") or 15.9mm (5/8") steel wire rope, and it has a safe working load of 2 tonne with a safety factor of 5:1 and an assembly weight of 20kg.
The M16 bolts are 8.8 high tensile and the M16 nyloc nuts are grade 8.
Where this product is used
- Scraping and hauling with steel wire rope on oil fields, construction sites, lumber yards, industrial workshops and underground mines
- Re-directing a 12.7mm (1/2") or 15.9mm (5/8") wire rope pull
Features
- Hook forged from alloy steel, the hook swivels
- Side plates and sheave wheel cast in SG iron
- Shielded, sealed bearing with grease packed for life, no maintenance needed
- Suits 12.7mm (1/2") or 15.9mm (5/8") steel wire rope
- Safe working load 2 tonne (safety factor 5:1)
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Description | Scraper block |
| Safe working load | 2 tonne (safety factor 5:1) |
| Wire rope size | 12.7mm (1/2") or 15.9mm (5/8") |
| Hook | Forged alloy steel, swivelling |
| Side plates and sheave | SG iron |
| Bolts and nuts | M16 8.8 high tensile bolts, M16 grade 8 nyloc nuts |
| Assembly weight | 20kg |
Choosing the right option
Check your rope size: the block is suitable for 12.7mm (1/2") or 15.9mm (5/8") steel wire rope. Do not exceed the 2 tonne safe working load.
Related Dixon mining products: Dixon Diamond Head Rock Wedge, Dixon Minsup Wooden Pelican Pick and Dixon Scaling Bar Aluminium.
