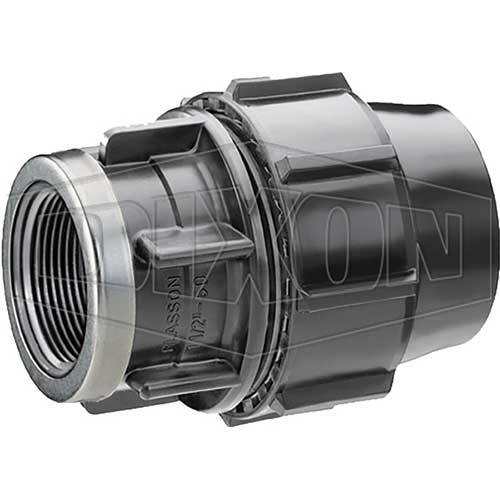

Dixon Mine Adaptor | AIMS Industrial

• Supplied as Mine Adaptor.
• Size of 63 mm matches standard line work without modification.
• Polypropylene, high-grade copolymer construction handles the temperature, pressure and media of industrial duty.

• Plasson Compression Fittings
• 2 Split Rings, 2 Seals, 2 Nuts
• ISO 17885, AS/NZS419, ISO7-1

Use

• Maximum temperature of use for fittings and valves is the same as that for polyethylene pipe and they are not intended for use in hot water applications.
• The will withstand sub-zero temperatures.

Construction

• Polypropylene Body Material.
• Stainless Steel Ring on Female BSP Connections.
• Zinc Coated Steel on Flanged connections.

Available Options

• CPVC split rings and EPDM or FPM seals are available.

Compatibility & Interchange Data

• Compatible with all Metric PE Pipe. Not interchangeable with other Poly Compression fittings.

Installation

• Plasson Nut, Split Ring, O-Ring and Insert are placed over PE Pipe and tightened with a Plasson Wrench.
• Depending on the connection point, they can be joined with a BSP Thread connection, flange plate or shouldered coupling.

Note

• For aggressive chemical applications, the end-user is advised to test suitability.

• Plasson Compression Fittings.
