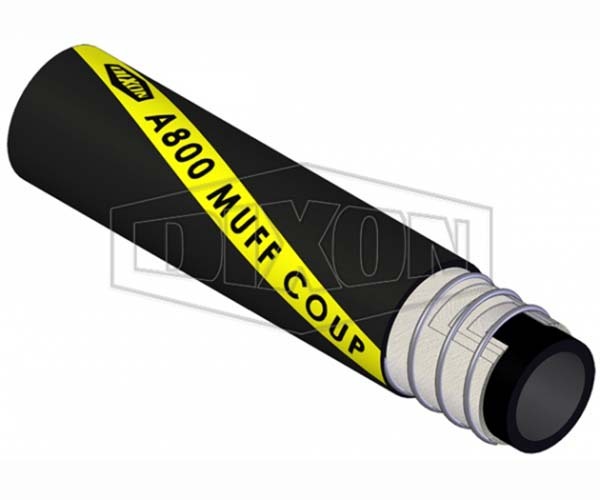

Dixon Rubber Material Handling Muff Coupling Hose
Regular price
$5,413.59
Sale price
$5,413.59
Regular price
Inc. GST
Out of stock
Length: 20 m. ID of 152.4 mm matches standard line work without modification. Minimum Cut Length: 10 metres. Standard Coil Length: 20 metres. Construction. Tube: NR/SBR. Cover: Rubber, yellow stripe, smooth cover. Reinforcement: 4 ply synthetic cord, wire helix.
Key Specifications
| Length | 20 m |
| ID | 152.4 mm |
| OD | 182.0 mm |
| Working Pressure | 150 PSI (10 bar) |
| Burst Pressure | 435 PSI (30 bar) |
| Temperature Range | -30°C to 70°C |
| Color | Black with Yellow Stripe |
| Unit weight | 10.7 kg/m |
| Bend Radius | 1,067 mm |
| Hose Outside Diameter (mm) | 182 |
| Weight kg/m | 10.7 |
| Application | Slurry & Abrasive Materials |
| Hose Length | 20 m |
| Hose Inside Diameter (mm) | 152 |
Where This Is Used
- Manufactured from a premium abrasion-resistant rubber compound, this hose boasts exceptional durability, making it ideal for rigorous applications in mines and quarries.
- Typically paired with muff couplings, it is commonly employed for gravity-fed or low-pressure slurry tasks, serving both suction and delivery purposes with efficiency.
- Heavy-duty material handling hose, suitable to handle pressure or suction in the transfer of bulk, slurry, cement, and abrasive products.
- Especially designed for very severe applications (mines, tunnels, etc.).
Features
- Ozone resistant.
- Weather resistant.
- Oil mist resistant.
- Abrasion resistant.
- Mylar layline & embossed tape line.
- Mandrel built.
- Ozone resistance.
- UV Stabilised.
- Antistatic copper wire.
- Abrasion Value Max: 70mm³.
