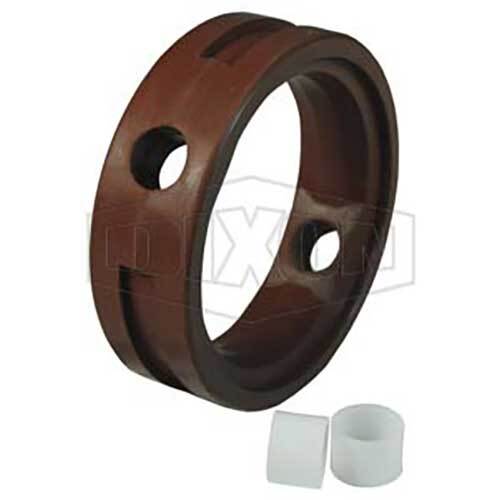

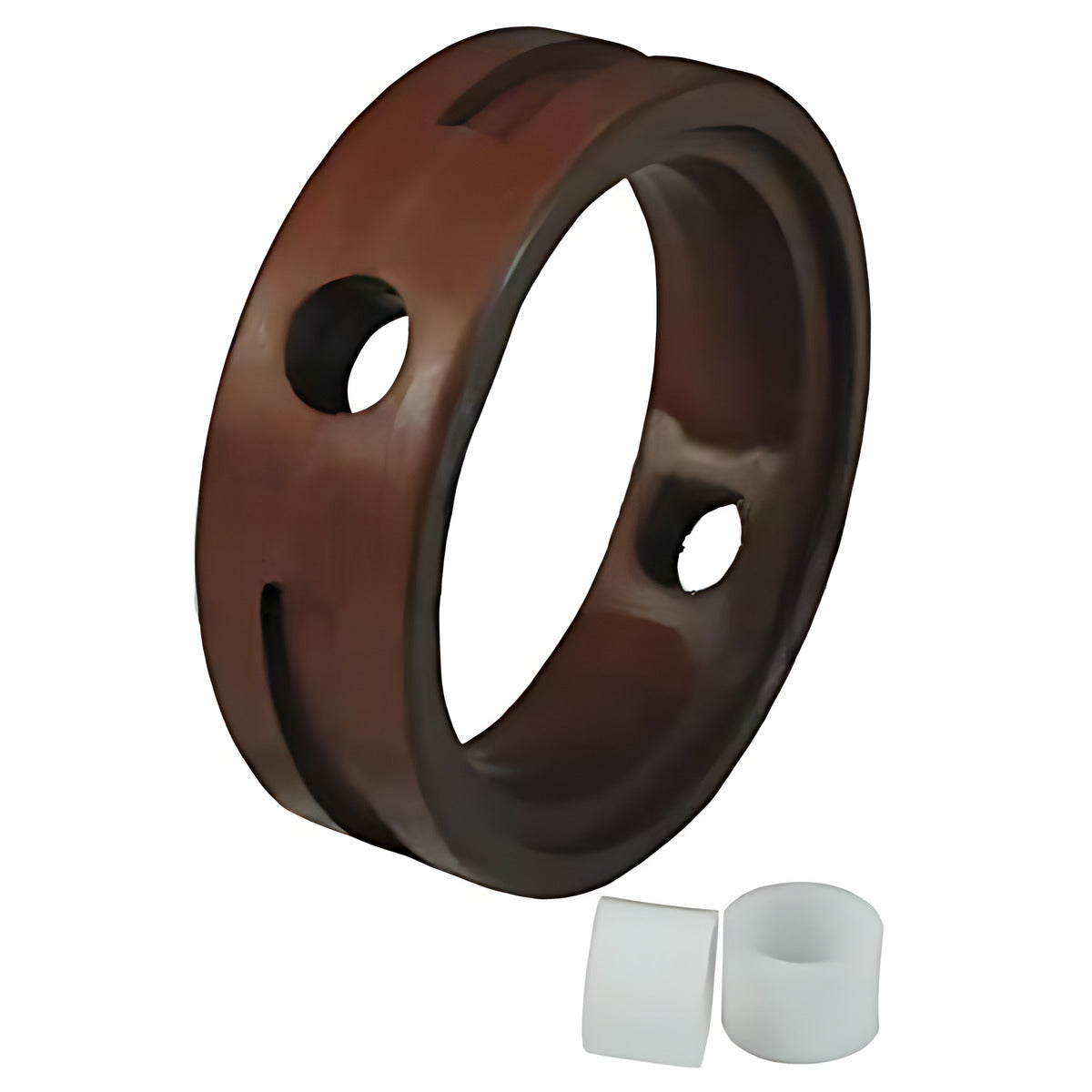

Dixon B5101-RKV100 1/2"-1" Butterfly Valve Repair Kit Brown FKM

This Dixon repair kit is the brown FKM kit for B5101 series pull handle butterfly valves, listed in Dixon's hygienic valves range (manufacturer-stated). This listing has 6 sizes: 1/2"-1", 1-1/2", 2", 2-1/2", 3", 4".

Dixon lists the B5101 repair kits in three seal materials: red silicone, black EPDM and brown FKM. Dixon lists brown FKM kits from 1/2 in to 4 in only, with no FKM kit for the 6 in or 8 in valve. Dixon's catalogue also says its B5107 repair kits are compatible with B5101 valves (manufacturer-stated).

Where this product is used

• Re-sealing a B5101 series pull handle butterfly valve in hygienic process lines (manufacturer-stated).
• Planned seal replacement on B5101 valves, using the kit that matches the valve size and seal material.

Features

• Brown FKM repair kit for B5101 series butterfly valves (manufacturer-stated)
• Sizes in this listing: 1/2"-1", 1-1/2", 2", 2-1/2", 3", 4"
• B5101 kits are listed in three seal materials: red silicone, black EPDM and brown FKM (manufacturer-stated)
• Seat dimensions A, B, C and D (mm) for each size are in the table below

Common specifications

Key specifications

Seat dimensions are Dixon's published table for the valve seat at each size. The 1/2 in to 1 in kit covers valve sizes from 1/2 in to 1 in, which share one seat size.

Selecting the right option

Order by valve series and size, then choose the seal material to suit the product, cleaning chemicals and temperature in your line. If you are not sure which series your valve is, send us the valve part number or a photo of the body marking. Dixon's catalogue does not list the individual parts in the kit, so ask us if you need the kit contents confirmed.
