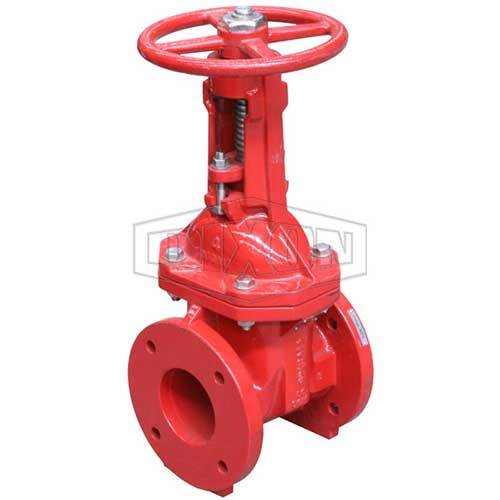

Dixon VG172-OSY-D100 4" (100 mm) Flanged OS&Y Gate Valve Ductile Iron

This Dixon gate valve is the VG172-OSY-D100, a 100 mm (4 in) ductile iron OS&Y gate valve with flanged ends. It has a resilient seated wedge encapsulated in EPDM and an OS&Y (outside screw and yoke) rising stem.

Dixon lists the range for water, sewage and neutral liquids with bubble tight shut off, and for fire protection and distribution services; it is UL/FM approved (manufacturer-stated). Dixon marks this part with a footnote that gives 200 PSI at -0.6 to 52 degrees C, against 300 PSI for the other sizes in the range (manufacturer-stated).

Where this product is used

• Water, sewage and neutral liquid lines (manufacturer-stated).
• Fire protection and distribution services (manufacturer-stated).

Features

• Ductile iron body, resilient seated EPDM encapsulated wedge (manufacturer-stated)
• OS&Y rising stem, bubble tight shut off (manufacturer-stated)
• Flanged ends, 229 mm face to face (manufacturer-stated)
• UL/FM approved (manufacturer-stated)
• Footnoted rating: 200 PSI at -0.6 to 52 degrees C (manufacturer-stated)

Key specifications

Selecting the right option

Confirm the flange drilling before you order. Dixon lists this part in its flanged column, which is headed Table E, and the D in the part number may refer to Table D drilling, so check which table your pipework uses. The Table E version, VG172-OSY-E100, is under Related products. Dixon's footnoted pressure for this 100 mm valve is 200 PSI, lower than the 300 PSI printed for the larger sizes.

Related products

Related Dixon valves: Dixon VG172-OSY-E100 100 mm Flanged OS&Y Gate Valve Ductile Iron, Dixon Ductile Iron Flanged Gate Valve and Dixon Flanged OS & Y Gate Valve Table.
