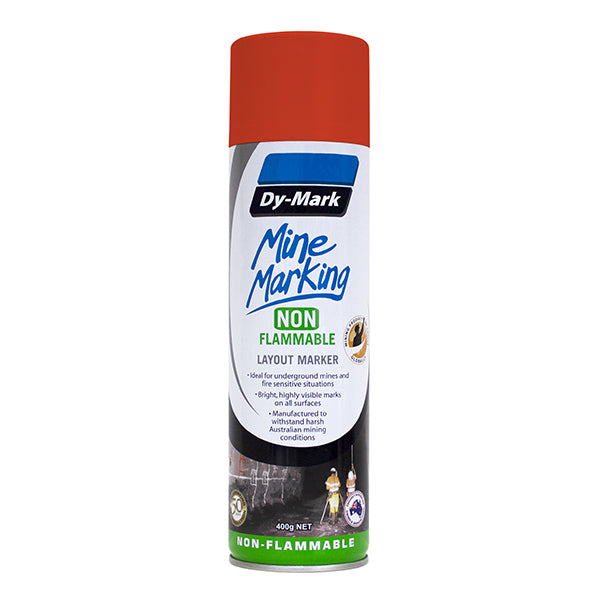

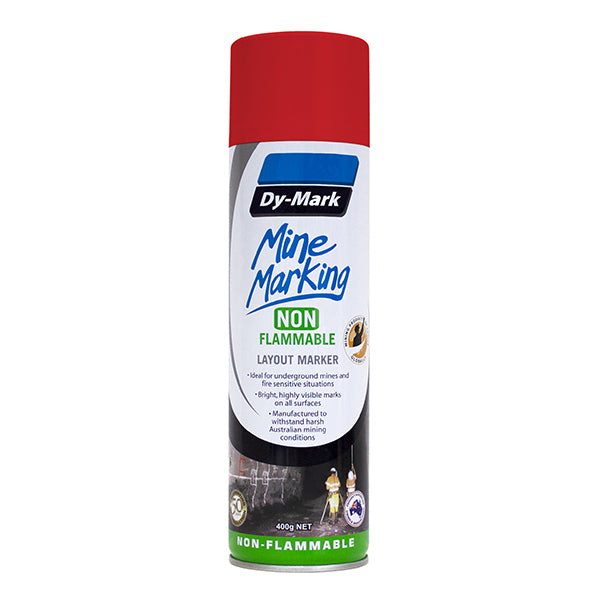

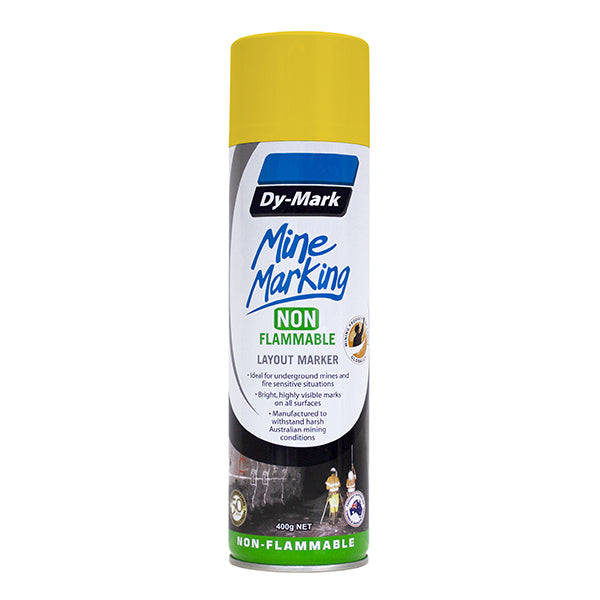

Dy-Mark Mine marking paint, Fluro Orange

Dy-Mark Mine Marking Non-Flammable Horizontal is a 400g aerosol marking out paint with a horizontal spray nozzle for side walls. There are 7 colours, 4 standard and 3 fluoro.

It is a non-flammable layout marker formulated for use in underground mines and other fire-sensitive situations, using a 360° valve and a horizontal spray nozzle for side walls. It is bright, highly visible and not affected by water or moisture once dry. Suitable surfaces are rock, dirt and gravel. The application temperature is between -10°C and 40°C. It comes in a 400g can with tetrafluoroethane and carbon dioxide propellant. It has a dry time of 5 minutes at 25°C and coverage of 200+ X marks, up to 120 linear metres, depending on the surface and colour.

Where this product is used

• Layout marking in underground mines
• Marking in other fire-sensitive situations

Features

• 400g aerosol with a matt finish
• Horizontal spray nozzle, for marking side walls
• 360° valve for any angle application
• Non-flammable layout marker for underground mines and other fire-sensitive situations
• Dry time 5 minutes at 25°C

Key specifications

Choosing the right option

Choose the colour for your marking code, and choose horizontal or vertical to suit the surface: horizontal for side walls, vertical for ceilings and floors. Pick the non-flammable range where the site rules do not allow a flammable aerosol; the non-flammable can is 400g and uses a different propellant.

Related Dy-Mark products: Mine Marking Horizontal, Mine Marking Non-Flammable Vertical, Spray & Mark marking out paint.
