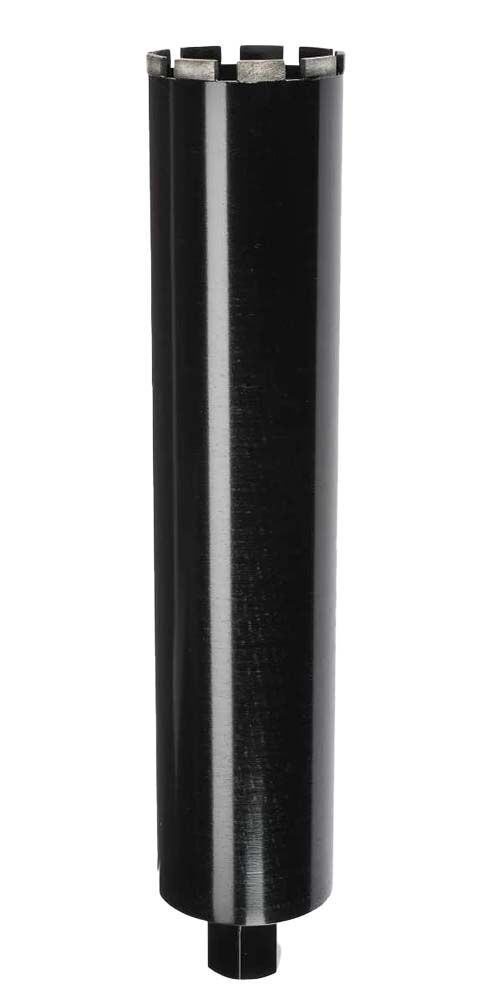

Dymaxion Diamond Core Drill for Concrete 26 x 450mm 1-1/4" UNC Fitting
Available
Dymaxion is an Australian brand of abrasive cutting and grinding discs and diamond core drilling products, supplying tradespeople, fabricators, and construction teams with high-volume cutting and drilling consumables for angle grinders, stationary cut-off machines, and rotary core drill rigs. Their range covers steel cutting, stainless steel (INOX) cutting, masonry cutting, metal grinding, and diamond core drilling for concrete and brick. This page covers the Dymaxion Diamond Core Drill for Concrete, available in 25 diameter (mm) options: 26, 28, 30, 35, 42, 52, 57, 65 and 17 more.
Dymaxion diamond core drill bits are used with rotary core drilling rigs to produce clean, accurate through-holes in concrete and brick without the cracking and spalling caused by hammer drills or masonry bits. The diamond-impregnated crown cuts through aggregate and reinforcing to produce a smooth cylindrical hole suited to pipe penetrations, cable routes, and anchor installations in structural concrete.
Where this product is used
Diamond core drills are used wherever clean, accurate holes are required in concrete or masonry:
- Building services and plumbing installations where pipe and conduit penetrations through concrete floors and walls must be clean and accurate.
- Structural and civil engineering where core holes are drilled for anchor bolts, dowels, and post-installed reinforcing.
- Renovation and fitout work where core drilling is required through existing concrete slabs and masonry walls without cracking.
Selecting the right option
Select by core diameter to match the required hole size — allow for the bit outer diameter being larger than the finished hole. Confirm the bit shank matches your core drill rig's spindle interface. Dymaxion diamond cores are available in concrete and concrete/brick variants — the concrete/brick version is the more versatile choice where the material mix is unknown. Always use water cooling during drilling to extend bit life and prevent overheating of the diamond segments.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dymaxion Diamond Core Drill for Concrete: 26
SKU: A0210415 | Model: CCSU26-450
Diameter (mm) 26. Dymaxion Diamond Core Drill for Concrete
Optimised for cutting reinforced concrete.
Will cut most other materials with a possible decrease in cutting speed and increase in bit wear.
Diamond core drills and hole saws require the use of proper lubrication, correct drill speed and proper pressure.
1-1/4" UNC is the international standard fitment used on most diamond core drill machines.
When core drilling in concrete it is important to deliver water internally to the cutting edge to ensure the diamond is kept cool and debris is removed.
To prevent damage to the diamond segments it is important that the drilling rig is securely mounted preventing rocking and vibration.
Diamond core drills only drill out a portion of the resulting hole so they drill much faster than conventional blunt nose drills.
The life of any type of diamond drill depends upon the hardness, abrasiveness and thickness of the material being drilled and the specific drilling techniques used.
Using diamond core drills in hard materials is not difficult, however drilling the hole takes time.
You should consider that they aren't "drilling" a hole - they are "grinding" a hole.
Note: Max. 450mm core depth.
