Sutton E463 6mm Corner Radius Endmill 4 Flute R1.0 - Carbide VHM Ultra - Helica - Regular
Available

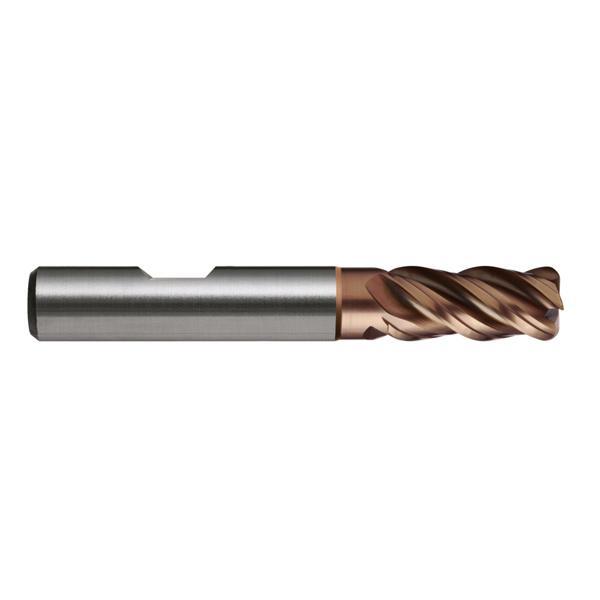

The Sutton E463 is a 4 flute corner radius endmill made from VHM-ULTRA grade solid carbide, with a Helica coating. It is in the regular length series. This listing covers 29 metric sizes from 6 mm to 20 mm. Corner radii in this listing: 0.3, 0.5, 1.0, 1.5, 2.0, 3.0 mm.
The cutting edge has a 40/42° variable helix and the designation is VA. The shank is a cylindrical shank with Weldon flat (DIN 6535 form HB), with h6 shank tolerance and e8 cutting diameter tolerance. The cutting length is to DIN 6527 L. Sizes with a relieved neck show the reach length (l3) and neck diameter (d3) in the size table.
Where this product is used
- Stainless steels and other tough materials.
- Universal applications with one tool.
Design features
- VHM-ULTRA grade solid carbide construction.
- Helica coating for superior wear resistance in stainless steel.
- 4 flutes, 40/42° variable helix.
- Optimised geometry with variable helix design for high productivity.
- Cylindrical shank with Weldon flat (DIN 6535 form HB).
- Tolerances: cutting diameter (d1) e8, shank h6.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.
| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | l3 reach (mm) | d2 shank (mm) | d3 neck (mm) | Flutes | Corner radius (mm) |
|---|---|---|---|---|---|---|---|---|
| E463 0603 | 6 | 57 | 13 | 21 | 6 | 5.5 | 4 | 0.3 |
| E463 0605 | 6 | 57 | 13 | 21 | 6 | 5.5 | 4 | 0.5 |
| E463 0610 | 6 | 57 | 13 | 21 | 6 | 5.5 | 4 | 1.0 |
| E463 0803 | 8 | 63 | 19 | 27 | 8 | 7.5 | 4 | 0.3 |
| E463 0805 | 8 | 63 | 19 | 27 | 8 | 7.5 | 4 | 0.5 |
| E463 0810 | 8 | 63 | 19 | 27 | 8 | 7.5 | 4 | 1.0 |
| E463 0815 | 8 | 63 | 19 | 27 | 8 | 7.5 | 4 | 1.5 |
| E463 0820 | 8 | 63 | 19 | 27 | 8 | 7.5 | 4 | 2.0 |
| E463 1003 | 10 | 72 | 22 | 32 | 10 | 9.5 | 4 | 0.3 |
| E463 1005 | 10 | 72 | 22 | 32 | 10 | 9.5 | 4 | 0.5 |
| E463 1010 | 10 | 72 | 22 | 32 | 10 | 9.5 | 4 | 1.0 |
| E463 1015 | 10 | 72 | 22 | 32 | 10 | 9.5 | 4 | 1.5 |
| E463 1020 | 10 | 72 | 22 | 32 | 10 | 9.5 | 4 | 2.0 |
| E463 1203 | 12 | 83 | 26 | 38 | 12 | 11.2 | 4 | 0.3 |
| E463 1205 | 12 | 83 | 26 | 38 | 12 | 11.2 | 4 | 0.5 |
| E463 1210 | 12 | 83 | 26 | 38 | 12 | 11.2 | 4 | 1.0 |
| E463 1215 | 12 | 83 | 26 | 38 | 12 | 11.2 | 4 | 1.5 |
| E463 1220 | 12 | 83 | 26 | 38 | 12 | 11.2 | 4 | 2.0 |
| E463 1230 | 12 | 83 | 26 | 38 | 12 | 11.2 | 4 | 3.0 |
| E463 1605 | 16 | 92 | 32 | 44 | 16 | 15 | 4 | 0.5 |
| E463 1610 | 16 | 92 | 32 | 44 | 16 | 15 | 4 | 1.0 |
| E463 1615 | 16 | 92 | 32 | 44 | 16 | 15 | 4 | 1.5 |
| E463 1620 | 16 | 92 | 32 | 44 | 16 | 15 | 4 | 2.0 |
| E463 1630 | 16 | 92 | 32 | 44 | 16 | 15 | 4 | 3.0 |
| E463 2005 | 20 | 104 | 38 | 54 | 20 | 19 | 4 | 0.5 |
| E463 2010 | 20 | 104 | 38 | 54 | 20 | 19 | 4 | 1.0 |
| E463 2015 | 20 | 104 | 38 | 54 | 20 | 19 | 4 | 1.5 |
| E463 2020 | 20 | 104 | 38 | 54 | 20 | 19 | 4 | 2.0 |
| E463 2030 | 20 | 104 | 38 | 54 | 20 | 19 | 4 | 3.0 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E463 |
| Type | Corner Radius Endmill, 4 flute, regular length |
| Material | VHM-ULTRA solid carbide |
| Finish | Helica |
| Helix / geometry | R40/42 |
| Designation | VA |
| Shank form | cylindrical shank with Weldon flat (DIN 6535 form HB) |
| Cutting diameter tolerance (d1) | e8 |
| Shank tolerance | h6 |
| Cutting length | DIN 6527 L |
| Sizes in this listing | 29 sizes, 6 to 20 mm |
