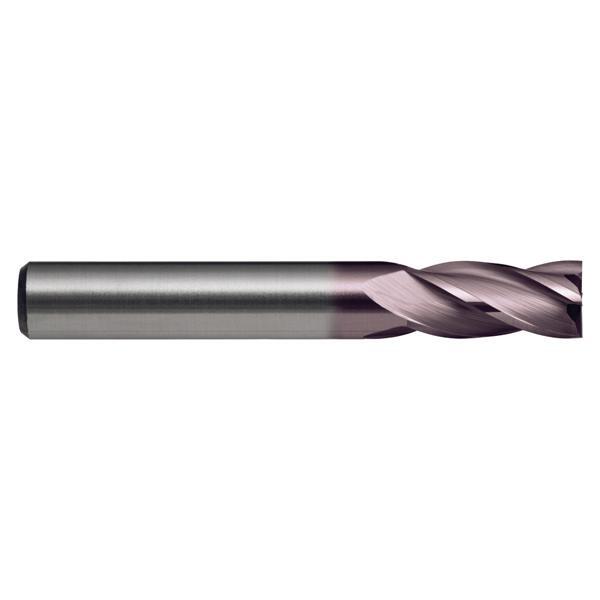

4 Flute Endmill - R30 N - Regular - Tecline

• Endmill, Regular, 4 Flute, R30 N, Long.
• Suitable for materials up to 1600 N/mm2.
• TiAlN for longer tool life.

Specifications

• Designation: N
• Material: VHM
• Finish: TiAlN
• Shank Form: HA
• Helix Angle: R30
• Point Tolerance: h10
• Shank Tolerance: h6
• Point Form: Square End
• Type: N (finishing)
• Standard: DIN6527L
• Rake Angle: 12

Applications

• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)-125HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-190HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-250HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)-270HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)-300HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements-180HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements-275HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements-300HB
• Optimal for Steel - High alloy, cast & tool-200HB
• Optimal for Steel - Corrosion resistant & cast - Ferritic / Martensitic-200HB
• Optimal for Steel - Corrosion resistant & cast - Martensitic-240HB
• Optimal for Stainless Steel - Austenitic-180HB
• Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic-180HB
• Optimal for Cast Iron, Grey (GG) - Pearlitic-260HB
• Optimal for Cast Iron, Nodular (GGG) - Ferritic-160HB
• Optimal for Cast Iron, Nodular (GGG) - Pearlitic-250HB
• Optimal for Cast Iron, Malleable - Ferritic-130HB
• Optimal for Cast Iron, Malleable - Pearlitic-230HB
