EasyRoll Spare Puncture Proof Wheel, 3 x 4 in | TSW01

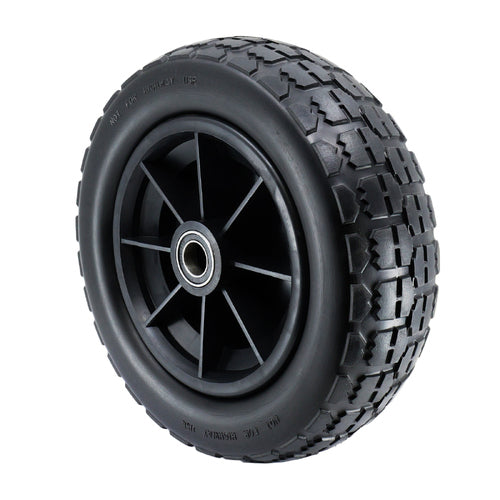

The EasyRoll spare puncture proof wheel is a foam filled wheel with a black rubber tyre, a nylon centre and a precision bearing. It is a 265 mm diameter wheel with a 75 mm tread, a 75 mm hub and a 20 mm bore, sold as a 3 x 4 in spare.

This part is not in the EHI catalogue, so the details here come from AIMS product data and no load capacity is published. Ask AIMS for the load rating before you use it on loaded equipment.

Where this product is used

• Hand trucks
• Materials handling equipment
• Trolleys and carts used on uneven or unsealed ground
• Applications where punctures are a problem

Features

• Foam filled puncture proof wheel, 3 x 4 in
• 265 mm diameter, 75 mm tread, 75 mm hub
• Black rubber tyre with a nylon centre
• Precision bearing, 20 mm bore

Key specifications

Selecting the right option

Check the bore ID against your axle, the hub length against the space in your fork or frame, and the load capacity per wheel against the total load shared across all the wheels. The bore ID and bush ID are as listed by EHI, so confirm the axle size you need with AIMS before ordering. Precision ball bearings have balls running between a tempered inner and outer ring. EHI states that they are sealed for lifelong lubrication and give very good operating properties under heavy loads and at high speeds (manufacturer-stated). Load capacity is shown per wheel (manufacturer-stated). For castors on a four wheel trolley EHI recommends each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries (manufacturer-stated). If you are unsure which wheel suits your application, contact AIMS with the load, the floor type and how the equipment is used.
