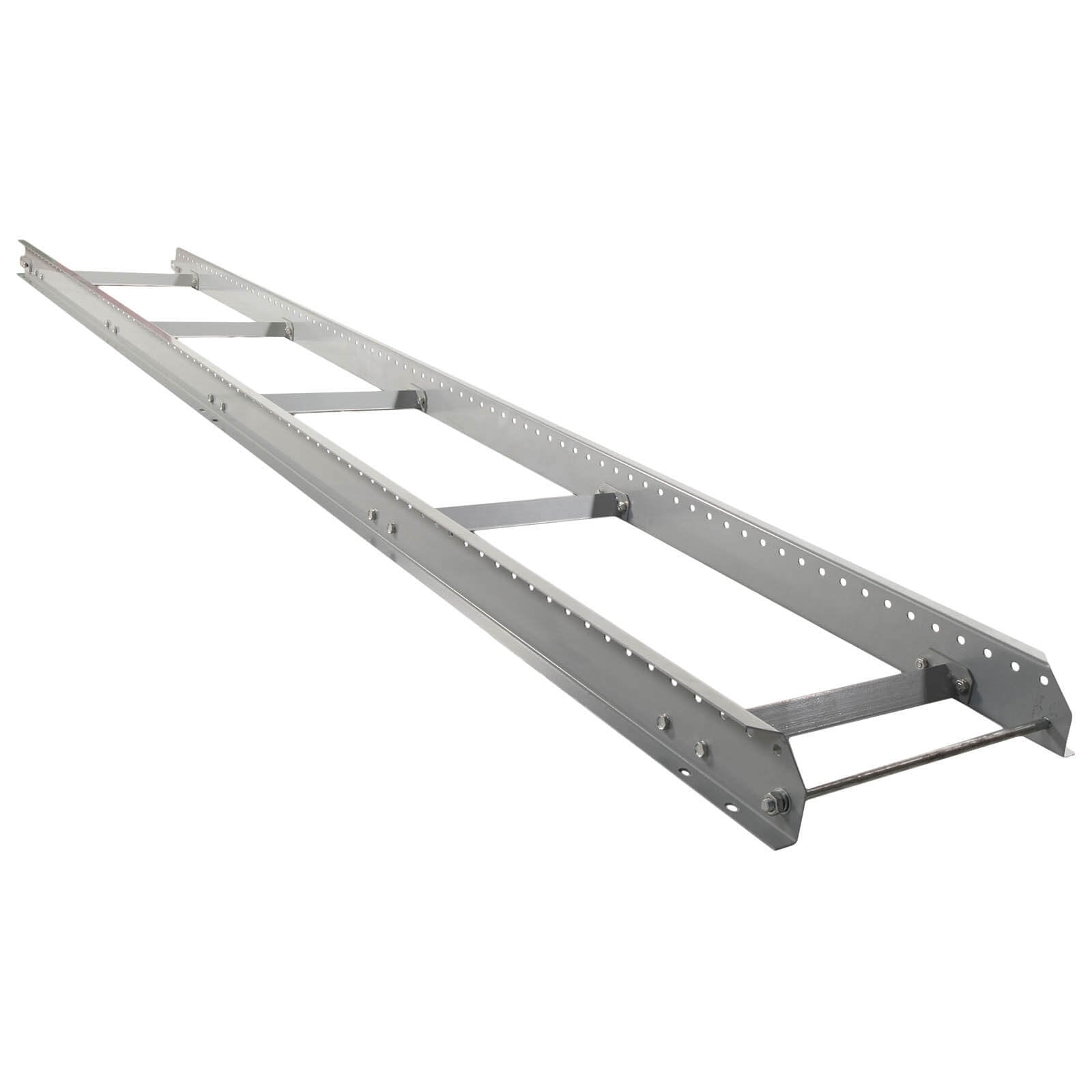

EasyRoll Straight Conveyor Frame - 3000 mm Long, 600 mm Wide

The EasyRoll straight conveyor frame is 3000mm long and 600mm wide overall, with an industrial grey painted finish. It is supplied in kit form, and the rollers and stands are sold separately.

Interlocking sections make the frames flexible to lay out and give maximum stability. At a 75mm roller pitch this frame takes 40 rollers, and at a 150mm pitch it takes 20 rollers.

Where this product is used

• Gravity roller conveyor lines for picking, packing and dispatch
• Assembly and component flow lines
• Warehouse and distribution operations

Features

• 3000mm length, 600mm overall width
• Interlocking sections for flexibility and stability
• Industrial grey painted finish
• Supplied in kit form, rollers and stands sold separately
• 40 rollers at 75mm pitch or 20 rollers at 150mm pitch

Key specifications

Choosing the right option

Choose the frame width for the widest item on the line, then the pitch for the smallest item: a closer pitch supports smaller items. Order rollers to match the frame width (600mm rollers suit this frame) and the quantity for your chosen pitch, and order stands separately.
