Excision 62227002-12170 Band Saw Blade 27 x 0.9mm
Available

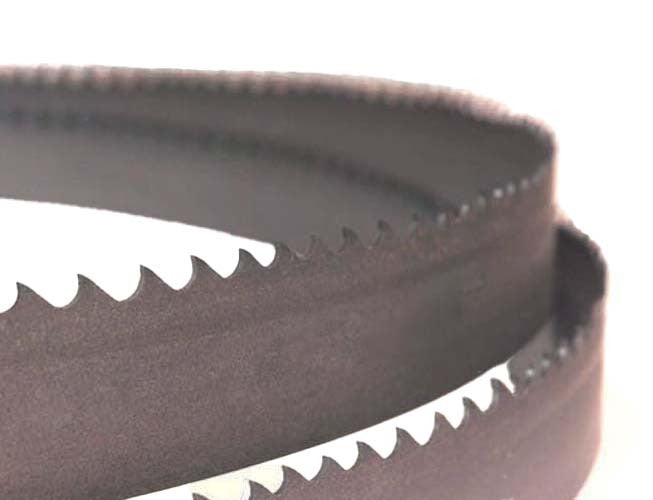

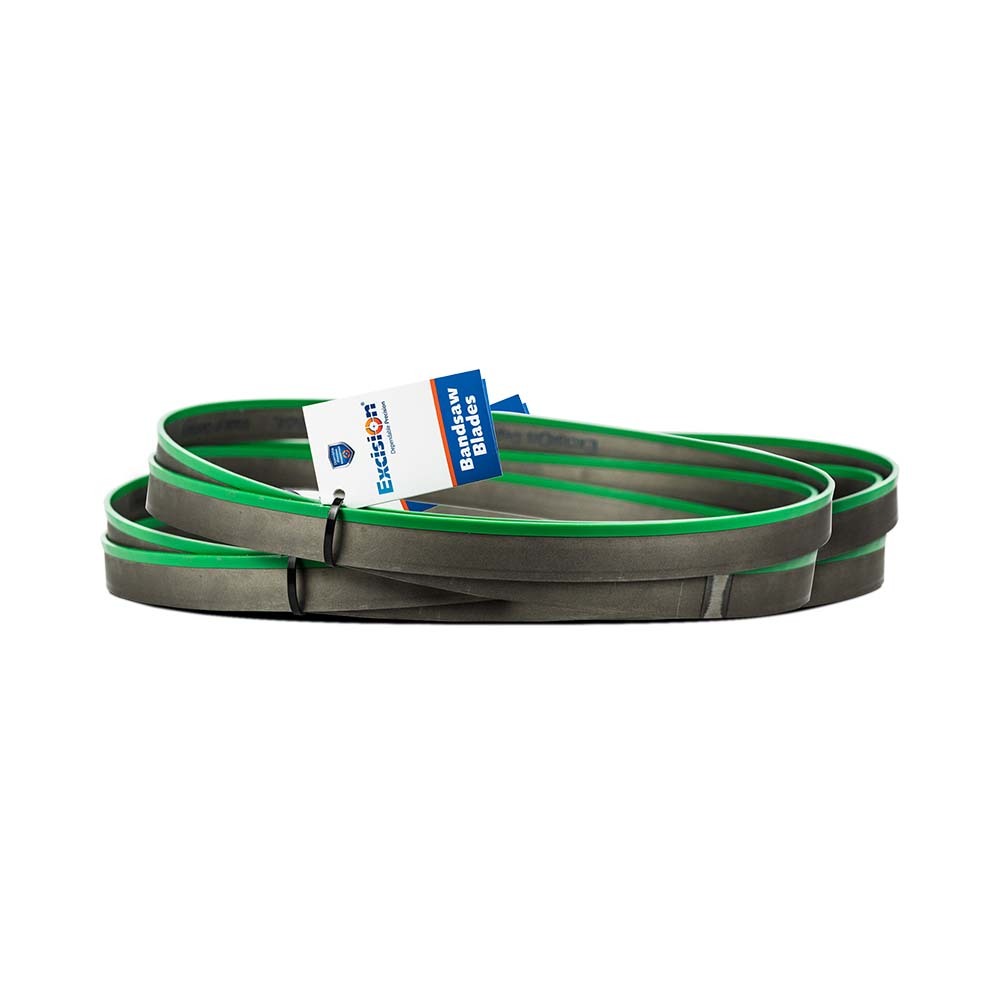

Excision Bi-Alfa Cobalt M42 band saw blade, 27mm wide, 0.9mm thick, 2 TPI, in 64 lengths from 2390mm to 3850mm.
2 TPI is a constant pitch, with the same distance from tooth to tooth. A constant pitch is very suitable for cross sections and non-ferrous materials.
Where this product is used
- Cutting on a band saw machine
Features
- 27mm wide
- 0.9mm thick
- 2 TPI
- Part numbers are the base code, a dash and the length in mm
- 64 lengths from 2390mm to 3850mm
- Cuts on a band saw machine
Key specifications
| Specification | Detail |
|---|---|
| Brand | Excision |
| Range | Bi-Alfa Cobalt M42 |
| Base code | 62227002 |
| Part number | Base code, a dash, then the length in mm (for example 62227002-2390) |
| Width | 27mm |
| Thickness | 0.9mm |
| Teeth per inch | 2 |
| Pitch type | Constant |
| Lengths available | 64, from 2390mm to 3850mm |
Choosing the right option
Pick the length your saw needs. To measure it, set the wheels about the middle of their adjustment range, measure the distance between the wheel centres (D) and the radius of each wheel (R1 and R2), then work out the length in mm as (R1 x 3.1416) + (R2 x 3.1416) + (2 x D). Each part number is the base code, a dash and the length in mm.
Choose a TPI that suits the thickness of the material you are cutting, because the wrong TPI dramatically shortens blade life. For metal, the general rule of thumb is 5 to 7 teeth in the cut at any time, and band speeds for bi-metal blades run from 80 to 90 m/min on construction and machining steel down to 15 to 25 m/min on heat resistant steels.
Other lengths of this blade: 3905mm to 9760mm.
| Option | Part number | SKU |
|---|---|---|
| 2170 | 62227002-12170 | A0205786 |
| 2390 | 62227002-2390 | A0205787 |
| 2450 | 62227002-2450 | A0205788 |
| 2455 | 62227002-2455 | A0205789 |
| 2460 | 62227002-2460 | A0205790 |
| 2470 | 62227002-2470 | A0205791 |
| 2480 | 62227002-2480 | A0205792 |
| 2490 | 62227002-2490 | A0205793 |
| 2500 | 62227002-2500 | A0205794 |
| 2555 | 62227002-2555 | A0205795 |
| 2655 | 62227002-2655 | A0205796 |
| 2725 | 62227002-2725 | A0205797 |
| 2750 | 62227002-2750 | A0205798 |
| 2820 | 62227002-2820 | A0205799 |
| 2895 | 62227002-2895 | A0205800 |
| 2910 | 62227002-2910 | A0205801 |
| 2920 | 62227002-2920 | A0205802 |
| 2925 | 62227002-2925 | A0205803 |
| 2935 | 62227002-2935 | A0205804 |
| 2950 | 62227002-2950 | A0205805 |
| 2965 | 62227002-2965 | A0205806 |
| 3020 | 62227002-3020 | A0205807 |
| 3035 | 62227002-3035 | A0205808 |
| 3050 | 62227002-3050 | A0205809 |
| 3080 | 62227002-3080 | A0205810 |
| 3090 | 62227002-3090 | A0205811 |
| 3100 | 62227002-3100 | A0205812 |
| 3115 | 62227002-3115 | A0205813 |
| 3125 | 62227002-3125 | A0205814 |
| 3160 | 62227002-3160 | A0205815 |
| 3170 | 62227002-3170 | A0205816 |
| 3175 | 62227002-3175 | A0205817 |
| 3180 | 62227002-3180 | A0205818 |
| 3200 | 62227002-3200 | A0205819 |
| 3265 | 62227002-3265 | A0205820 |
| 3300 | 62227002-3300 | A0205821 |
| 3325 | 62227002-3325 | A0205822 |
| 3330 | 62227002-3330 | A0205823 |
| 3335 | 62227002-3335 | A0205824 |
| 3340 | 62227002-3340 | A0205825 |
| 3345 | 62227002-3345 | A0205826 |
| 3350 | 62227002-3350 | A0205827 |
| 3355 | 62227002-3355 | A0205828 |
| 3365 | 62227002-3365 | A0205829 |
| 3380 | 62227002-3380 | A0205830 |
| 3400 | 62227002-3400 | A0205831 |
| 3450 | 62227002-3450 | A0205832 |
| 3480 | 62227002-3480 | A0205833 |
| 3500 | 62227002-3500 | A0205834 |
| 3505 | 62227002-3505 | A0205835 |
| 3850 | 62227002-3850 | A0205849 |
| 3820 | 62227002-3820 | A0205848 |
| 3810 | 62227002-3810 | A0205847 |
| 3800 | 62227002-3800 | A0205846 |
| 3700 | 62227002-3700 | A0205845 |
| 3685 | 62227002-3685 | A0205844 |
| 3660 | 62227002-3660 | A0205843 |
| 3640 | 62227002-3640 | A0205842 |
| 3635 | 62227002-3635 | A0205841 |
| 3630 | 62227002-3630 | A0205840 |
| 3625 | 62227002-3625 | A0205839 |
| 3605 | 62227002-3605 | A0205838 |
| 3550 | 62227002-3550 | A0205837 |
| 3510 | 62227002-3510 | A0205836 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Excision Band Saw Blade Bi-Alfa Cobalt M42 62227002 (2170-3850): 2170
SKU: A0205786 | Model: 62227002-12170
The 62227002-12170 is an Excision Bi-Alfa Cobalt M42 band saw blade, 27 x 0.9mm, 2 TPI.
