Excision 625271216-2450 Band Saw Blade 27 x 0.9mm, 2450mm
Available

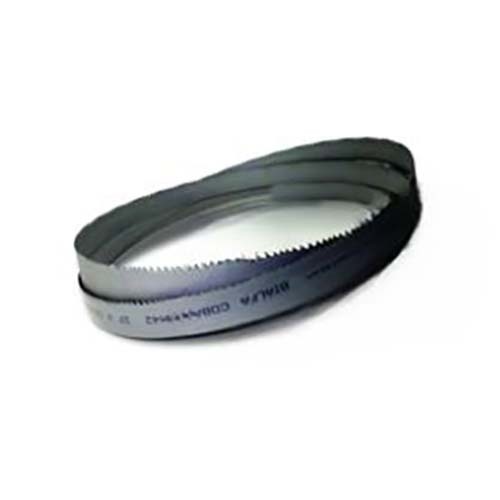

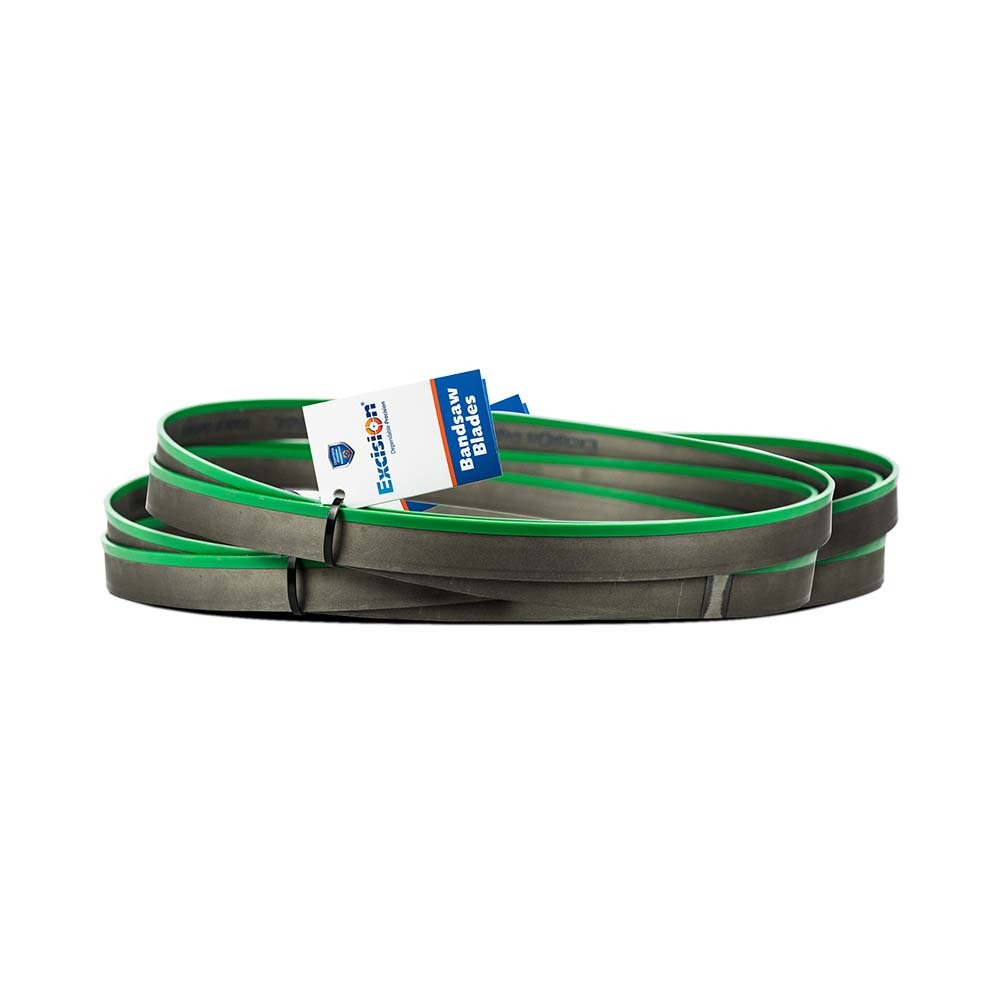

Excision Bi-Alfa Profile band saw blade, 27mm wide, 0.9mm thick, 12/16 TPI, in 29 lengths from 2450mm to 4180mm. It is a Profile blade made for vibration-susceptible cuts in tubes, beams and profiles, with an HSS M42 tooth tip.
Vibration when cutting tubes, beams and profiles is often damaging to a conventional blade and reduces blade life and cut area. The reinforced back edge of the Profile tooth adds strength against vibration during interrupted cutting and protects the blade against tooth strippage. The tooth tip is HSS M42, and the reduced cutting angle of 6° adds to its resistance to vibration. Bi-Alfa Profile gives the best results when cutting round and square tubes as well as beams. 12/16 TPI is a combi (variable) pitch: the first figure is the largest distance between tooth tips and the second the smallest distance within one group, which widens the range of work the blade can handle and reduces vibration.
Where this product is used
- Vibration-susceptible cuts
- Tubes, beams and profiles
- Round and square tubes as well as beams
Features
- Reinforced back edge on the tooth for strength during interrupted cutting
- Protects the blade against tooth strippage
- Profile tooth with a reduced cutting angle of 6°
- HSS M42 tooth tip
- German-made blade material
- Run a new blade in at normal band speed with feed pressure reduced by 50% for the first 15 minutes or 500cm² of cut, then increase the feed gradually
- 12/16 TPI combi (variable) pitch
Key specifications
| Specification | Detail |
|---|---|
| Brand | Excision |
| Range | Bi-Alfa Profile |
| Base code | 625271216 |
| Part number | Base code, a dash, then the length in mm (for example 625271216-2450) |
| Width | 27mm |
| Thickness | 0.9mm |
| Teeth per inch | 12/16 |
| Pitch type | Combi (variable) |
| Cutting tip | HSS M42 |
| Lengths available | 29, from 2450mm to 4180mm |
| Blade material origin | Germany |
Choosing the right option
Pick the length your saw needs. To measure it, set the wheels about the middle of their adjustment range, measure the distance between the wheel centres (D) and the radius of each wheel (R1 and R2), then work out the length in mm as (R1 x 3.1416) + (R2 x 3.1416) + (2 x D). Each part number is the base code, a dash and the length in mm.
Choose a TPI that suits the thickness of the material you are cutting, because the wrong TPI dramatically shortens blade life. For metal, the general rule of thumb is 5 to 7 teeth in the cut at any time, and band speeds for bi-metal blades run from 80 to 90 m/min on construction and machining steel down to 15 to 25 m/min on heat resistant steels.
| Option | Part number | SKU |
|---|---|---|
| 2450 | 625271216-2450 | A0185213 |
| 2455 | 625271216-2455 | A0185214 |
| 2460 | 625271216-2460 | A0185215 |
| 2480 | 625271216-2480 | A0185216 |
| 2490 | 625271216-2490 | A0185217 |
| 2500 | 625271216-2500 | A0185218 |
| 2655 | 625271216-2655 | A0185219 |
| 2725 | 625271216-2725 | A0185220 |
| 2750 | 625271216-2750 | A0185221 |
| 2910 | 625271216-2910 | A0185222 |
| 2920 | 625271216-2920 | A0185223 |
| 2925 | 625271216-2925 | A0185224 |
| 2965 | 625271216-2965 | A0185225 |
| 3035 | 625271216-3035 | A0185226 |
| 3050 | 625271216-3050 | A0185227 |
| 3080 | 625271216-3080 | A0185228 |
| 3090 | 625271216-3090 | A0185229 |
| 3160 | 625271216-3160 | A0185230 |
| 3300 | 625271216-3300 | A0185231 |
| 3320 | 625271216-3320 | A0185232 |
| 3340 | 625271216-3340 | A0185233 |
| 3350 | 625271216-3350 | A0185234 |
| 3355 | 625271216-3355 | A0185235 |
| 3400 | 625271216-3400 | A0185236 |
| 3450 | 625271216-3450 | A0185237 |
| 3550 | 625271216-3550 | A0185238 |
| 3810 | 625271216-3810 | A0185239 |
| 3920 | 625271216-3920 | A0185240 |
| 4180 | 625271216-4180 | A0185241 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Excision Band Saw Blade M42 27 x 0.9 x 12/16 TPI - 625271216: 2450
SKU: A0185213 | Model: 625271216-2450
The 625271216-2450 is a 2450mm long Excision Bi-Alfa Profile band saw blade, 27 x 0.9mm, 12/16 TPI. It is a Profile blade made for vibration-susceptible cuts in tubes, beams and profiles, with an HSS M42 tooth tip.
