FYH Lightweight 2-bolt flange housing, M8, 20mm (3/4")

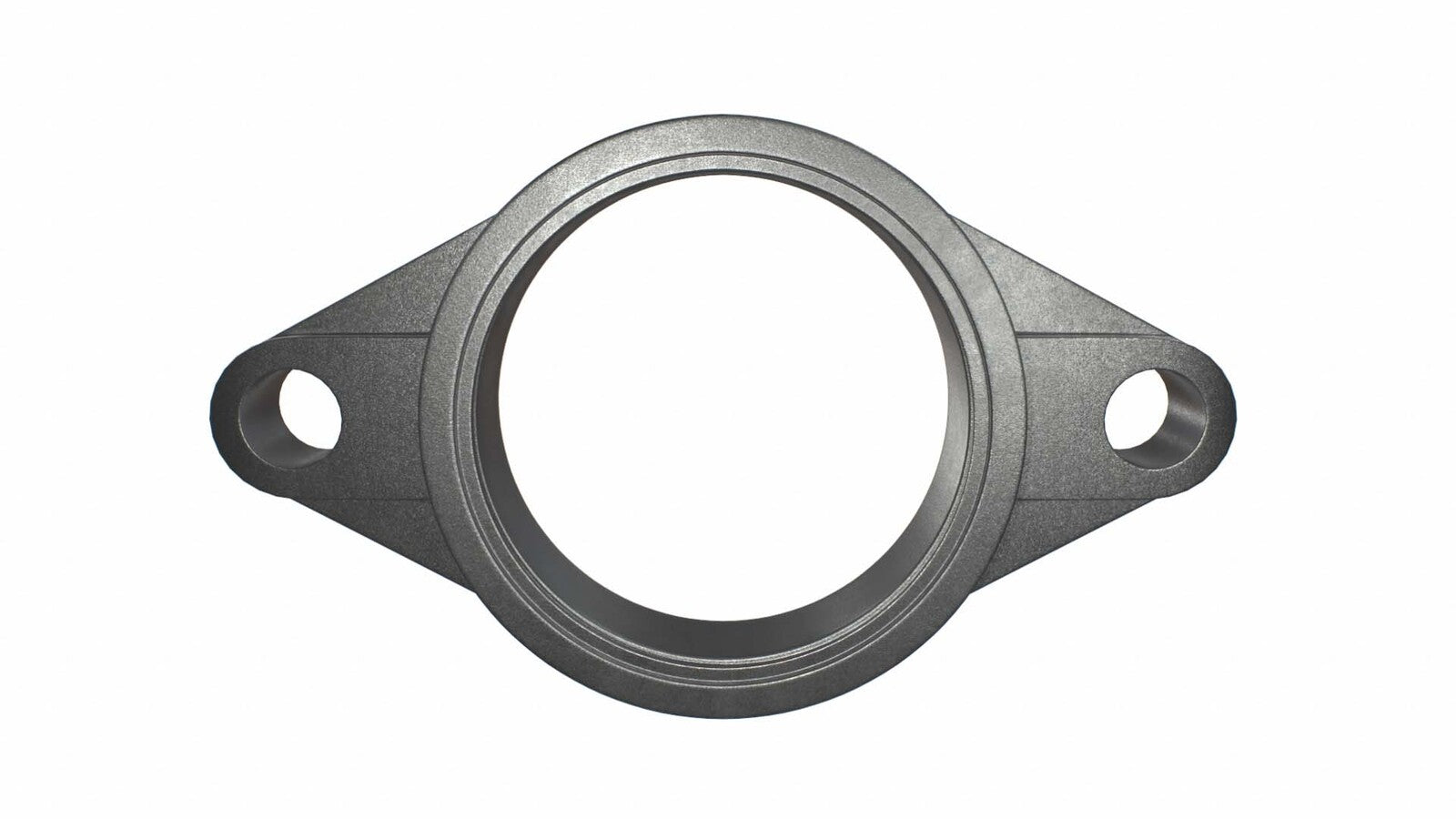

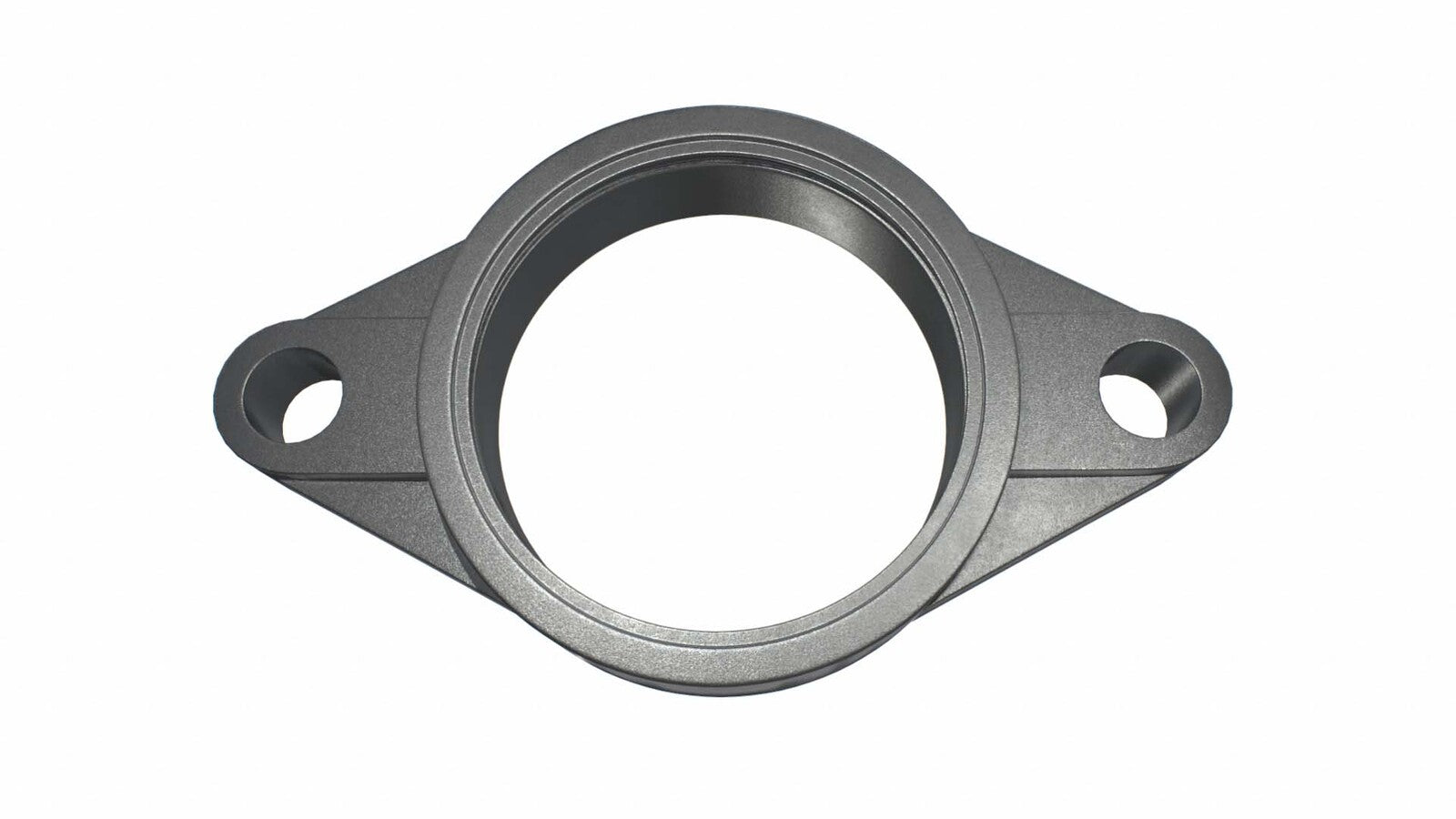

FYH LF200 is a lightweight oval 2-bolt flange bearing housing. Select the housing from the drop-down; each size has its own dimension set in the Model Details. These lightweight 2-bolt flange housings are supplied without an insert bearing. A complete unit such as BLF205 is the LF205 housing fitted with an SB205 insert bearing, which is ordered separately (see Related products).

Where this product is used

• Light conveyors and rollers
• Small fans and pumps
• Packaging and light machinery
• Limited-space installations

Features

• Lightweight housing for the SB set screw insert (complete unit BLF2xx), 200 series (diameter series code 2)
• Insert bearings for these housings: SB (set screw, lightweight) in all sizes, SA (eccentric collar, lightweight) in all sizes
• Housing numbers: LF203 to LF207 (5 sizes)
• Shaft diameter, metric: 12 to 35mm

Key specifications

Fitting and use

The housing is supplied without an insert bearing. Order the insert separately and lock it to the shaft in the way its own type requires: an SB insert locks to the shaft with set screws; an SA insert locks with an eccentric collar.

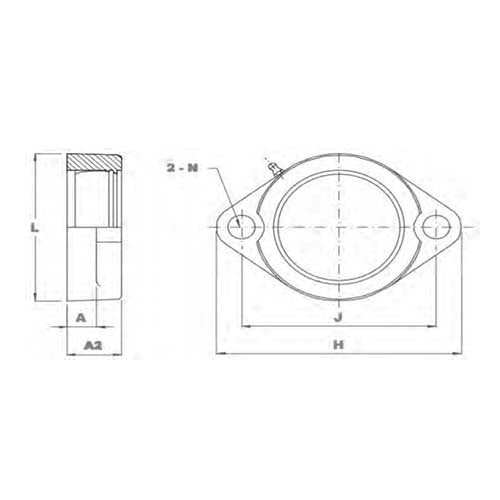

Mount the flange against a flat, rigid face and use the bolt size and bolt hole spacing J shown for the size. J is the bolt hole spacing and N the bolt hole diameter.

Choosing the right option

Match the housing to the insert bearing and the shaft. For example LF205 takes SB205 on a 25mm shaft.

Choose the metric size for a metric shaft; for an inch shaft pick the same housing and order the insert with the matching dash number (for example SB205-14).

The Bolt Size option is the mounting bolt for the housing unit tables (inch equivalent in the Model Details).

Not sure which insert or housing suits your shaft?

See also: SB200 metric set screw insert bearings, SB200 inch set screw insert bearings, SA200 metric eccentric collar insert bearings, SA200 inch eccentric collar insert bearings.
