INOX 304 eye bolt with nut and washers, M6 / 40
The price shown is for the box.
Available
INOX Eye Bolt with Nut and Washer - 304 Stainless Steel is a lifting eye bolt. The Eye Bolt with Nut and Washer, 304 Stainless Steel is a threaded eye bolt supplied with a nut and washer, so it can be fitted through a hole.
The range runs to 20 variants, covering sizes M6 to M12 and lengths 40mm to 150mm. Variants are supplied in packs of 5 to 10, depending on size. Made from 304 (A2) stainless steel, a standard austenitic grade with good everyday corrosion resistance. It is a sound choice away from the coast; in chloride-exposed settings, step up to 316 (A4). Metric sizes are written M followed by the nominal thread diameter in millimetres, so M10 is a 10mm thread.
Where this product is used
- Food-service and light food-handling equipment
- Outdoor structures away from the coast
- Rope, wire and cable attachment points
- Small sizes for enclosures, instruments and light fittings
- Indoor architectural and joinery work
- Tie-off and hanging points on equipment
Features
- Closed eye for rope, wire or shackles
- A2 (304) stainless steel for indoor, fresh water and general outdoor use
- Threaded shank screws into a tapped hole or takes a nut
- Metric thread sizes match the nuts, bolts and tapped holes in most Australian-supplied equipment
- Supplied in packs of 5 to 10
- Choice of 20 sizes, M6 to M12

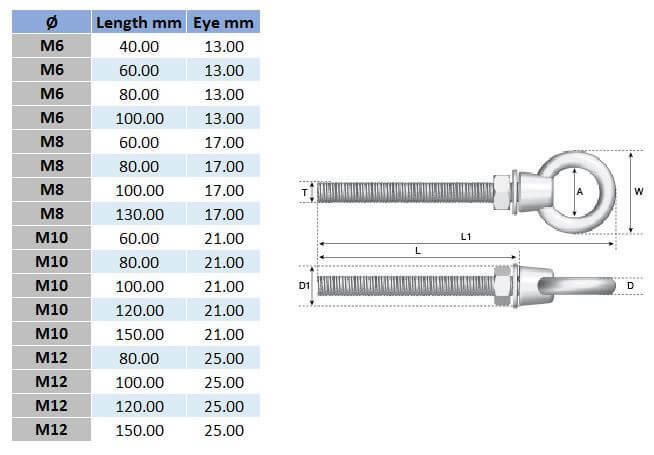

Key specifications
| Specification | Detail |
|---|---|
| Brand | INOX |
| Product | Eye Bolt with Nut and Washer |
| Type | Threaded eye bolt supplied with a nut and washer, so it can be fitted through a hole |
| Material | A2 (304) stainless steel |
| Thread system | Metric |
| Key features | Closed eye for rope, wire or shackles, Threaded shank screws into a tapped hole or takes a nut |
| Sizes | M6 to M12 |
| Fitting tip | Use anti-seize on the thread to reduce galling |
| Lengths | 40mm to 150mm |
| Magnetic response | Generally non-magnetic (austenitic), cold-worked parts can show weak magnetism |
| Environment | Indoor, fresh water and general outdoor use |
| Number of variants | 20 |
| Pack size | 5 to 10, by size |
Choosing the right option
Choose the size by the thread and length shown on the variant. Eye bolts are rated for a straight pull in line with the shank, and the rating drops sharply for angled loads. For lifting, use a rated lifting product and a qualified rigger.
Do not use it to lift or suspend people or loads unless it is marked with a working load limit (WLL). Rigging and lifting hardware should be selected, inspected and used in line with your site procedures and the relevant Australian Standards, and a qualified rigger should be consulted for any lift.
| Option | Part number | SKU |
|---|---|---|
| M6 / 40 | A0087946 | |
| M6 / 60 | A0087947 | |
| M6 / 80 | A0087948 | |
| M6 / 100 | A0087949 | |
| M8 / 60 | A0087950 | |
| M8 / 80 | A0087951 | |
| M8 / 100 | A0087952 | |
| M8 / 130 | A0087953 | |
| M10 / 60 | A0087954 | |
| M10 / 80 | A0087955 | |
| M10 / 100 | A0087956 | |
| M10 / 120 | A0087957 | |
| M10 / 150 | A0087958 | |
| M12 / 80 | A0087959 | |
| M12 / 100 | A0087960 | |
| M12 / 120 | A0087961 | |
| M12 / 150 | A0087962 | |
| M10 / 110 | A0212424 | |
| M12 / 110 | A0212425 | |
| M6 / 50 | A0212426 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Eye Bolt with Nut and Washer - 304 Stainless Steel: M6 / 40
SKU: A0087946 | Model: EBOA2M6X40
EBOA2M6X40: M6 x 40mm eye bolt with nut and washer, 304 Stainless Steel. Sold in a box of 10. Suits rope, wire and cable attachment points.
