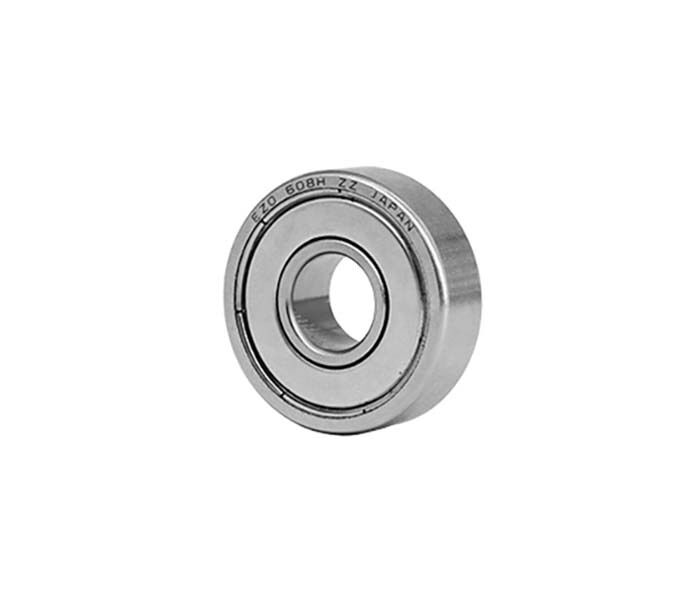

EZO Stainless Steel Metal Shielded (ZZ), 3 x 10 x 4

This EZO range covers 7 stainless steel miniature single row deep groove ball bearings, shielded (ZZ), from 3 to 9mm bore, with outer diameters of 10 to 26mm and widths of 4 to 8mm. Select the size from the drop-down: each size has its own bearing number and dimensions in the Model Details. The range also includes the SS609-ZZ (9mm bore).

Deep groove bearings are the most widely used ball bearing type. They carry radial loads and axial loads in both directions, run at high speed and need no adjustment. The rings and balls are stainless steel, which resists corrosion much better than standard bearing steel in damp or mildly corrosive conditions. The two pressed steel shields (ZZ) hold the grease in and keep larger particles out without adding seal friction.

Where this product is used

• Equipment exposed to moisture, humidity or mild corrosive conditions
• Light machinery in food, beverage and packaging plants (check the cleaning agents suit the material)
• Small motors, instruments and light automation

Features

• Two pressed steel shields (ZZ) hold the grease in and keep larger particles out without touching the inner ring, so friction stays low and speed capability high
• Stainless steel rings and balls resist corrosion much better than high carbon chromium steel, for use in damp or mildly corrosive conditions
• Bearing numbers: 7, from SS623-ZZ to SS629-ZZ
• Bore d: 3 to 9mm

Key specifications

Choosing the right option

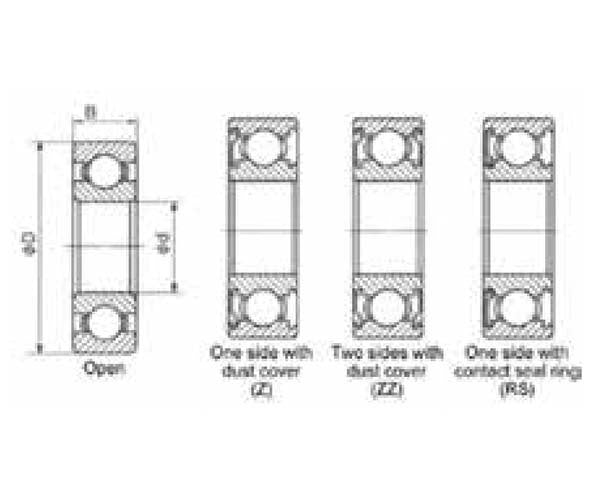

Pressed steel shields (ZZ) retain the grease and keep larger particles out without touching the inner ring, so friction stays low and speed capability high. A shield is not a seal: fine dust and moisture can still enter, so choose 2RS where dust, splashes or damp are present.

The rings and balls are martensitic stainless bearing steel. It resists corrosion far better than standard high carbon chromium steel, but not as well as 304 or 316 stainless, so it is not suited to seawater, acids or continuous immersion. Match the bearing to the fluids and cleaning agents in the application.

Check the load and speed against the figures for your size before ordering and apply a suitable safety factor.

Press on the ring that is being fitted, not the other ring or the balls: force goes through the side face of the inner ring on a shaft and through the outer ring in a housing.

Shielded bearings are lubricated at the factory and built for inner ring rotation. Do not wash them or heat them before mounting, and do not rely on them for high speed outer ring rotation.

Also available from EZO: the same stainless steel 620 series range with rubber seals (2RS), high carbon chromium steel C3 clearance bearings in the 620 series.
