Ezylok LP1 Louvred Panel & Size 4, 5, 6 Bins, Blue, 511474
Available

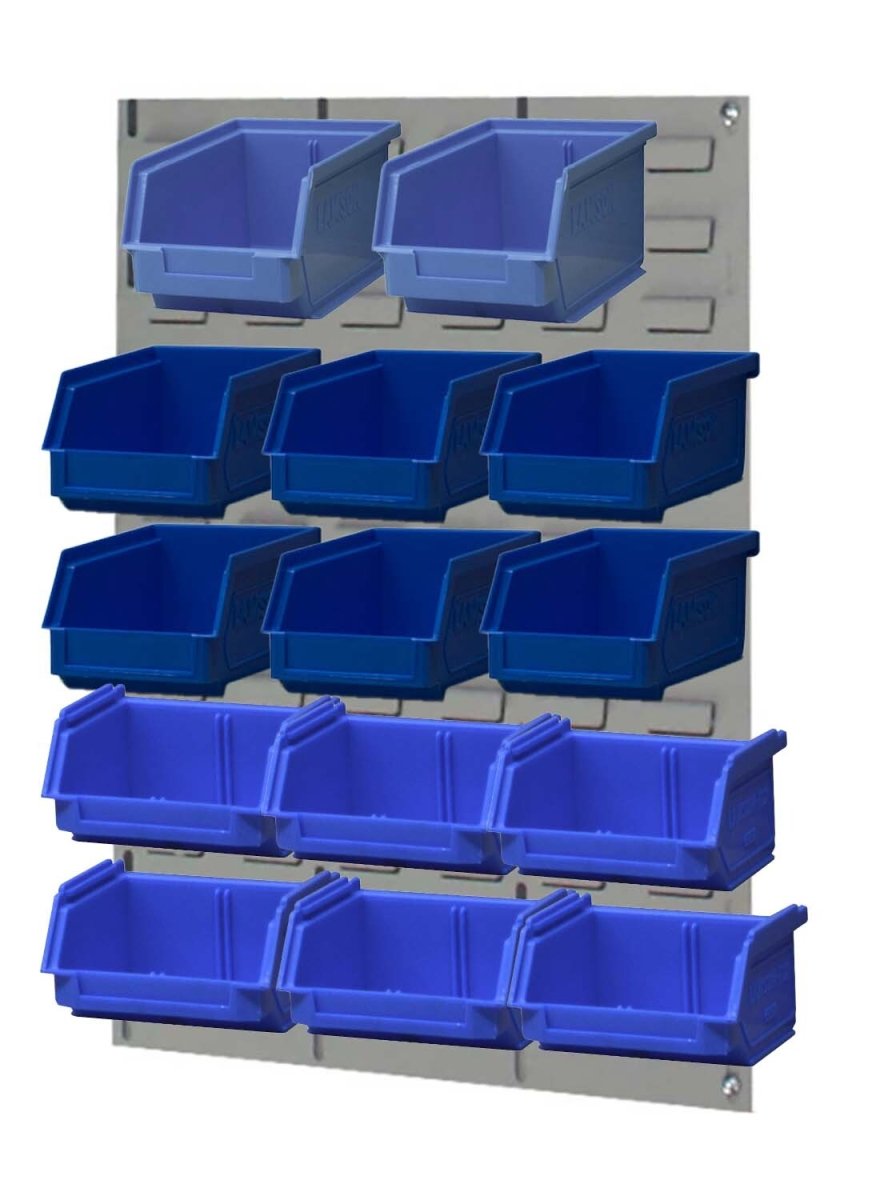

The Ezylok LP1 louvred panel with Size 4, 5 and 6 plastic bins is Australian Made. Listed under part code 511474: the LP1 louvred panel and Size 4, 5 and 6 bins. The bins are Size 4 x 2, Size 5 x 6 and Size 6 x 6.
Panel and bins: the panel is 324mm wide and 635mm high; Size 4 150mm x 230mm x 125mm; Size 5 100mm x 165mm x 80mm; Size 6 100mm x 95mm x 55mm (bins are width x depth x height).

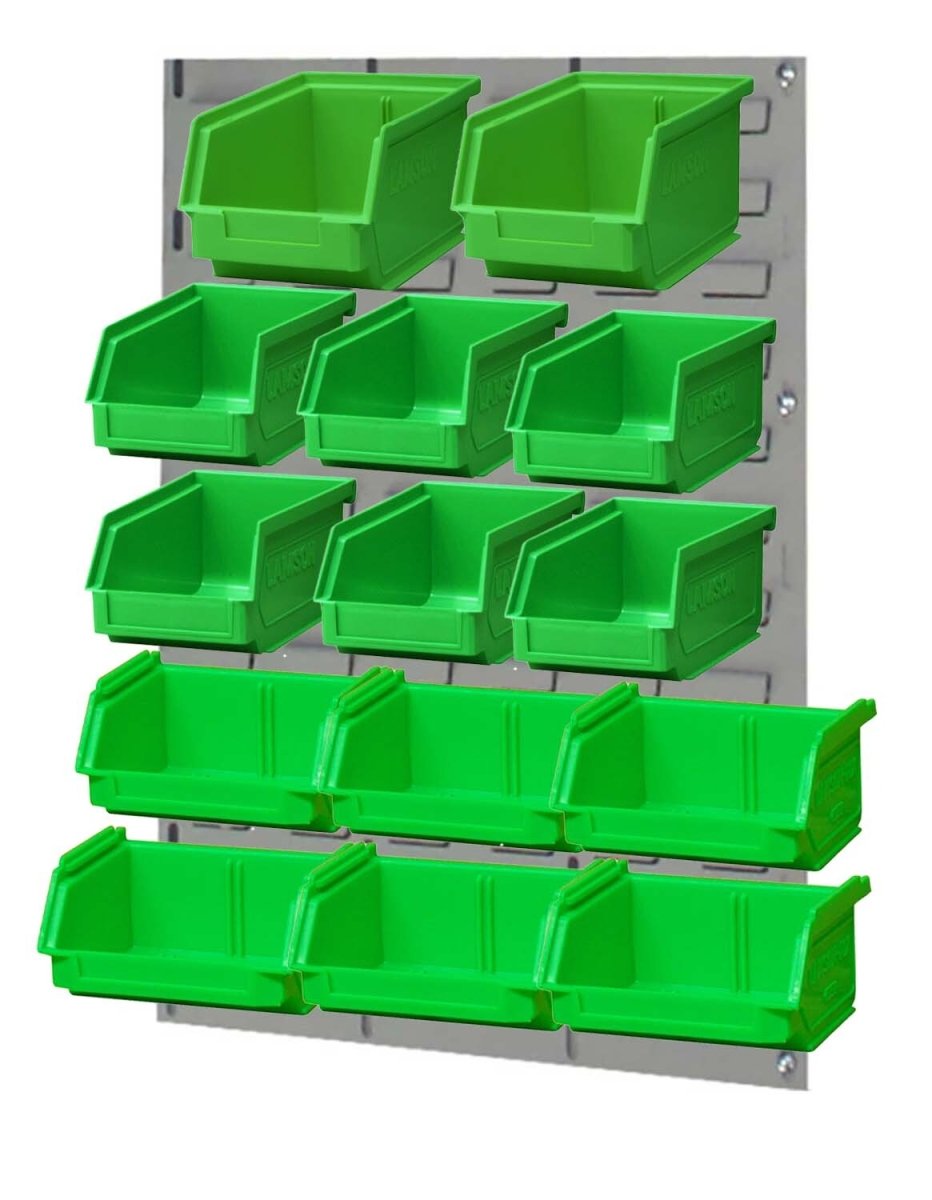

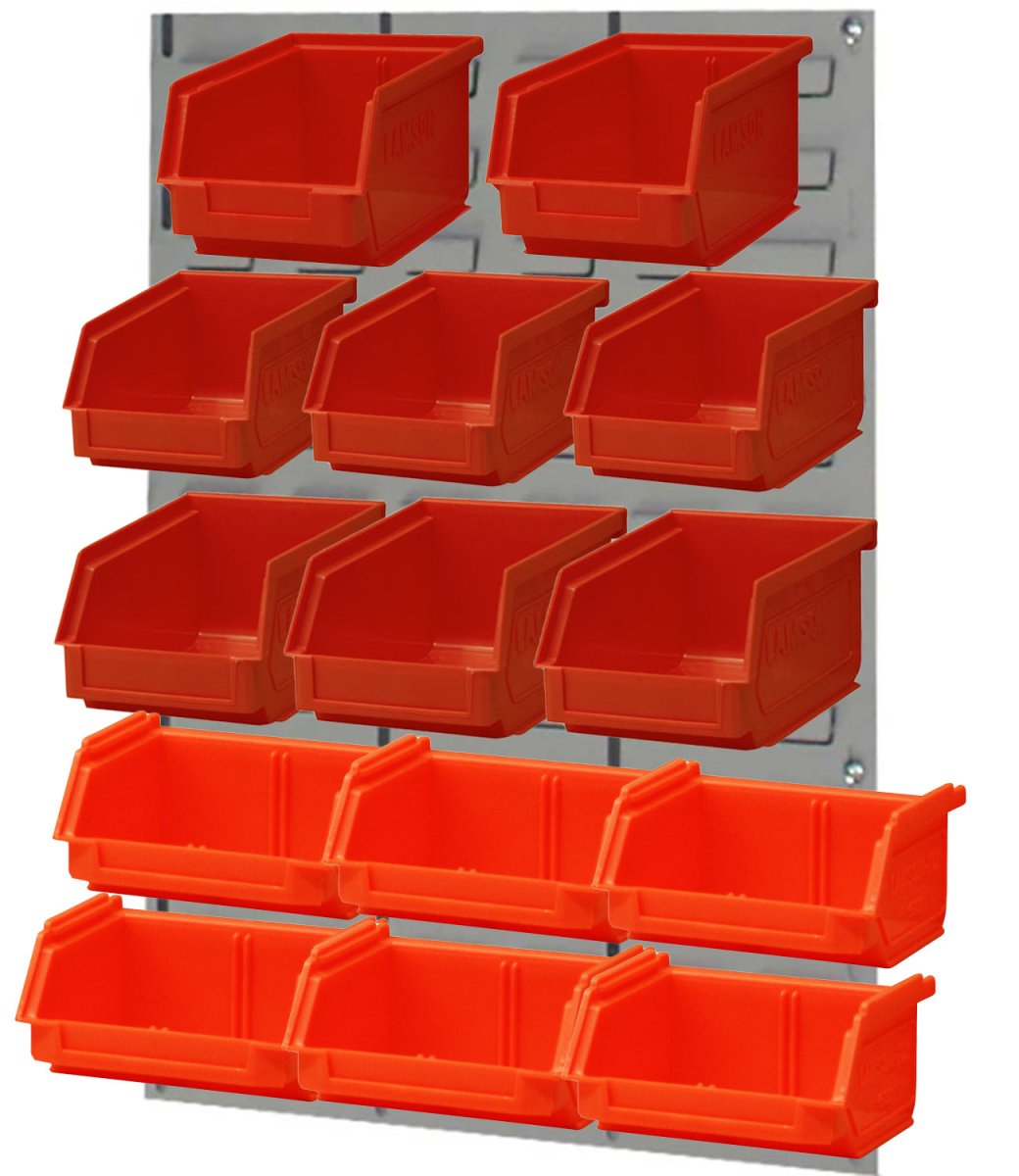

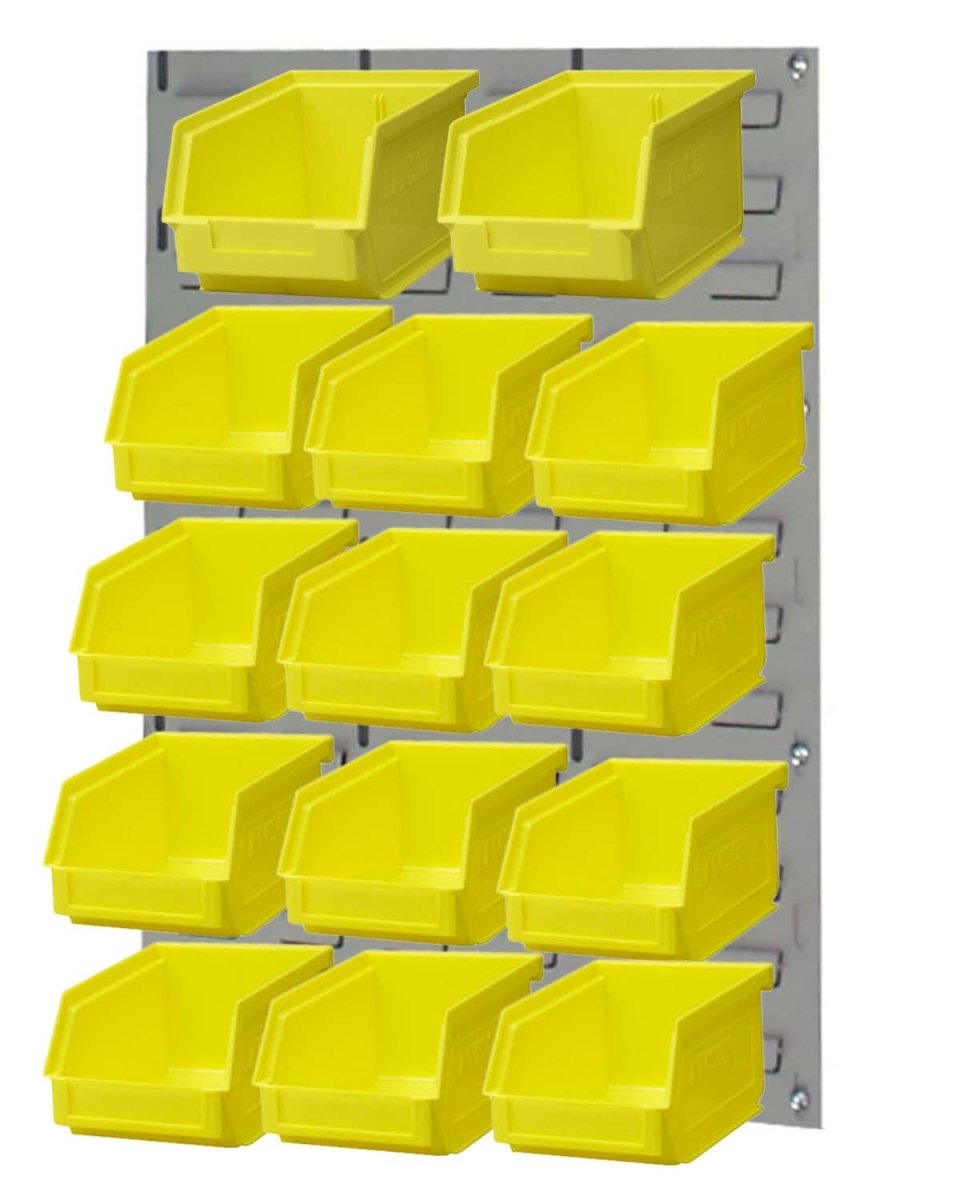

The bins come in Blue, Green, Red and Yellow for coding, sorting and identification, and the panel is the backboard on which Lamson plastic storage bins hang. The bins have a semi open front.
Where this product is used
- Bins for field service parts storage
- Easy picking access and visual stock control of small parts
- Panel fixing to walls, shelving ends and columns
Features
- Australian Made
- Listed with Size 4 x 2, Size 5 x 6 and Size 6 x 6 bins
- Bin dimensions, width x depth x height: Size 4 150mm x 230mm x 125mm; Size 5 100mm x 165mm x 80mm; Size 6 100mm x 95mm x 55mm

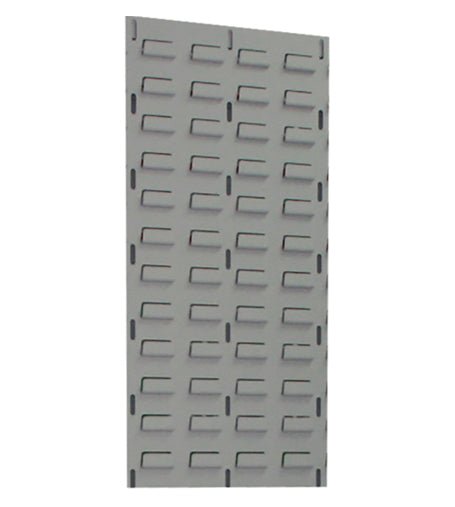

- LP1 panel: 1.6mm steel, powder coated APO grey, 324mm wide and 635mm high
- Panel carries 8kg per louvre/tongue
- Panels can be mounted together to cover a larger area
Common specifications
| Specification | Detail |
|---|---|
| Kit | Ezylok LP1 louvred panel with Size 4, 5 and 6 plastic bins |
| Part code | 511474 |
| Panel | LP1, part code 511470, 324mm wide and 635mm high |
| Panel steel and loading | 1.6mm thick, powder coated APO grey; 8kg per louvre/tongue |
| Pieces | Size 4 x 2, Size 5 x 6, Size 6 x 6 |
| Colours listed | Blue, Green, Red, Yellow and Mixed |
| Origin | Australian Made |
Key specifications
| Bin size | Pieces | Width x depth x height |
|---|---|---|
| Size 4 | 2 | 150mm x 230mm x 125mm |
| Size 5 | 6 | 100mm x 165mm x 80mm |
| Size 6 | 6 | 100mm x 95mm x 55mm |
Selecting the right option
Choose the bin colour: Blue, Green, Red or Yellow, or the Mixed colour version. For other bins on the same panel see LP1 with Size 6 bins, LP1 with Size 5 bins and LP1 with Size 4 bins. The louvred panel alone is on the Louvred Panel page.
Related products
See also: Ezylok louvred panels LP1 to LP5, Ezylok Size 4 plastic bins, Ezylok Size 5 plastic bins, LP1 with Size 4 bins and LP3 with a Size 4, 5, 6 bin mix.
