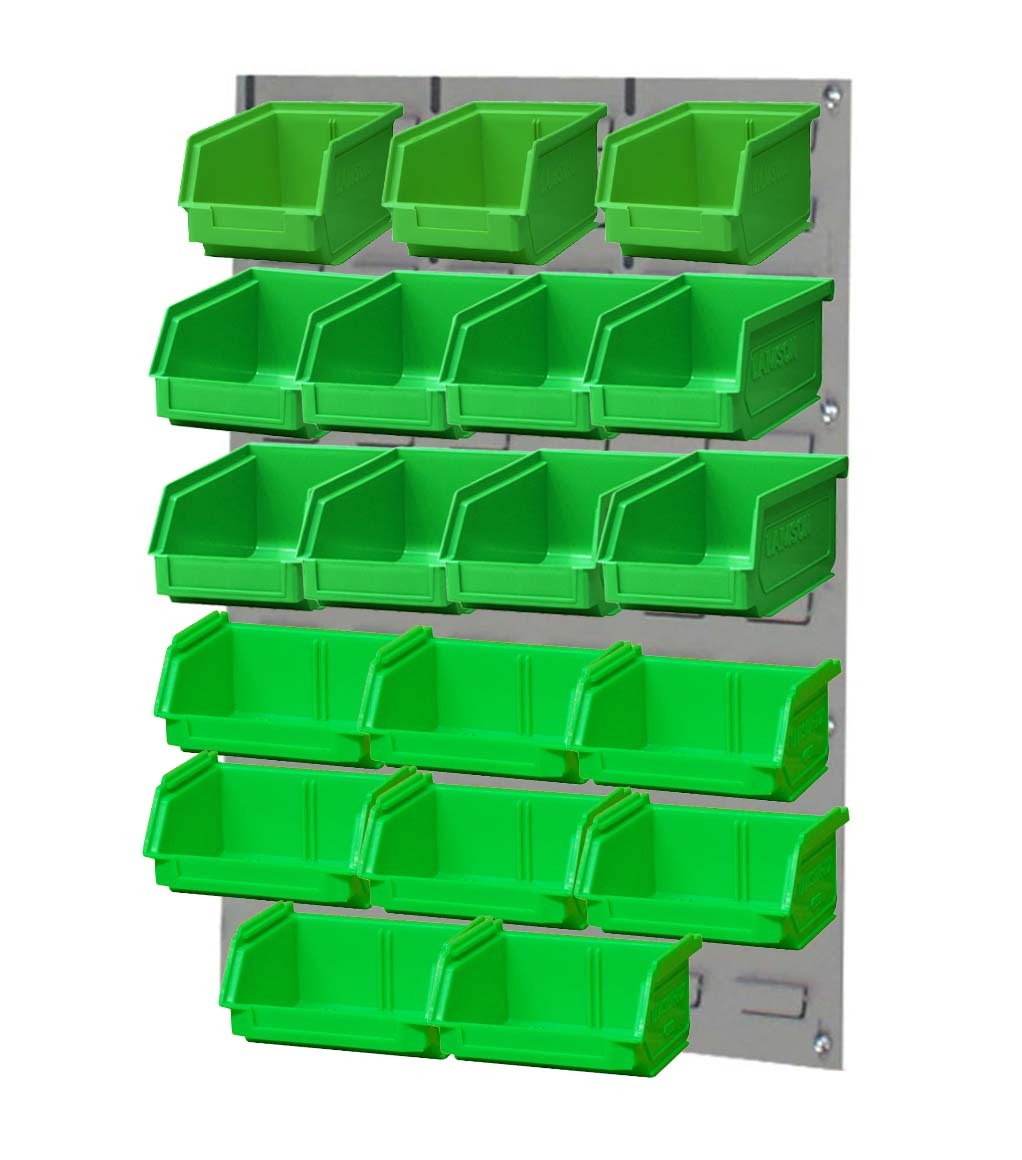

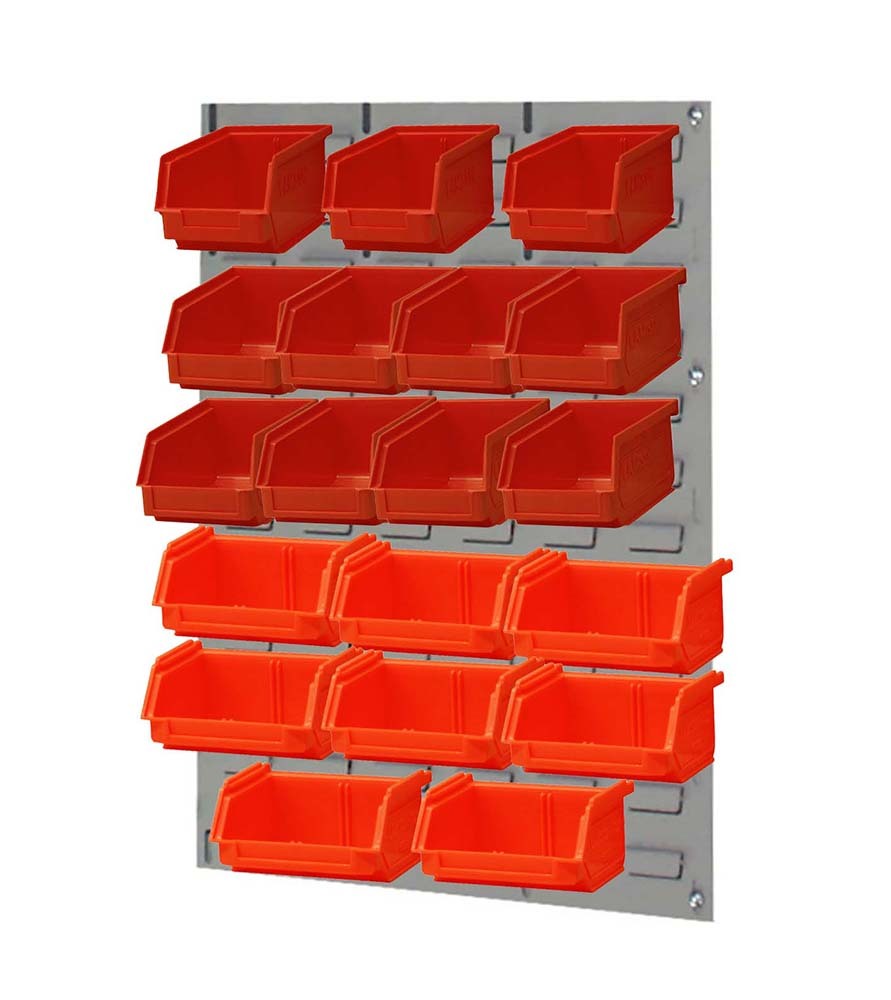

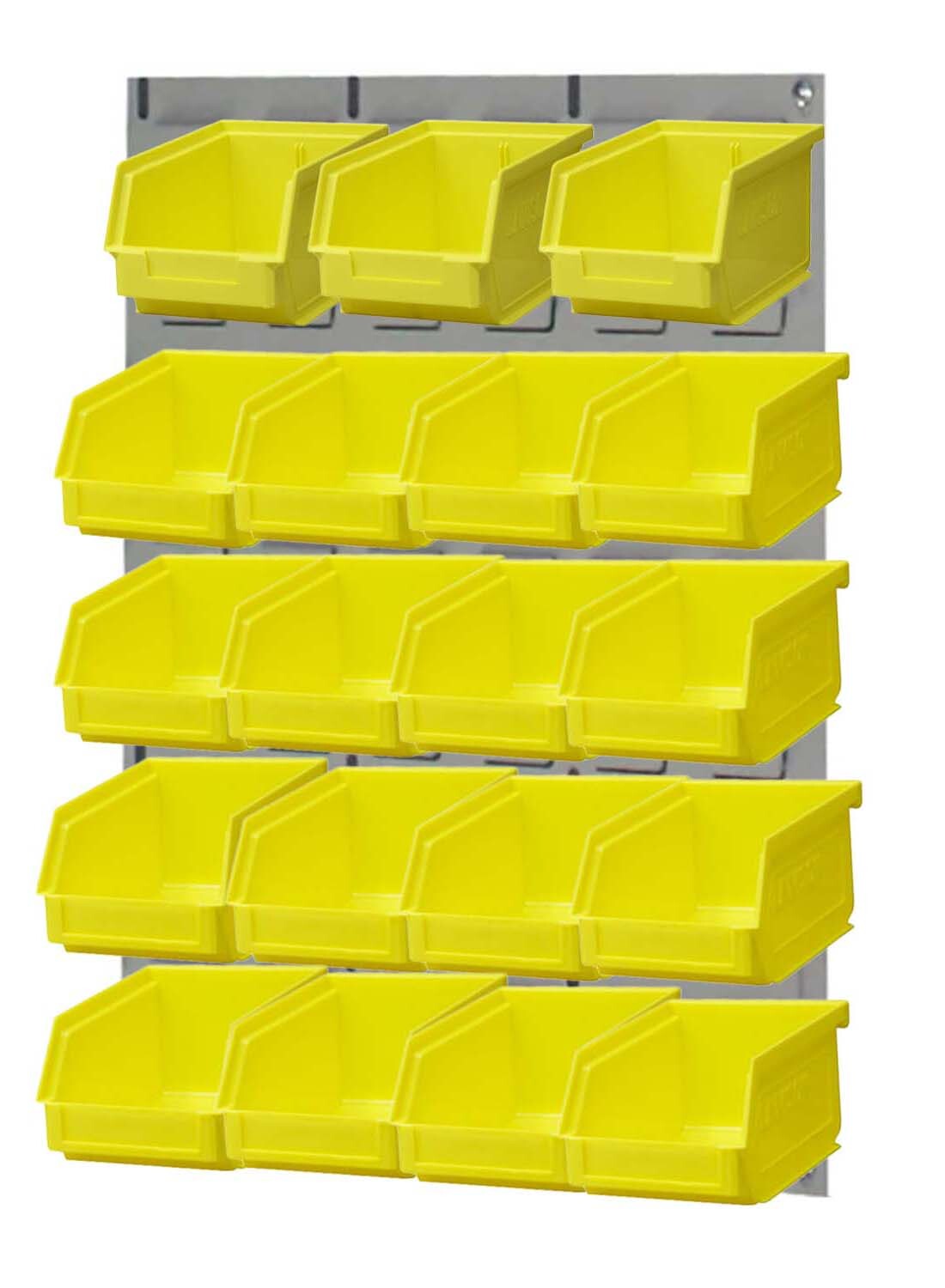

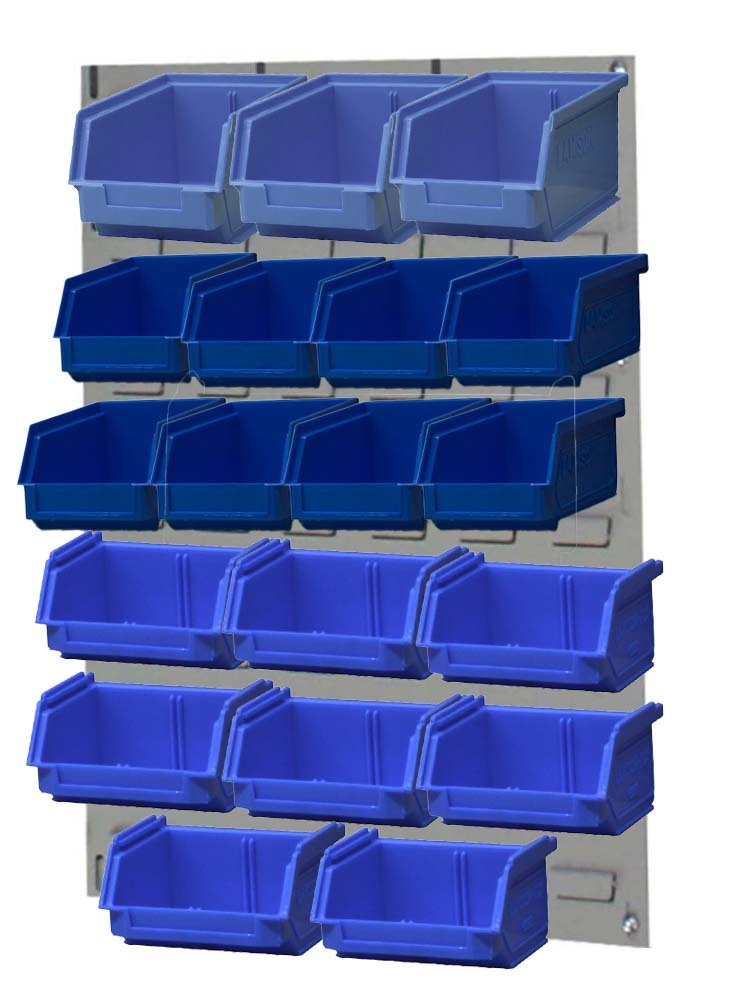

Ezylok LP2 Louvred Panel And Size 4, 5 & 6 Plastic Bin

About Ezylok Louvred Panel

• The Ezylok Louved Panel Range is the economical alternative to shelving, drawer storage or cupboard.
• The Ezylok Louvred Panel range can be fixed to any flat vertical surface (walls, shelving ends, columns, free-standing racks or trolleys).
• Offers practical utilization of valuable wall space.
• The Ezylok range provides the ability to achieve high-density storage with easy picking access and visual stock control.
• The Ezylok Louvred Panel range offers a versatile system of storage for items not particularly suitable for shelves and drawers such as fan belts, leads, rolls and coils of wire or tube and also awkward long items such as rod, piping or conduits.
• Each Louvred panel is designed for most industrial applications.
• Load capacity = 8 kg's per louver/tongue.

About Ezylok Plastic Bin

• The Ezylok Plastic Bin Range is designed for versatile and efficient high-density storage.
• The design of the Ezylok bin range makes for a visually pleasing and efficient storage system providing easy access to contents (without the need to remove from the shelf) for quick and easy stock identification, picking, and control

"

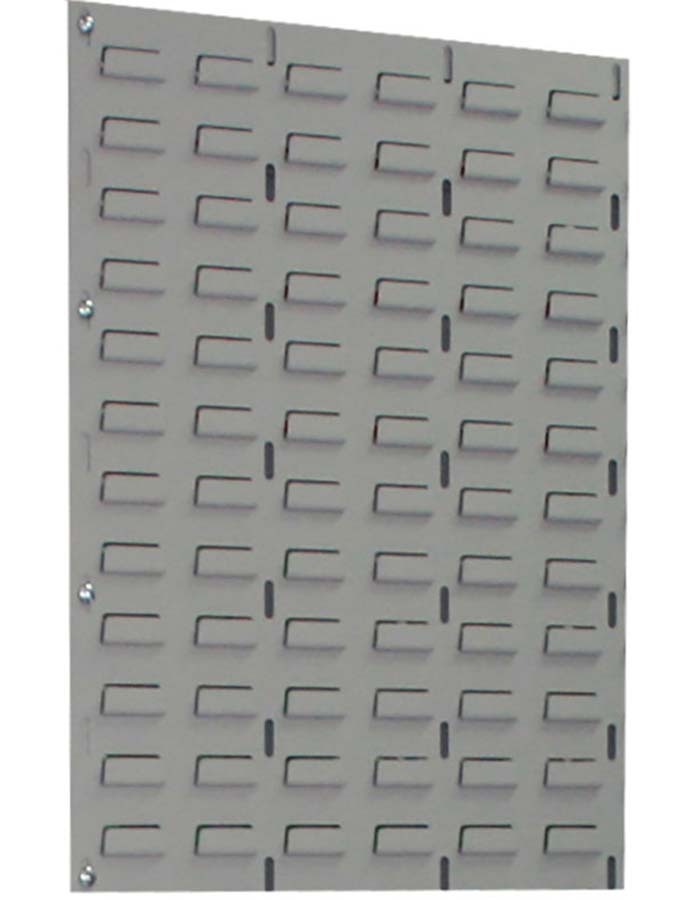

Specification LP2 Louvred Panel

• Material: Pressed Steel Panels
• Maximum Loading: Up to 1000kgs per Free Standing Rack
• Dimension: 475mm (W) x 625mm (H)

Specification Size 4 Part Bin

• Dimension: 150mm W x 230mm (D) x 125mm (H)
• Maximum Loading: 9kg
• Panel Density: 19
• Available Colour: Blue, Green, Red and Yellow

Specification Size 5 Part Bin

• Dimension: 100mm W x 165mm D x 80mm H
• Maximum Loading: 5kg
• Panel Density: 35
• Available Colour: Blue, Green, Red and Yellow

Specification Size 6 Part Bin

• Dimension: 100mm (W) x 95mm (D) x 55mm (H)
• Maximum Loading: 1kg
• Panel Density: 52
• Available Colour: Blue, Green, Red and Yellow

Features

• Multiple colours for colour coding of stock.
• Locates securely.
• Very strong compared to other brands.
• Stackable with very good stability.
• Easy to locate.
• Extremely economical - eliminates the need for shelving. Higher density of storage due to no wasted space between shelves.
• Suitable for food processing applications.
• Can be sterilized by steam or autoclaving. Impervious to most industrial oils and acids.
• Great strength and durability. Will not rust, dent, chip or break.
• Able to assist in picking and stock control.
• Can be easily subdivided for higher density storage and flexibility.
• Raises the front height of the container, while maintaining visual stock identification.
• Offers dust protection, while maintaining visual stock identification.
• Suits and operates quietly on conveyor and carton live storage applications.
