Finer Power flexible Pin Coupling Nitrile Element Set H125E
Available

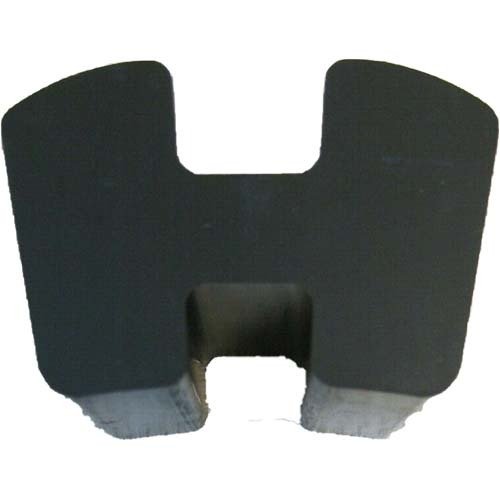

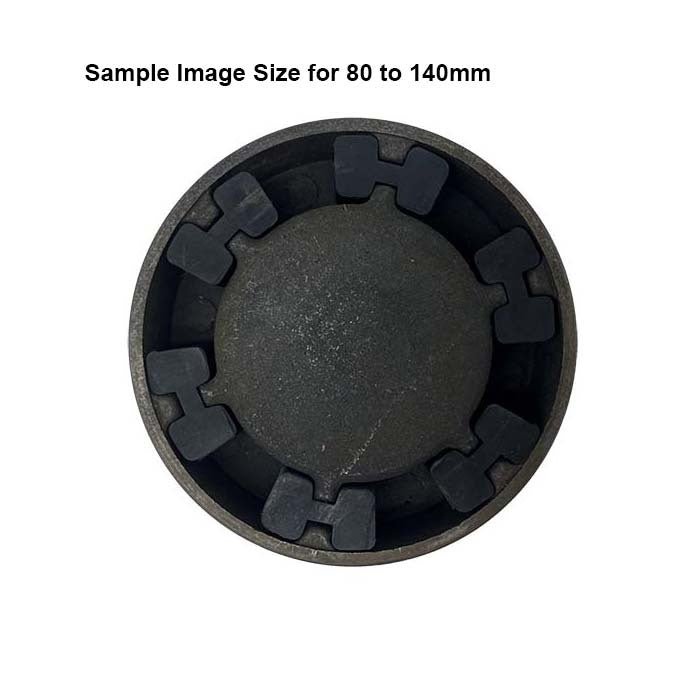

Nitrile (NBR) element sets for flexible pin couplings, in sizes H58 to H140. Flexible pin couplings are made of cast iron halves joined by flexible synthetic rubber (NBR) elements. Because the coupling is torsionally flexible, it moves critical torsional vibrations away from the operating area of the machine. The metal pins and flexible elements are designed so that no wear occurs when the coupling is fitted properly. The three-part design plugs together, which makes it simple to replace the elements.
The elements are the part that takes up shock and vibration. Replace them as a set when they wear. The halves are sold separately.
Where this product is used
- Motor to pump, fan and compressor connections
- Gearbox and conveyor drives
- Drives with torsional vibration or shock loading
- General machinery drives that need a plug-in coupling
Features
- Nitrile (NBR) flexible elements, supplied as a set
- Plug-in design makes element replacement simple
- Sizes H58 to H140
- Torque and maximum speed for every size
- Matches the female and male pilot bore halves of the same size
Key specifications
| Specification | Detail |
|---|---|
| Sizes | H58 to H140 (7 models) |
| Material | Nitrile rubber (NBR) |
| Torque | 19 to 360 Nm |
| Maximum speed | 4,900 to 7,500rpm |
| Maximum bore D1 | 19 to 60mm |
| Maximum bore D2 | 24 to 60mm |
Sizes available
| Size | Torque (Nm) | Max rpm | D1 max (mm) | D2 max (mm) | DA (mm) | ND1 (mm) | ND2 (mm) | NL1/NL2 (mm) | S (mm) | U1 (mm) | U2 (mm) | LG (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H58 | 19 | 7,500 | 19 | 24 | 58 | 58 | 40 | 20 | 3 | 20 | 8 | 43 |
| H68 | 34 | 7,000 | 24 | 28 | 68 | 68 | 50 | 20 | 3 | 20 | 8 | 43 |
| H80 | 60 | 6,000 | 30 | 38 | 80 | 80 | 68 | 30 | 3 | 30 | 10 | 63 |
| H95 | 100 | 5,500 | 42 | 42 | 95 | 76 | 76 | 35 | 3 | 30 | 12 | 73 |
| H110 | 160 | 5,300 | 48 | 48 | 110 | 86 | 86 | 40 | 3 | 34 | 14 | 83 |
| H125 | 240 | 5,100 | 55 | 55 | 125 | 100 | 100 | 50 | 3 | 36 | 18 | 103 |
| H140 | 360 | 4,900 | 60 | 60 | 140 | 100 | 100 | 55 | 3 | 34 | 20 | 113 |
Choosing the right option
Choose the size from the torque and the shaft sizes, and apply a service factor for the type of machine. The ratings and dimensions are the same for every part of a size.
A complete coupling needs one female half, one male half and one set of elements.
Fit the halves on the shafts, then plug them together with the elements in place. Align the two shafts as closely as you can before fitting the coupling, and check the alignment again once the coupling is fitted. Good alignment gives the longest life, whatever the coupling type.
| Option | Part number | SKU |
|---|---|---|
| 19 | H58E | A0152794 |
| 34 | H68E | A0152795 |
| 60 | H80E | A0152796 |
| 100 | H95E | A0152797 |
| 160 | H110E | A0152791 |
| 240 | H125E | A0152792 |
| 360 | H140E | A0152793 |
